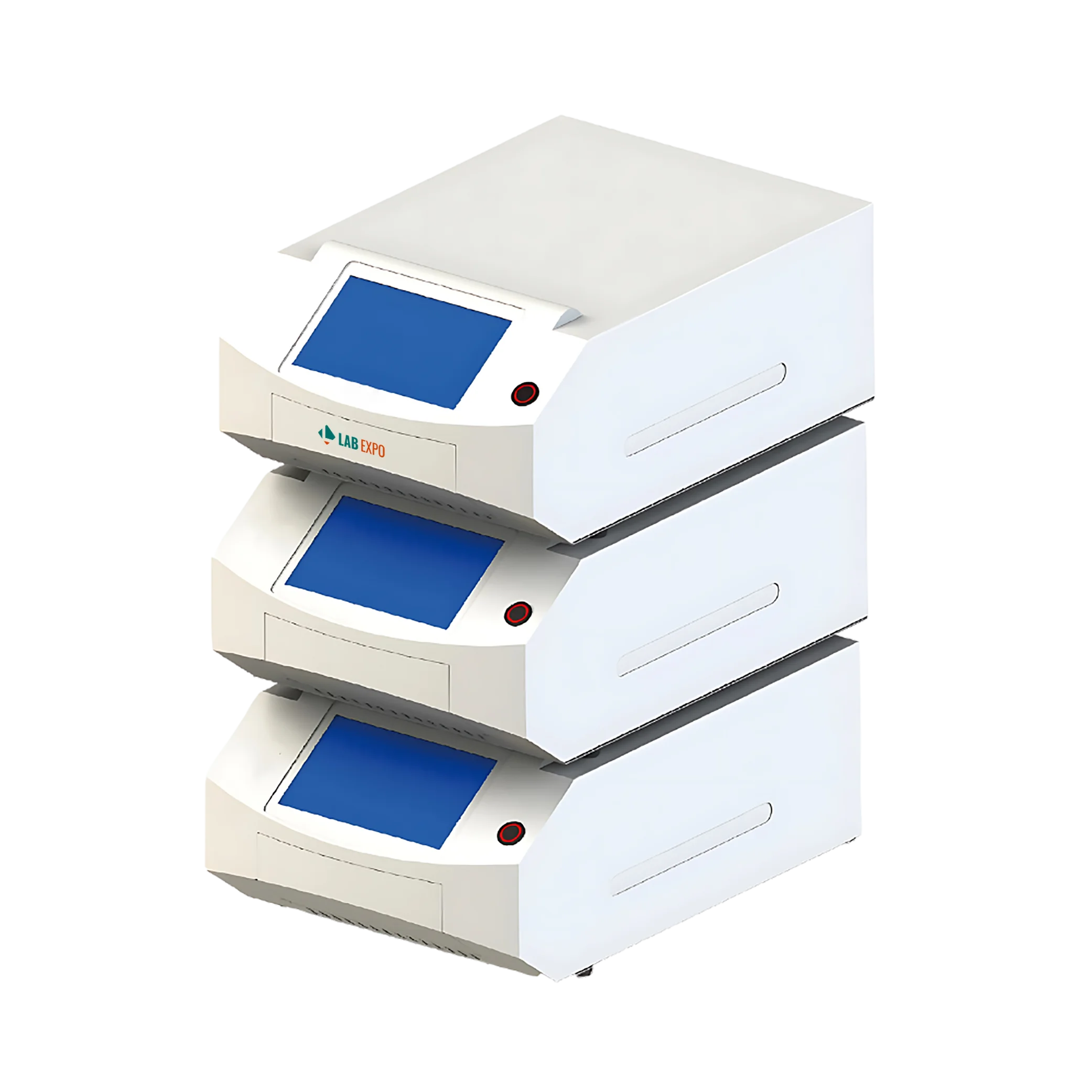

Advanced Thermal Cycler LE-ATC203 includes 114 × 78 mm flat panel sample stage module, supporting multiple PCR chips and slides. It delivers rapid thermal cycling with heating and cooling rates of up to 5°C per second. This system includes an automatic entry and exit mechanism, along with alloy modules that enhance thermal conductivity and ensure consistent temperature uniformity. Our Thermal Cycler features front and rear air inlets, ensuring efficient space utilization and optimizing the overall design.
$10,421.00 $ 8684
Specifications
| Sample Stage Module | Flat panel module (114 × 78 mm) |
| Compatible Plates | Digital PCR chip and slides |
| Temperature Control Modes | Analog tube mode, block/sample stage mode |
| Temperature Range | 0℃ to 99.9℃ |
| Maximum Heating Range | 5℃ / sec |
| Maximum Cooling Rate | 5℃ / sec |
| Temperature Uniformity | ≤0.2℃ |
| Temperature Accuracy | ≤0.1℃ |
| Temperature Display Resolution | 0.1℃ |
| Variable Temperature Rate Range | 0.1℃ to 0.4℃ |
| Heated Lid Type | Gland type with adaptive height |
| Heated Lid Temp | Adjustable from 30℃ to 110℃ |
| Heated Lid Heating Rate | ≤1 min 40 sec (to 105℃) |
| Lid Auto Close Function | Engages below 30°C or after program completion |
| Program Storage Capacity | Up to 15,000 Programs |
| Max Program Steps | 30 steps, with nested loop support |
| Cycle Count Limit | Up to 10,000 cycles |
| Time Increments/Decrements | 1 to 120 sec |
| Temperature Increments/Decrements | 0.1℃ to 10℃ |
| Power-Off Protection | Yes |
| Auto Pause | Yes |
| Program Report | Detailed run log for analysis |
| PC Connectivity | Yes |
| Communication Interface | USB |
| Display | 7-inch capacitive touch screen, compatible with gloves |
| Power Consumption | 550 Watt |
| Power Supply | 85V to 265V, 50/60 Hz |
| Dimensions | 260 × 410 × 245 mm |
| Weight | 7.3 kg |
Features
Applications
Advanced Thermal Cycler LE-ATC203 is essential in molecular biology, clinical diagnostics, forensic science, agricultural studies, and pharmaceutical research, supporting applications such as DNA amplification, gene expression profiling, mutation analysis, pathogen detection, and cloning.
Lab Expo offers Advanced Thermal Cyclers with a versatile block that accommodates many samples, allowing for efficient and flexible PCR processing. They provide a broad temperature range, ensuring precise control for various thermal cycling protocols. Our thermal cyclers feature six high-performance Peltier modules, ensuring durability and an impressive cycle life. They operate on the latest Windows OS, offering seamless control, printing, and data storage through a USB interface. Our cyclers feature high-definition LCD ensuring clear visibility for easy monitoring.
