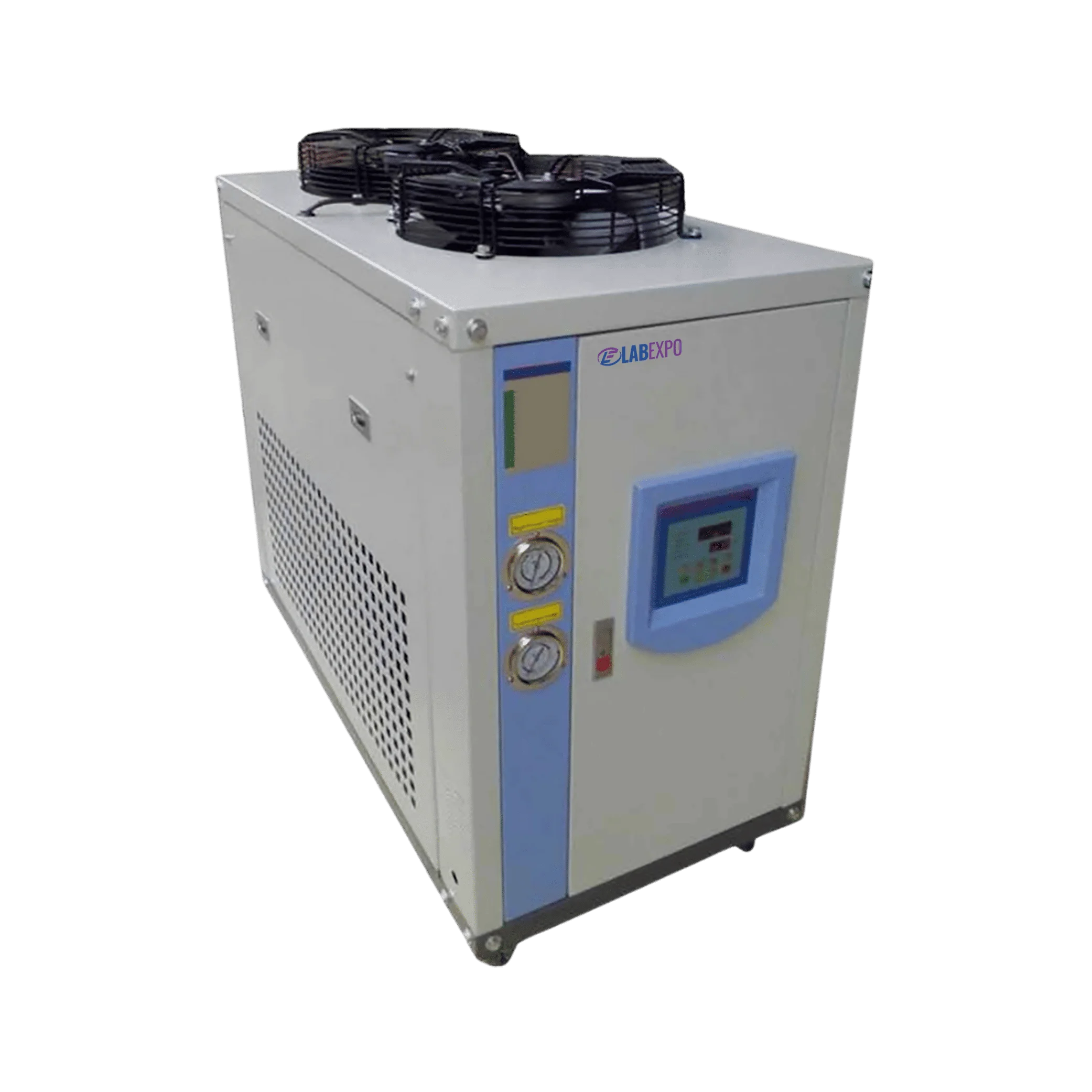

Air Cooled Chillers 29-ACR102

Air Cooled Chiller 29-ACR102 are energy saving and highly efficient chillers. In the case of emergency situations, there is provision to cut off main power immediately. These chillers give stable performance and are leakage proof. These air cooled chillers comes in wide range of compressors from 3.3 kW to 22.5 kW for use. They are completely safe device and are compact in structure for outdoor installation.

Specifications

Water tank capacity 155 L
Cooling capacity 20540 W, 77300 BTU / hr
Flow rate 100 to 200 L / Min
water pump 1 HP, 0.75 kW
Refrigerant type R22
Compressor motor 6 kW, 8 HP
Condenser fan flow rate 7800 CHM
Fan diameter 450 mm × 2 set
Voltage/Base 380V to 400 V / 3 Phase (50 Hz to 60 Hz)
Running current 13 Amp
Insulation material Poly-foam type rubberized tube insulation
Dimension (L × W × H) 1380 × 750 × 1450 mm
Net weight 320 kg

Features

  • Cooling capacity 20540 W with 155 L water tank
  • Flow rate 100 to 200 L/min driven by 0.75 kW pump
  • 6 kW compressor motor operating with R22 refrigerant
  • PID temperature controller with plus or minus 1 C accuracy
  • Poly-foam insulation with emergency power cutoff and indicator light

Applications

FunctionImplementation
Process line cooling20540 W capacity removes heat from production equipment
Air dehumidificationRefrigeration system supports moisture reduction during cooling
Coolant circulation155 L tank and defined flow rate maintain continuous fluid movement
Temperature stabilizationPID controller regulates stable cooling setpoint
Emergency condition controlPower cutoff and indicator respond to abnormal situations
