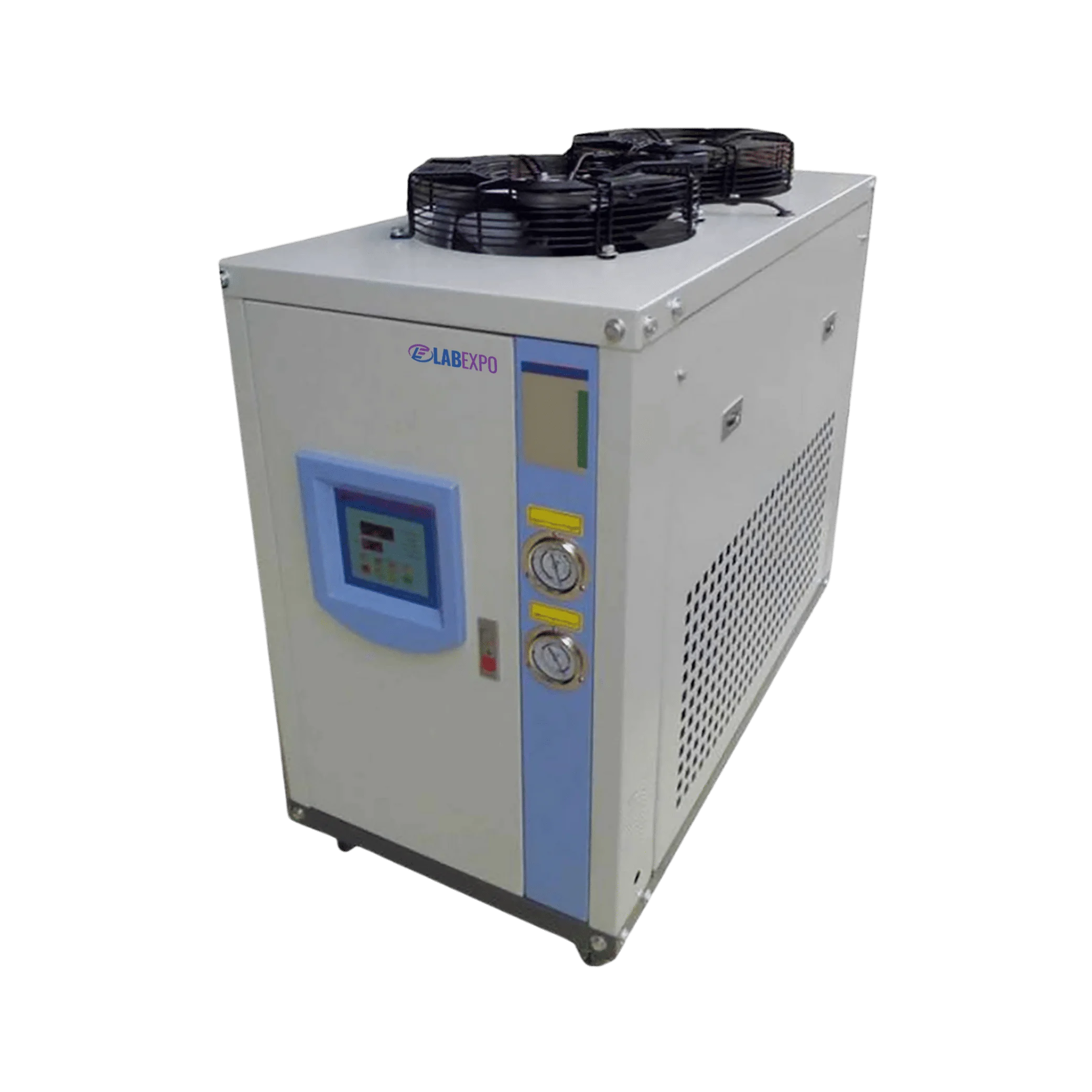

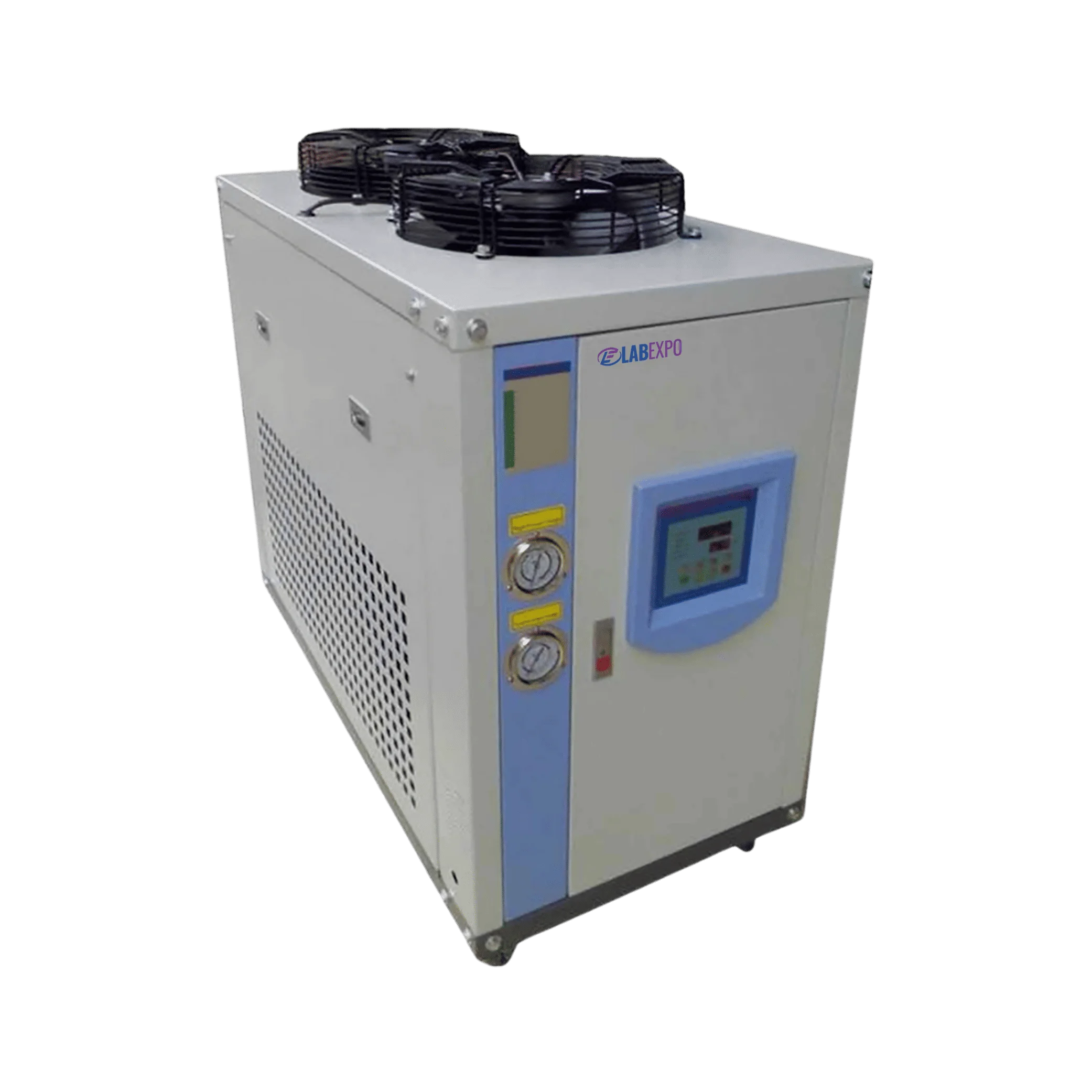

Air Cooled Chiller 29-ACR103

Air Cooled Chiller 29-ACR103 are energy saving and highly efficient chillers. In the case of emergency situations, there is provision to cut off main power immediately. These chillers give stable performance and are leakage proof. These air cooled chillers comes in wide range of compressors from 3.3 kW to 22.5 kW for use. They are completely safe device and are compact in structure for outdoor installation.

Specifications

Water tank capacity 200 L
Cooling capacity 28400 W, 97000 BTU / hr
Flow rate 100 to 200 L / Min
water pump 1 HP, 0.75 kW
Refrigerant type R22
Compressor motor 7.5 kW, 10 HP
Condenser fan flow rate 9200 CHM
Fan diameter 500 mm × 2 set
Voltage/Base 380V to 400 V / 3 Phase (50 Hz to 60 Hz)
Running current 15 Amp
Insulation material Poly-foam type rubberized tube insulation
Dimension (L × W × H) 1480 × 750 × 1450 mm
Net weight 420 kg

Features

  • Cooling capacity 11324 W with 55 L water tank
  • Flow rate 50 to 100 L/min driven by 0.37 kW pump
  • 3.3 kW compressor motor using R22 refrigerant
  • PID temperature controller with plus or minus 1 C accuracy
  • Poly-foam insulation with emergency main power cutoff and indicator alert

Applications

FunctionImplementation
Process line cooling11324 W capacity removes heat from production systems
Air dehumidification supportRefrigeration cycle reduces moisture during cooling
Continuous fluid circulation55 L tank and defined flow rate maintain coolant movement
Temperature regulationPID controller maintains stable set conditions
Emergency protectionPower cutoff and indicator light manage abnormal situations

Catalog

Air Cooled Chiller 29-ACR103 Catalog

Related Models Of Air Cooled Chiller

Lab Expo Air Cooled Chiller are energy-efficient and dependable, with features like leak-proof operation and consistent performance. They provide a wide variety of compressors and have a small design appropriate for outdoor installation. These contain poly foam rubberized tube insulation and use R22 as a refrigerant. They're built of stainless steel for durability, and a PID temperature controller ensures precision. Our Air Chiller contain an indication light that notifies any abnormal conditions, and an emergency power cut-off assures safety.
