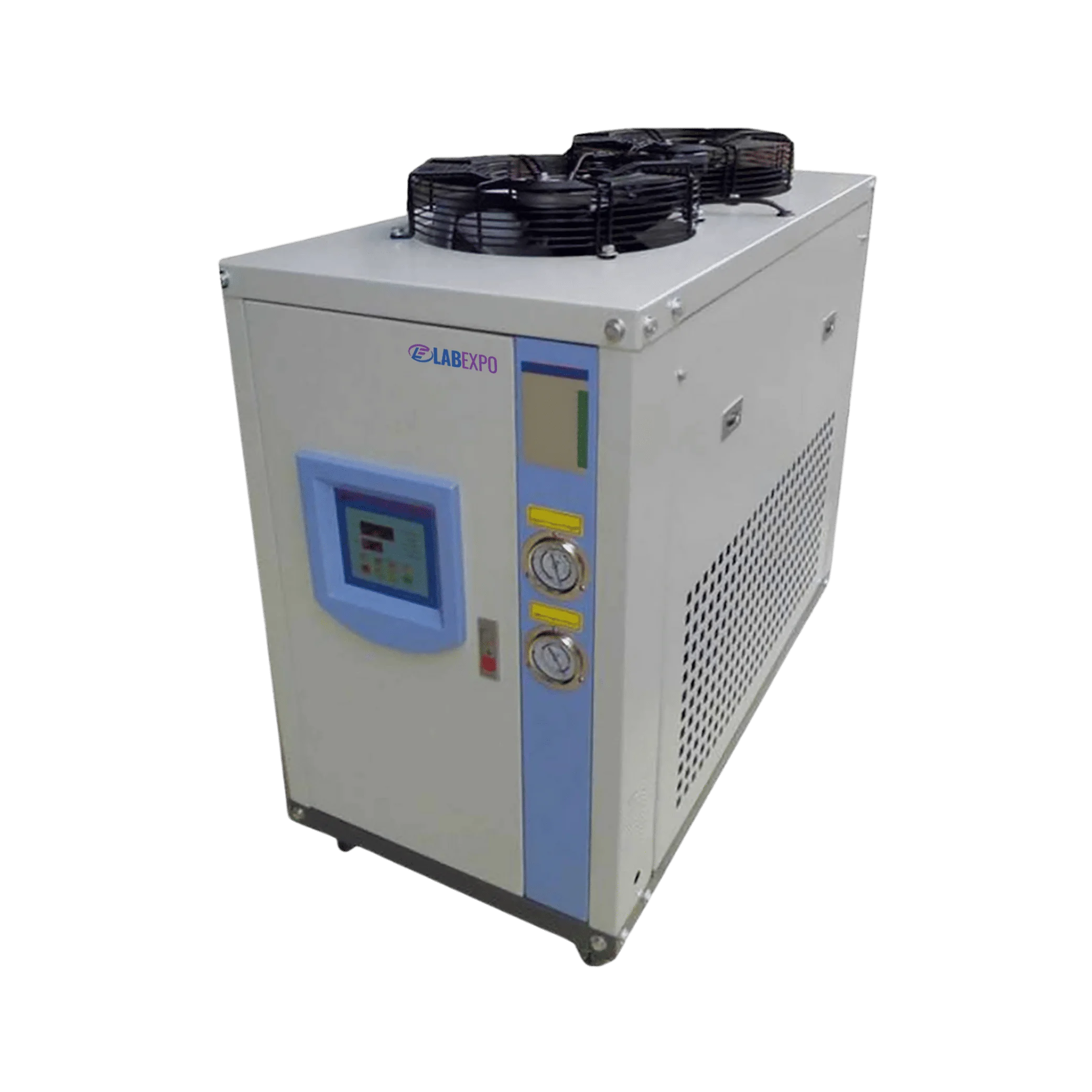

Air Cooled Chiller 29-ACR108 is energy saving and highly efficient chillers. In the case of emergency situations, there is provision to cut off main power immediately. These chillers give stable performance and are leakage proof. These air cooled chillers comes in wide range of compressors from 3.3 kW to 22.5 kW for use. They are completely safe device and are compact in structure for outdoor installation.
$21,571.00 $ 17976
Specifications
| Water tank capacity | 610 L |
| Cooling capacity | 110880 W, 399700 BTU / hr |
| Flow rate | 400 to 800 L / Min |
| water pump | 3.75 HP, 5 kW |
| Refrigerant type | R22 |
| Compressor motor | 30 kW, 40 HP |
| Condenser fan flow rate | 31200 CHM |
| Fan diameter | 600 mm × 6 set |
| Voltage/Base | 380V to 400 V / 3 Phase (50 Hz to 60 Hz) |
| Running current | 75 Amp |
| Insulation material | Poly-foam type rubberized tube insulation |
| Dimension (L × W × H) | 1930 × 1120 × 1980 mm |
| Net weight | 1180 kg |
Features
Applications
Function Implementation High-capacity process cooling 110880 W capacity removes heat from large industrial systems Air dehumidification Refrigeration system supports moisture reduction during cooling cycles Heavy-duty circulation 610 L tank and high flow rate maintain continuous coolant movement Temperature stabilization PID controller maintains defined cooling setpoint Emergency management Power cutoff and indicator respond to abnormal operating conditions
Lab Expo Air Cooled Chiller are energy-efficient and dependable, with features like leak-proof operation and consistent performance. They provide a wide variety of compressors and have a small design appropriate for outdoor installation. These contain poly foam rubberized tube insulation and use R22 as a refrigerant. They're built of stainless steel for durability, and a PID temperature controller ensures precision. Our Air Chiller contain an indication light that notifies any abnormal conditions, and an emergency power cut-off assures safety.
