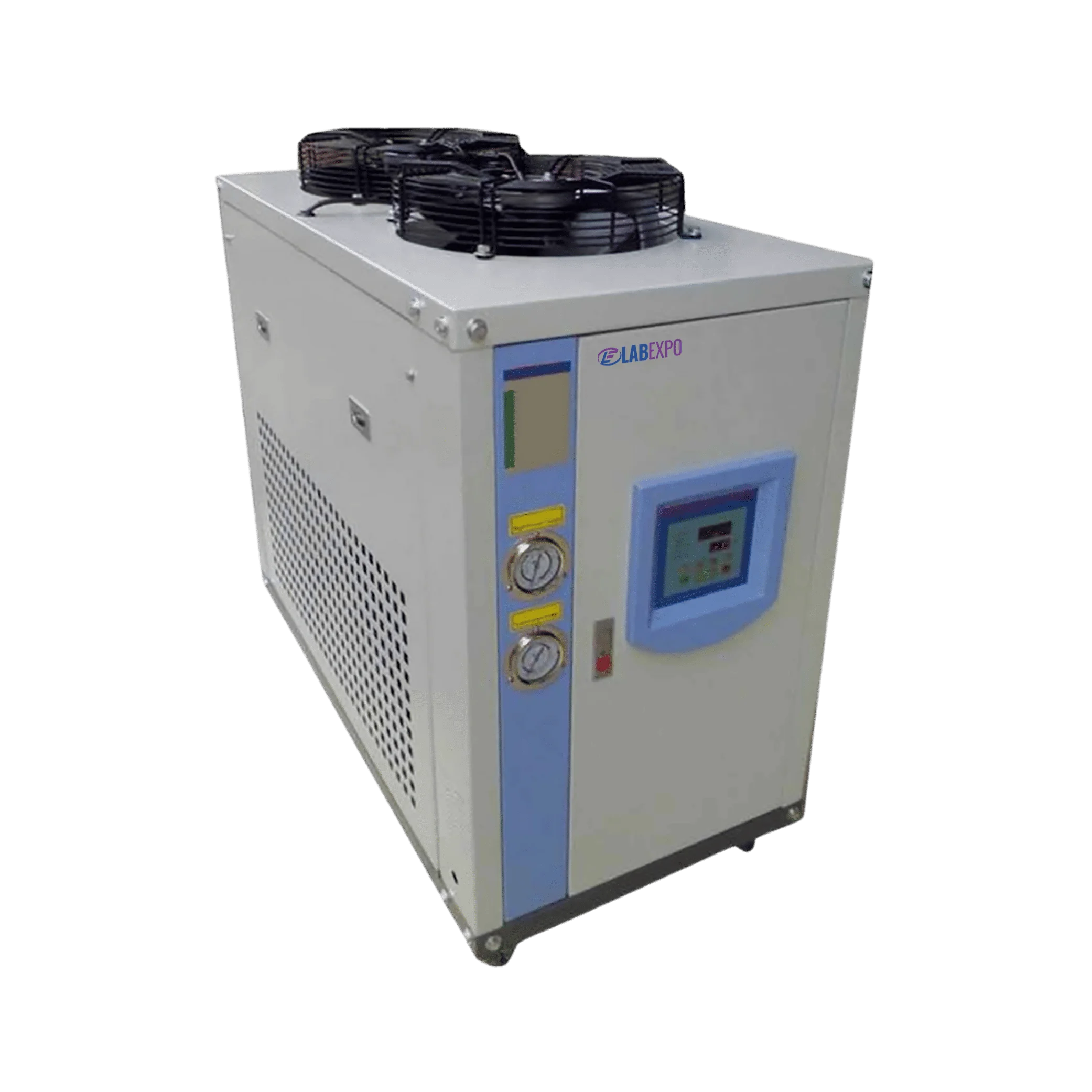

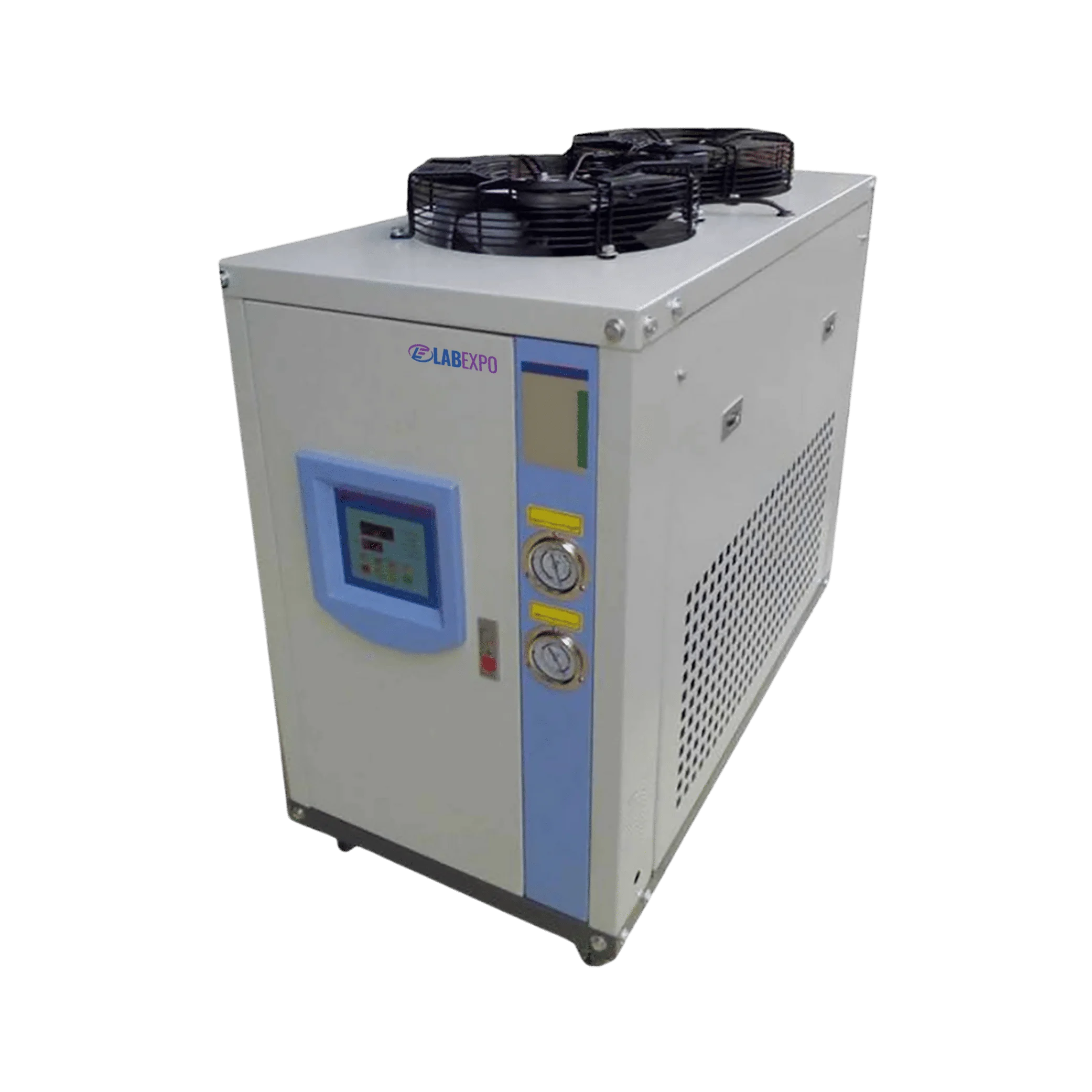

Air Cooled Chiller 29-ACR109 is energy saving and highly efficient chillers. In the case of emergency situations, there is provision to cut off main power immediately. These chillers give stable performance and are leakage proof. These air cooled chillers comes in wide range of compressors from 3.3 kW to 22.5 kW for use. They are completely safe device and are compact in structure for outdoor installation.
Specifications
| Water tank capacity | 790 L |
| Cooling capacity | 133980 W, 476000 BTU / hr |
| Flow rate | 400 to 800 L / Min |
| water pump | 3.75 HP, 5 kW |
| Refrigerant type | R22 |
| Compressor motor | 37.5 kW, 50 HP |
| Condenser fan flow rate | 39000 CHM |
| Fan diameter | 600 mm × 6 set |
| Voltage/Base | 380V to 400 V / 3 Phase (50 Hz to 60 Hz) |
| Running current | 95 Amp |
| Insulation material | Poly-foam type rubberized tube insulation |
| Dimension (L × W × H) | 2000 × 1150 × 2000 mm |
| Net weight | 1300 kg |
Features
Applications
Function Implementation High-load process cooling 133980 W capacity extracts heat from large industrial systems Continuous coolant distribution 790 L tank with high flow rate sustains process circulation Moisture reduction Refrigeration cycle assists in air dehumidification during cooling Thermal stability management PID controller regulates precise cooling setpoint Emergency shutdown response Integrated power cutoff and indicator manage abnormal conditions
Lab Expo Air Cooled Chiller are energy-efficient and dependable, with features like leak-proof operation and consistent performance. They provide a wide variety of compressors and have a small design appropriate for outdoor installation. These contain poly foam rubberized tube insulation and use R22 as a refrigerant. They're built of stainless steel for durability, and a PID temperature controller ensures precision. Our Air Chiller contain an indication light that notifies any abnormal conditions, and an emergency power cut-off assures safety.
