Air Jacketed CO2 Incubator 31-ACI100

Air Jacketed CO2 Incubator 31-ACI100

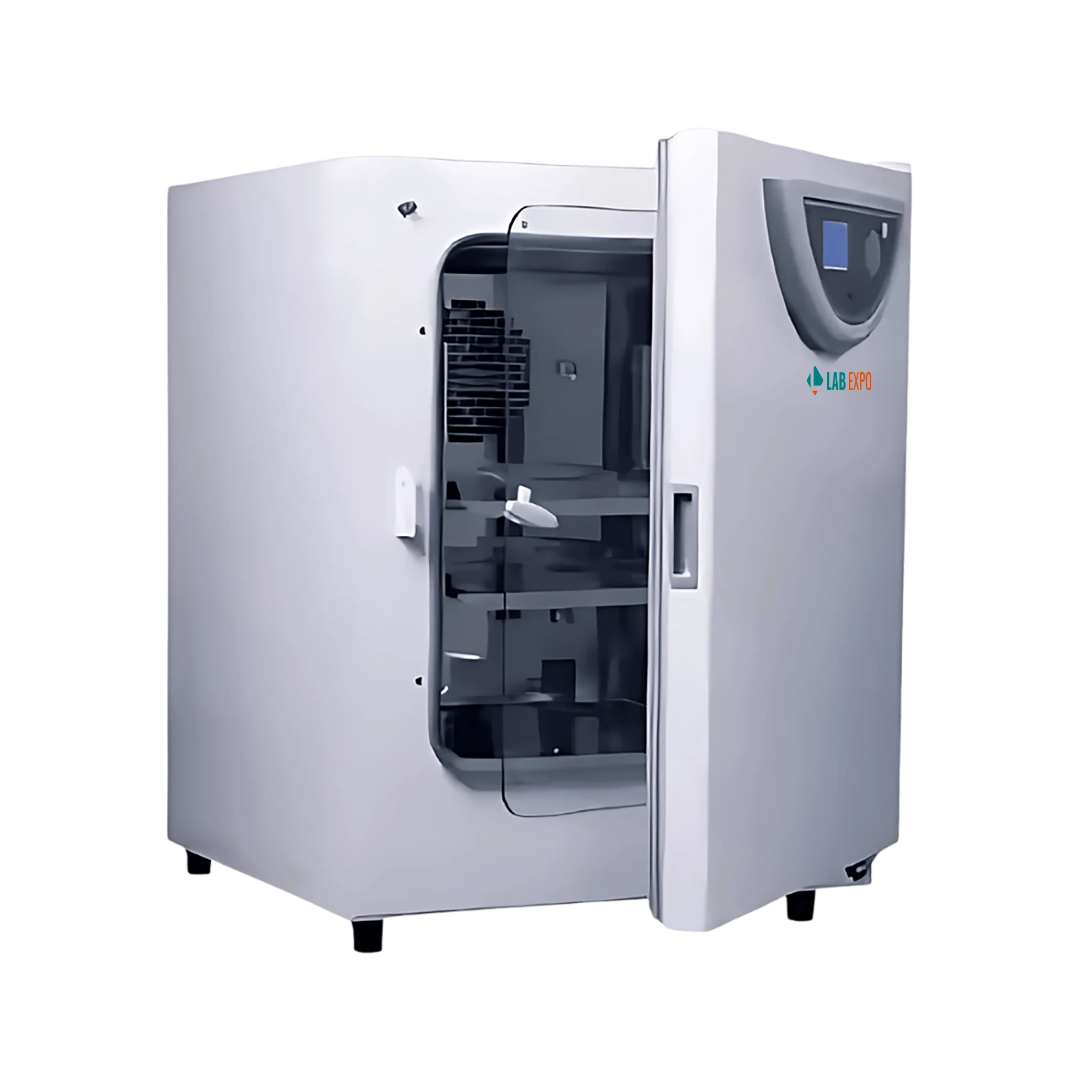

Air Jacketed CO2 Incubator 31-ACI100 offers a chamber volume of 80 liters, delivering ample capacity with stable performance. It features a micro-organism filter at the inlet, removing bacteria and dust to supply pure CO2 into the incubator. Built-in large LCD screen for clear display and easy monitoring. Equipped with 2 durable shelves, providing organized storage and efficient chamber utilization. Our Air Jacketed CO2 Incubator is suitable for tissue engineering, stem cell research, cancer studies, and mammalian cell culture.

Specifications

Chamber Volume 80 L
Shelves 2 (pcs)
Heating Method Air-Jacketed, PID Control
Temperature Range RT + 5 to 55 ℃
Ambient Temperature RT + 5 to 30 ℃
Temperature Stability ± 0.1 ℃
CO2 Range 0 to 20 % V/V
CO2 Control Resolution ± 0.1 % (IR sensor)
CO2 Recovery (Door Open 30 s, Recovery to 5 %) ≤ 3 min
Temperature Recovery Temperature Recovery (Door Open 30 s, Recovery to 37 ℃ ) ≤ 8 min
Sterilization Method 18 Hrs (90 ℃ Moist Heat Disinfection)
Humidity Method Natural Vaporization > 90 %
Power Consumption 500 W
Power Supply AC 220 V / 50 Hz
Interior Dimension 400 × 400 × 500 mm
Exterior Dimension 580 × 500 × 690 mm
Net Weight 66 Kg
Gross Weight 98 Kg

Features

  • Chamber volume 80 L with 2 shelves supports organized culture storage
  • Temperature range RT + 5 to 55 C with stability plus or minus 0.1 C
  • CO2 range 0 to 20 % V/V with control resolution plus or minus 0.1 % (IR sensor)
  • CO2 recovery (door open 30 s, recovery to 5 %) ≤ 3 min
  • Moist heat disinfection 18 hrs at 90 C with humidity > 90 % natural vaporization

Applications

FunctionImplementation
Tissue engineeringControlled CO2 and humidity support scaffold cell growth
Stem cell cultureStable temperature and CO2 maintain pluripotent conditions
Cancer researchRapid recovery maintains consistent tumor cell incubation
IVF proceduresPrecise CO2 control supports embryo culture
Mammalian cell cultureHigh humidity and PID heating ensure stable growth conditions

Optional Accessories

RS485 connector

Humidity display

CO2 pressure releasing valve

Catalog

Air Jacketed CO2 Incubator 31-ACI100 Catalog

Related Models Of Air Jacketed CO2 Incubator

Lab Expo Air Jacketed CO₂ Incubator supports controlled cell culture workflows where uniform temperature stability and precise CO₂ regulation are required to maintain consistent growth conditions. The system operates with an air-jacket heating design to ensure even thermal distribution and microprocessor-regulated CO₂ control for stable pH maintenance. Stainless steel or copper interiors support hygienic operation, while HEPA filtration and UV sterilization provide contamination control for precise, repeatable incubation performance.
