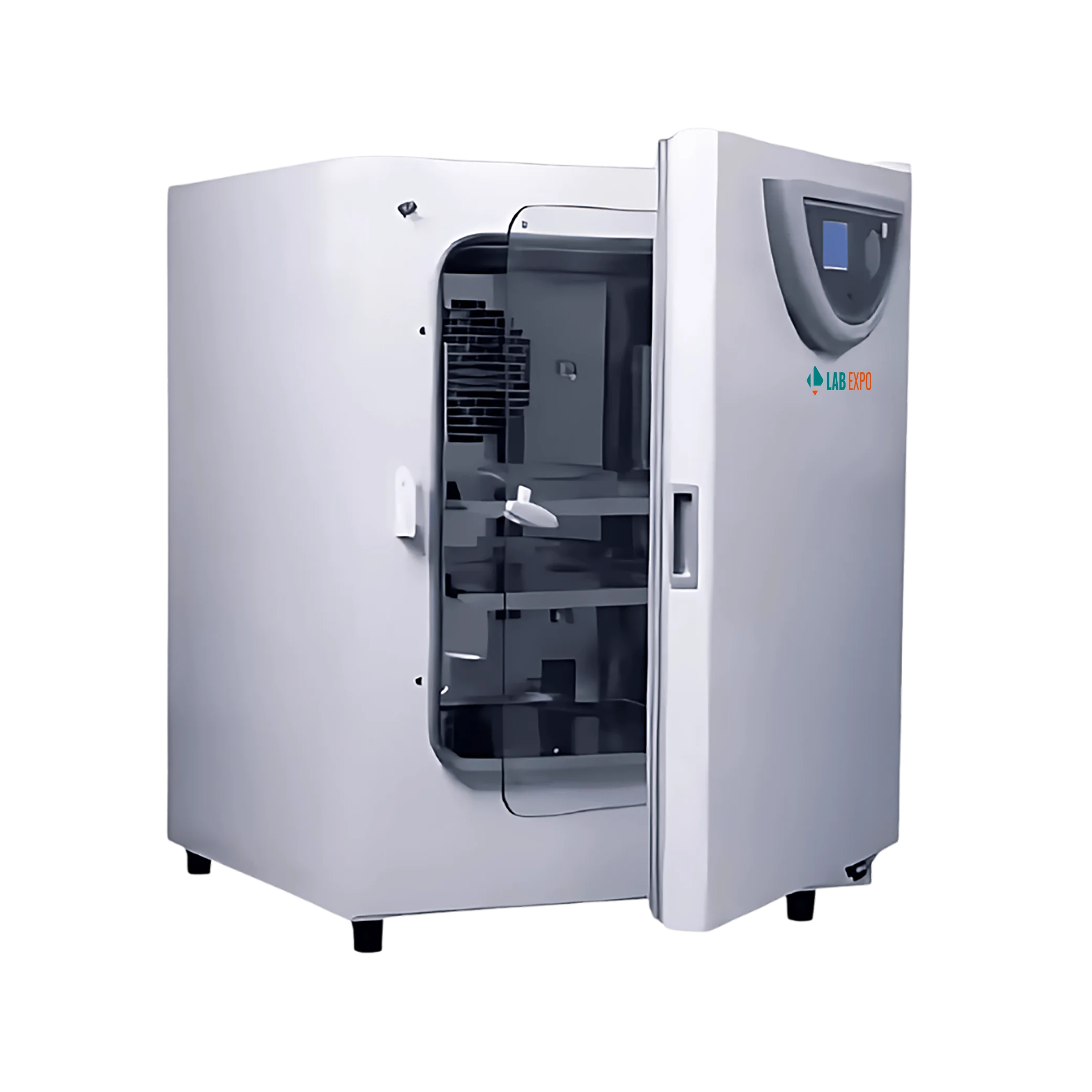

Air Jacketed CO2 Incubator 31-ACI101

Air Jacketed CO2 Incubator 31-ACI101

Air Jacketed CO2 Incubator 31-ACI101 is designed with a chamber volume of 155 liters, providing ample space for reliable and stable operation. It has 3 shelves, allowing organized and efficient use of the chamber space. Integrated temperature control from RT + 5 to 55 ℃ for precise environment regulation. Incorporated microprocessor-based PID controller for accurate and stable temperature and CO2 regulation. Our Air Jacketed CO2 Incubator is ideal for tissue engineering, stem cell research, cancer investigations, and mammalian cell cultivation.

Specifications

Chamber Volume 155 L
Shelves 3 (pcs)
Heating Method Air-Jacketed, PID Control
Temperature Range RT + 5 to 55 ℃
Ambient Temperature RT + 5 to 30 ℃
Temperature Stability ± 0.1 ℃
CO2 Range 0 to 20 % V/V
CO2 Control Resolution ± 0.1 % (IR sensor)
CO2 Recovery (Door Open 30 s, Recovery to 5 %) ≤ 3 min
Temperature Recovery Temperature Recovery (Door Open 30 s, Recovery to 37 ℃ ) ≤ 8 min
Humidity Method Natural Vaporization > 90 %
Power Consumption 750 W
Power Supply AC 220 V / 50 Hz
Interior Dimension 480 × 530 × 610 mm
Exterior Dimension 670 × 767 × 880 mm
Net Weight 85 Kg
Gross Weight 127 Kg

Features

  • Chamber volume 155 L with 3 shelves supports high-capacity culture storage
  • Temperature range RT + 5 to 55 C with stability plus or minus 0.1 C
  • CO2 range 0 to 20 % V/V with control resolution plus or minus 0.1 % (IR sensor)
  • CO2 recovery (door open 30 s, recovery to 5 %) ≤ 3 min
  • Humidity natural vaporization > 90 % maintains high moisture environment

Applications

FunctionImplementation
Tissue engineeringStable CO2 and humidity support scaffold culture
Stem cell researchPrecise temperature and CO2 maintain growth conditions
Cancer studiesRapid CO2 recovery maintains incubation stability
IVF proceduresControlled CO2 environment supports embryo culture
Mammalian cell cultureHigh-capacity chamber supports batch cultivation

Optional Accessories

RS485 connector

Humidity display

CO2 pressure releasing valve

Catalog

Air Jacketed CO2 Incubator 31-ACI101 Catalog

Related Models Of Air Jacketed CO2 Incubator

Lab Expo Air Jacketed CO₂ Incubator supports controlled cell culture workflows where uniform temperature stability and precise CO₂ regulation are required to maintain consistent growth conditions. The system operates with an air-jacket heating design to ensure even thermal distribution and microprocessor-regulated CO₂ control for stable pH maintenance. Stainless steel or copper interiors support hygienic operation, while HEPA filtration and UV sterilization provide contamination control for precise, repeatable incubation performance.
