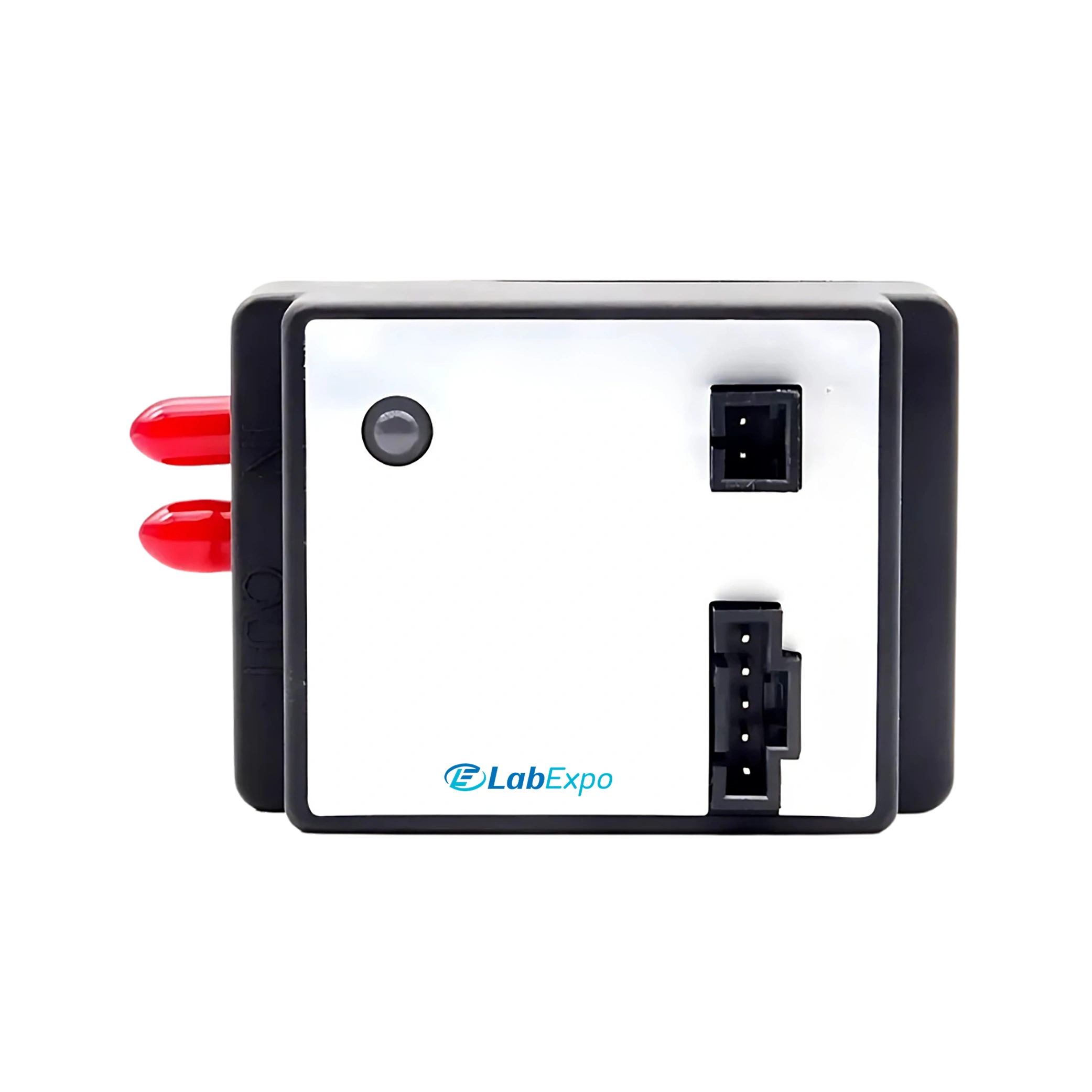

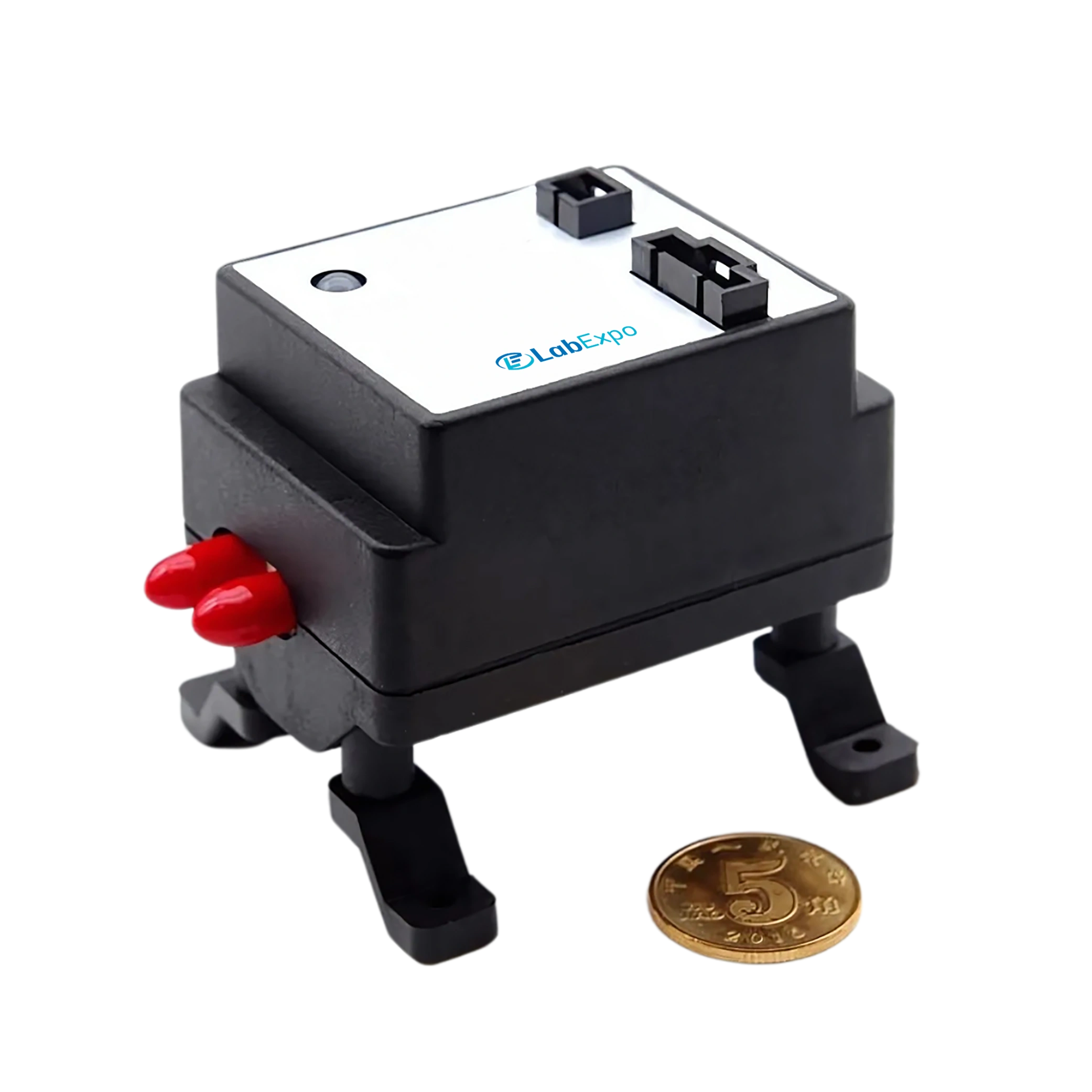

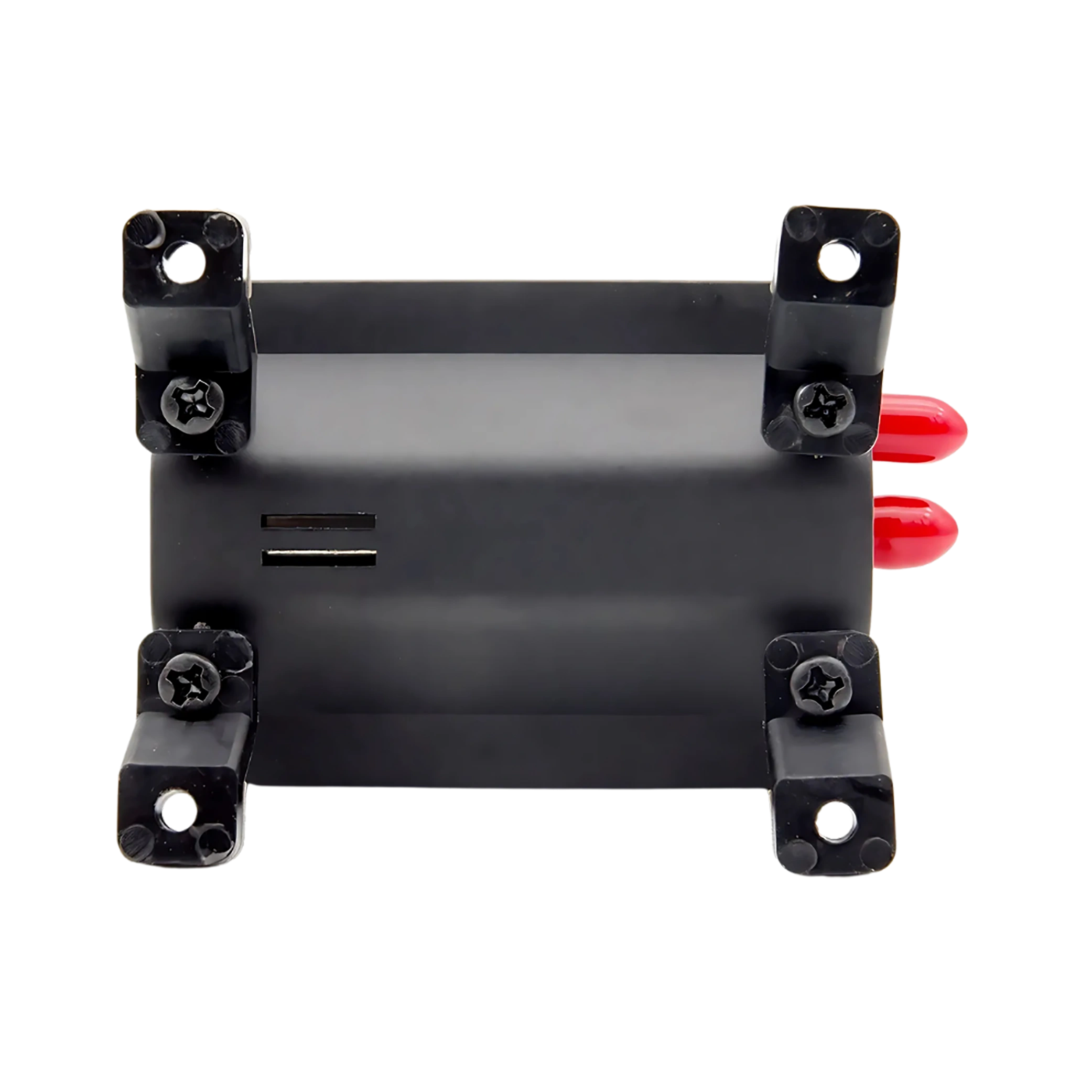

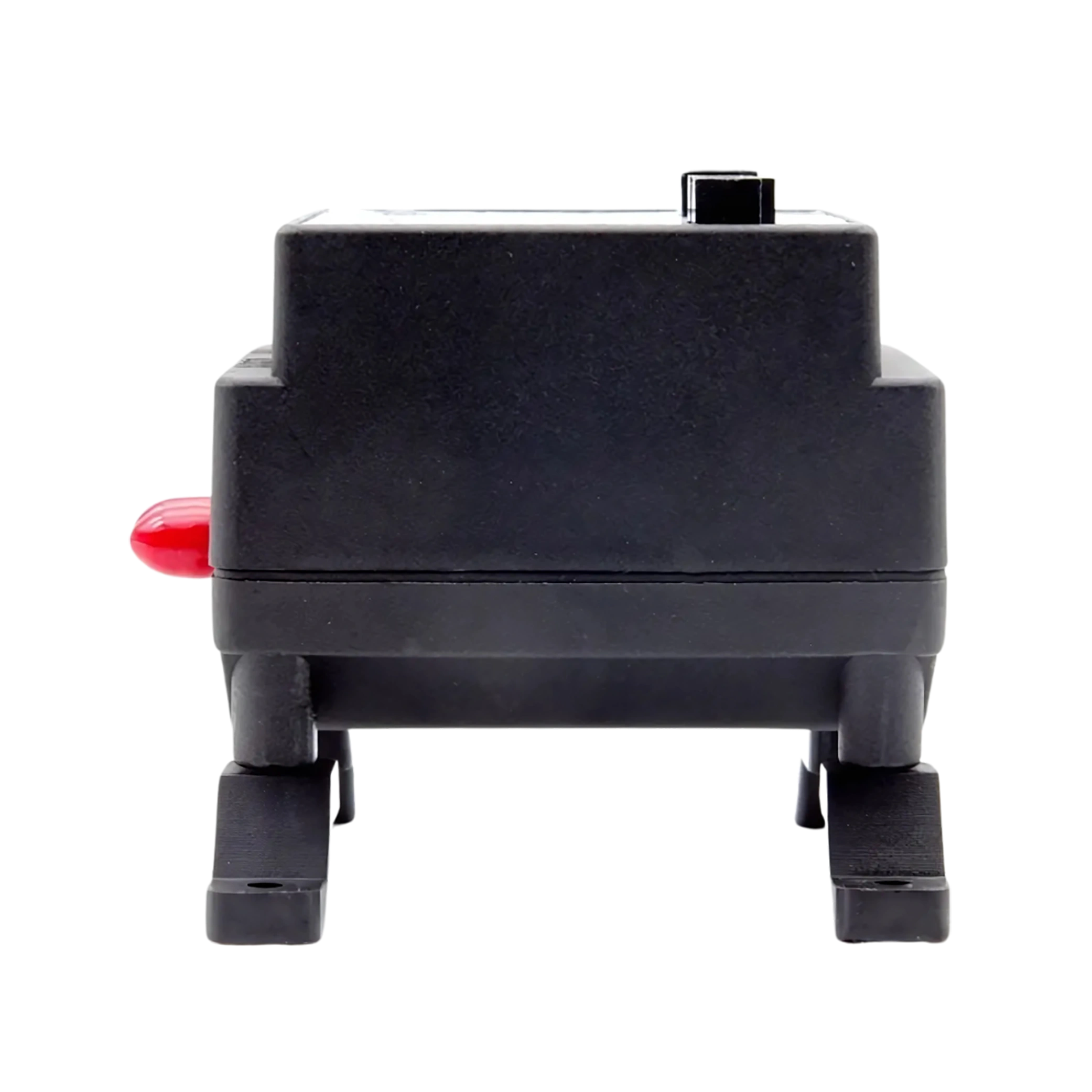

Air Pump LE-ARP101 delivers a peak flow rate of ≥ 1.5 L/min and operates at a voltage of 24 V DC, ensuring consistent air transfer performance. It provides gas sampling, vacuuming and high-end micro air pump with three pump chambers. Designed for low flow pulsation and stable flow output. Built in internal architecture minimizes flow fluctuations, promoting smooth and accurate operation. Our Air Pump is ideal for low electromagnetic interference, low noise level and vibration.
Specifications
| Voltage | 24 V DC |
| Max. Load Current | ≤200 mA |
| Peak Flow Rate | ≥ 1.5 L/min |
| Average Flow Rate | ≥ 1.3 L/min |
| Max. Vacuum | ≥ 37 -kPa |
| Operating Temperature | 0 ℃ to 50 ℃ |
| Ambient Temperature | 5 ℃ to 33 ℃ |
| Relative Humidity | 50 % to 85 % |
| Fully Loaded Lifetime | ≥ 2000 |
| Unloaded Lifetime | 2000 |
| Motor Lifetime | 10000 |
| Dimension | 64 × 43 × 48 mm |
Features
Applications
Air Pump LE-ARP101 is ideal for precise gas sampling and vacuum generation in analytical instruments, medical devices, and environmental monitoring systems.
Catalog
Lab Expo Air Pump combines compact size with high-efficiency performance. They feature BLDC motors and digital flow control for precise, oil-free air handling. These pumps use multi-chamber designs to deliver stable flow with low pulsation. They operate quietly with minimal vibration and electromagnetic interference. Our Pump is ideal for gas sampling, vacuum applications in lab environments.
