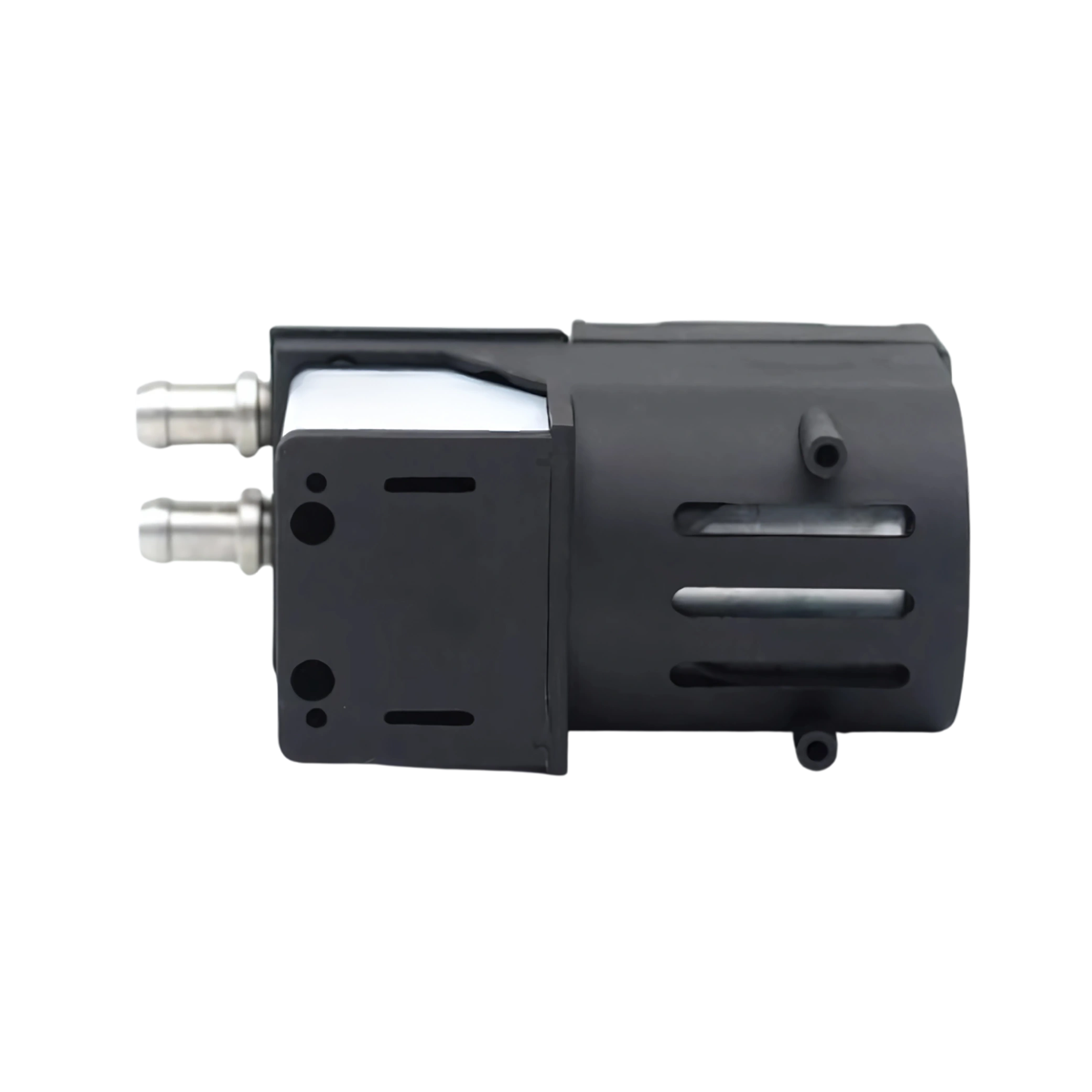

Air Pump LE-ARP102 operating at a maximum load current of ≤210 mA, ensuring stable and efficient performance. It offers a service life exceeding 5,000 hours, along with thermal protection properties. Built-in BLDC motor, and digital flow control for highly accurate air transfer. Designed to enable clean, oil-free air handling by dynamically adjusting chamber volume. Our Air Pump supports both portable and continuous-duty applications, delivering reliable performance in compact, high-demand setups.
Specifications
| Voltage | 24 V DC |
| Max. Load Current | ≤210 mA |
| Peak Flow Rate | ≥ 2.0 L/min |
| Average Flow Rate | ≥ 1.2 L/min |
| Max. Vacuum | ≥ 19 -kPa |
| Operating Temperature | 0 ℃ to 50 ℃ |
| Ambient Temperature | 5 ℃ to 33 ℃ |
| Relative Humidity | 50 % to 85 % |
| Fully Loaded Lifetime | ≥ 12000 |
| Unloaded Lifetime | 18000 |
| Motor Lifetime | 20000 |
| Dimension | 91 × 48 × 69 mm |
Features
Applications
Air Pump LE-ARP102 is designed for automation systems needing digitally controlled micro airflow in analytical instruments.
Catalog
Lab Expo Air Pump combines compact size with high-efficiency performance. They feature BLDC motors and digital flow control for precise, oil-free air handling. These pumps use multi-chamber designs to deliver stable flow with low pulsation. They operate quietly with minimal vibration and electromagnetic interference. Our Pump is ideal for gas sampling, vacuum applications in lab environments.
