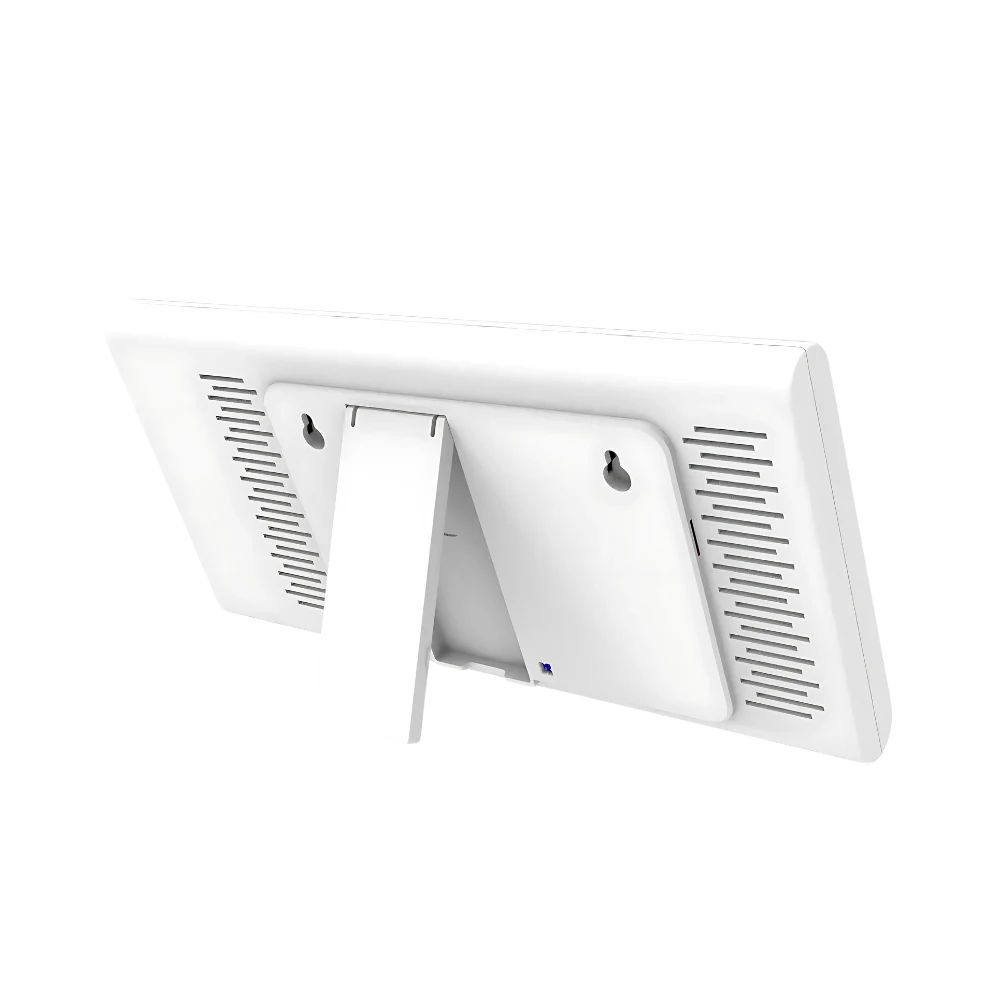

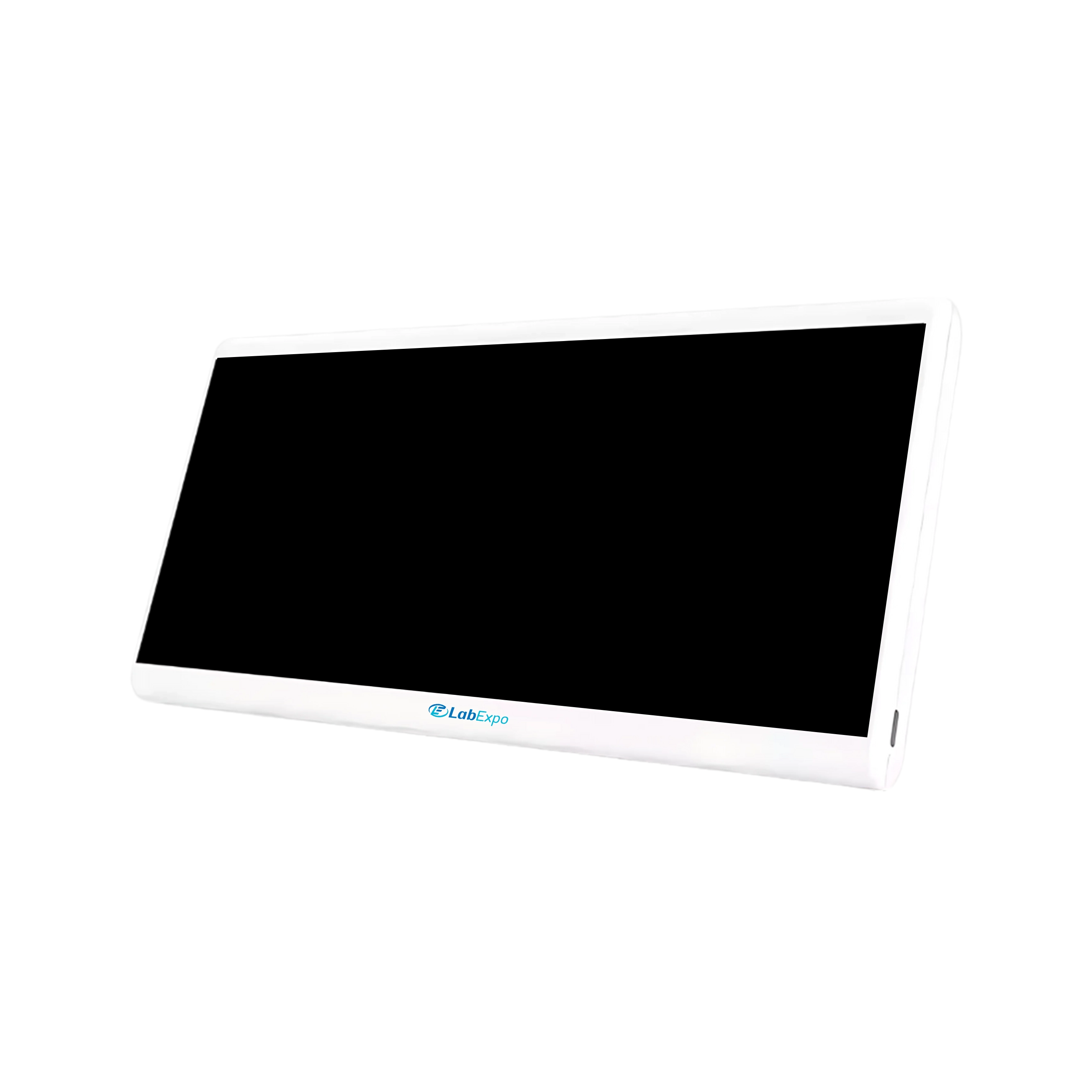

Air Quality Monitor LE-AQM106 is an advanced multi-functional system with touch screen interface. It detects CO2, formaldehyde, PM, TVOC, temperature, and humidity with time. Equipped with high-quality air-sensors, it provides accurate and reliable readings. Integrated LCD screen enables real-time monitoring of parameters. Our Air Quality Monitor is ideal for various indoor applications.
Specifications
| Measuring Item | CO2, PM2.5, PM10, HCHO (Formaldehyde), TVOC, AQI, Temperature, Humidity. |
| Detection Method for CO2 | Infrared (NDIR) |
| Detection Method for PM | Laser Scattering |
| Detection Method for HCHO/ TVOC | Semiconductor sensor |
| Concentration Unit for CO2 | ppm |
| Concentration Unit for PM | ug/m3 |
| Concentration Unit for HCHO and TVOC | mg /m3 |
| CO2 Measuring Range | 400 to 5000 ppm |
| PM2.5/10 Measuring Range | 0 to 999 ug/m3 |
| HCHO Measuring Range | 0.001 to 1.999 mg/m3 |
| TVOC Measuring Range | 0.001 to 9.999 mg/m3 |
| Atmospheric Pressure | 12.5 PSI to 15.4 PSI |
| Sampling Time | 1.5 Seconds |
| Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Relative Humidity | 20% to 85% |
| Humidity Range | 20% to 85% |
| Display Method | LCD Screen |
| Power Source | 3000 mAh Rechargeable Lithium Battery, Charging via Type-C Port |
| Dimension | 240 × 120 × 20mm |
| Weight | 428g |
Features
Applications
Air Quality Monitor LE-AQM106 provides real-time monitoring of carbon dioxide, formaldehyde, TVOC, and PM.
1: Which technology is used for carbon dioxide detection?
It uses advanced infrared (NDIR) sensing for accurate CO? readings.
2: Which air quality parameters does the LE-AQM106 measure?
The LE-AQM106 detects CO?, PM2.5, PM10, formaldehyde (HCHO), TVOC, AQI, temperature, and humidity.
3: Which display feature makes this model user-friendly?
Our model features a responsive touch-screen LCD for clear, real-time data display.
4: Which design elements support continuous air monitoring?
This device includes a built-in fan, high-quality sensors, and 1.5-second sampling for precise updates.
5: Which locations are ideal for using the LE-AQM106?
These Air Quality Monitors are suitable for homes, offices, schools, and other indoor spaces.
6: What does real-time Air Quality Monitoring mean?
Real-time monitoring refers to the continuous, live tracking and display of air quality data, allowing users to instantly view changes in pollutant levels and environmental conditions.
7: How accurate are these advanced environmental sensors?
High-quality sensors use real-time calibration and compensation algorithms to deliver accurate, reliable readings across a wide range of environmental conditions.
8: Why is it important to monitor these invisible contaminants?
These pollutants can cause serious health issues such as respiratory problems, allergies, fatigue, eye irritation, and long-term damage to the lungs and heart even if they are not seen or smelled.
9: How often should I rely on readings to manage air quality proactively?
Continuous or daily monitoring is ideal. Alerts and trend analysis help anticipate problems before they become harmful, rather than reacting after symptoms or complaints.
10: How do accurate air quality readings help in proactive management?
Accurate data allows users to detect pollutant levels early and respond before they reach harmful thresholds enabling better health protection and environmental control.
Lab Expo Air Quality Monitor provide real-time detection of airborne pollutants and environmental conditions. They are equipped with advanced sensors to measure gases, particulate matter, temperature, and humidity. Theses devices help identify invisible contaminants that affect health and comfort. Their accurate readings support proactive air quality management. Our Air Quality Monitor has wide applications in homes, offices, laboratories, and other indoor spaces.
