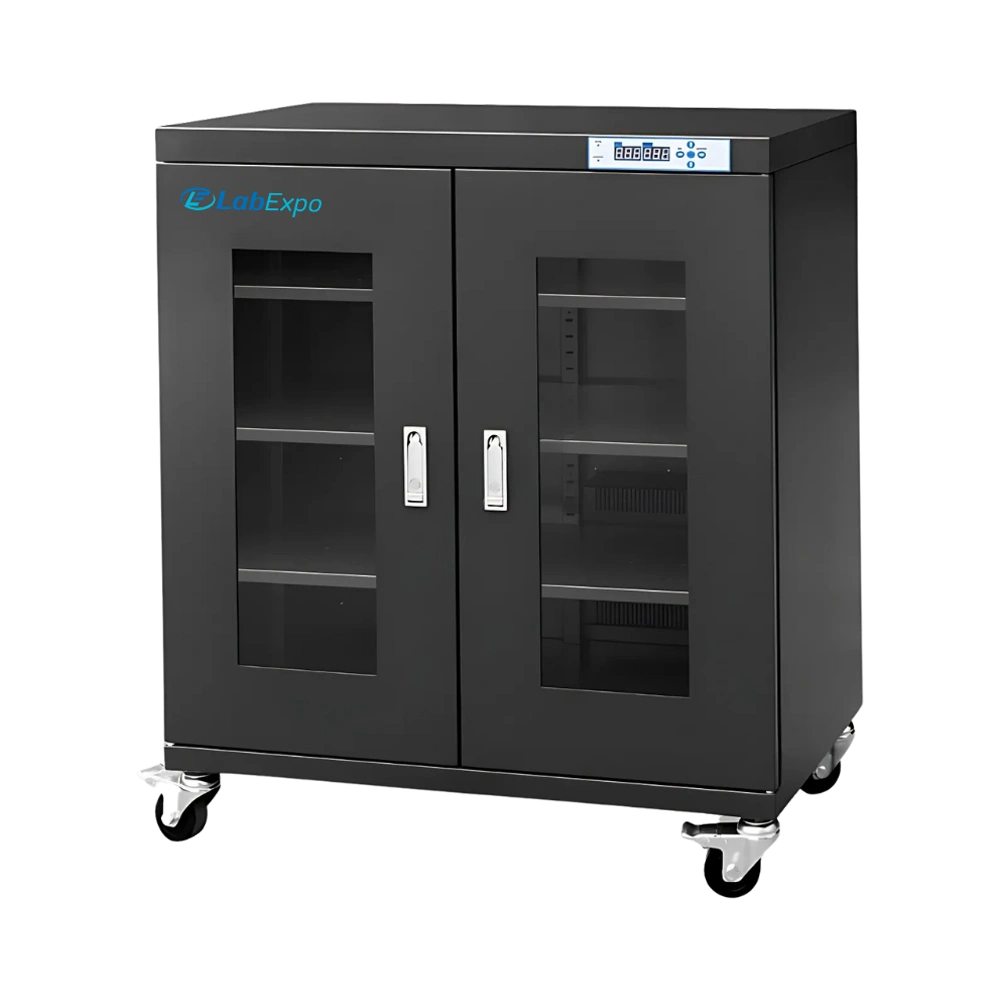

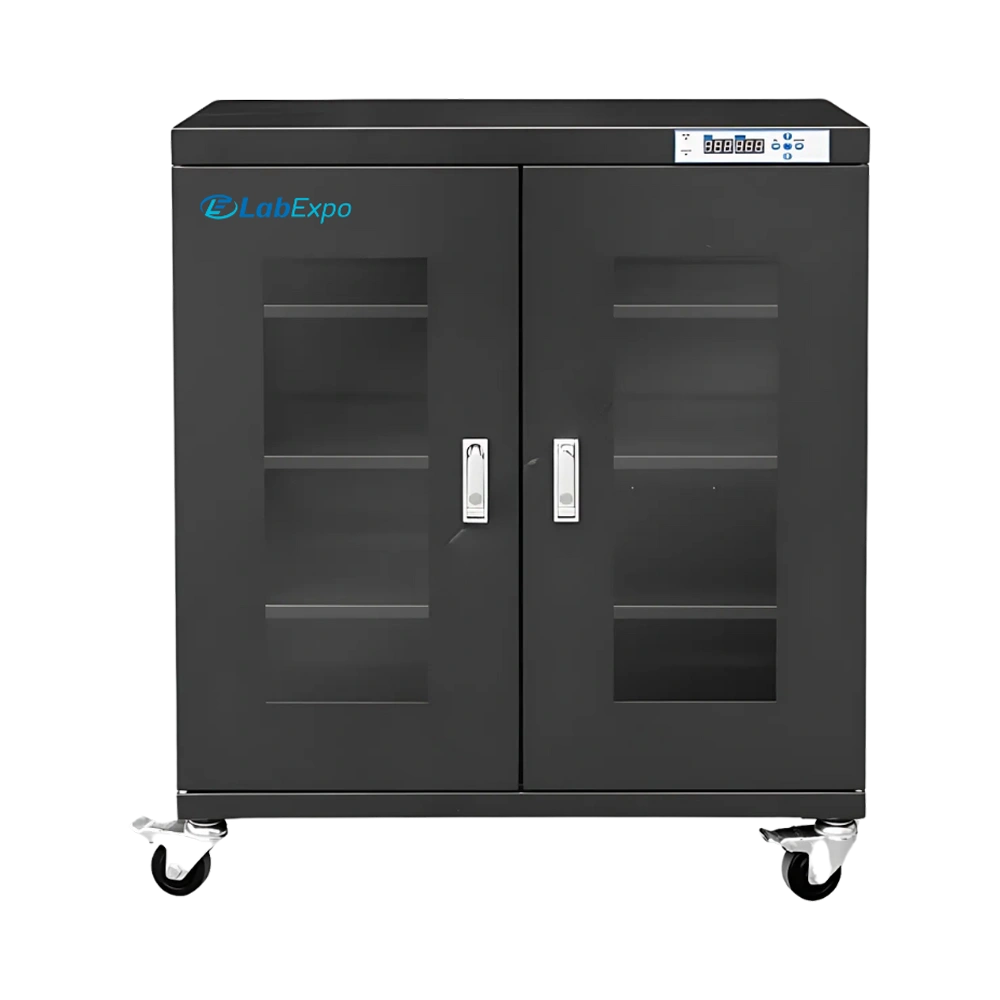

Baking Cabinet LE-BC101 maintains a stable hot and dry environment with a 320L capacity. Built-in temperature control maintains 40℃, ensuring prolonged preservation of materials. Integrated low-humidity system keeps RH below 10%, reducing the risk of oxidation and moisture damage. Incorporated digital control system allows accurate monitoring of parameters. Our ESD safe Baking Cabinet is ideal for storage of PCB boards, MSD, and other moisture sensitive electronics.
Specifications
| Capacity | 320L |
| Humidity | Less Than 10% RH |
| Temperature | 40℃ |
| ESD Type | Yes |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed |
| Ambient Temperature | 25℃ |
| Relative Humidity | 60% RH |
| No of Shelves | 3 |
| Maximum Load per Shelf | 80 Kg |
| Interior Dimension | 898 × 422 × 848mm |
| Exterior Dimension | 900 × 450 × 1010mm |
| Gross Weight | 70 Kg |
Features
Applications
Function Implementation PCB storage Low-humidity environment preventing moisture absorption before assembly MSD protection Controlled <10% RH storage reducing component degradation Electronics preservation Stable 40℃ dry chamber minimizing oxidation risk Production line support 30 min recovery after door cycle for workflow continuity
Catalog
1: Which storage capacity does the LE-BC101 provide?
It offers a spacious 320-liter capacity with three adjustable shelves, each supporting up to 80 kg.
2: Which temperature and humidity conditions does it maintain?
They operate at a stable 40°C with humidity below 10% RH for optimal moisture-sensitive material protection.
3: Which materials and items is this cabinet ideal for storing?
It is designed for PCB boards, moisture-sensitive devices (MSD), and other sensitive electronics.
4: Which construction and safety features are included?
It features 1.2 mm galvanized steel, reinforced ESD castors, and a high-intensity tempered glass window.
5: Which control and monitoring systems are integrated?
These cabinets includes a digital control panel with imported temperature and humidity sensors for accurate parameter monitoring.
6: What is the purpose of using a Baking Cabinet for storing PCBs and MSDs?
Baking Cabinets remove and prevent moisture absorption in sensitive electronic components such as PCBs and MSDs, helping to avoid microcracks, delamination, or popcorning during soldering or reflow processes.
7: How does moisture affect PCBs and MSDs?
Moisture trapped in electronic components can vaporize during high-temperature processing, causing internal damage or complete failure of the component.
8: Why is durable insulation important in a Baking or Drying Cabinet?
Durable insulation helps maintain consistent internal temperature, reduces heat loss, and improves energy efficiency, ensuring stable conditions for moisture removal or storage.
9: What kind of controls are included in these cabinets?
These cabinets typically feature intuitive control panels with push-button or touchscreen interfaces, allowing users to set and adjust temperature, humidity, and time with ease.
10: What makes it a specialized storage unit?
Its ability to regulate and maintain consistent environmental conditions such as low humidity, stable temperature, and hygienic internal surfaces sets it apart from standard storage solutions.
