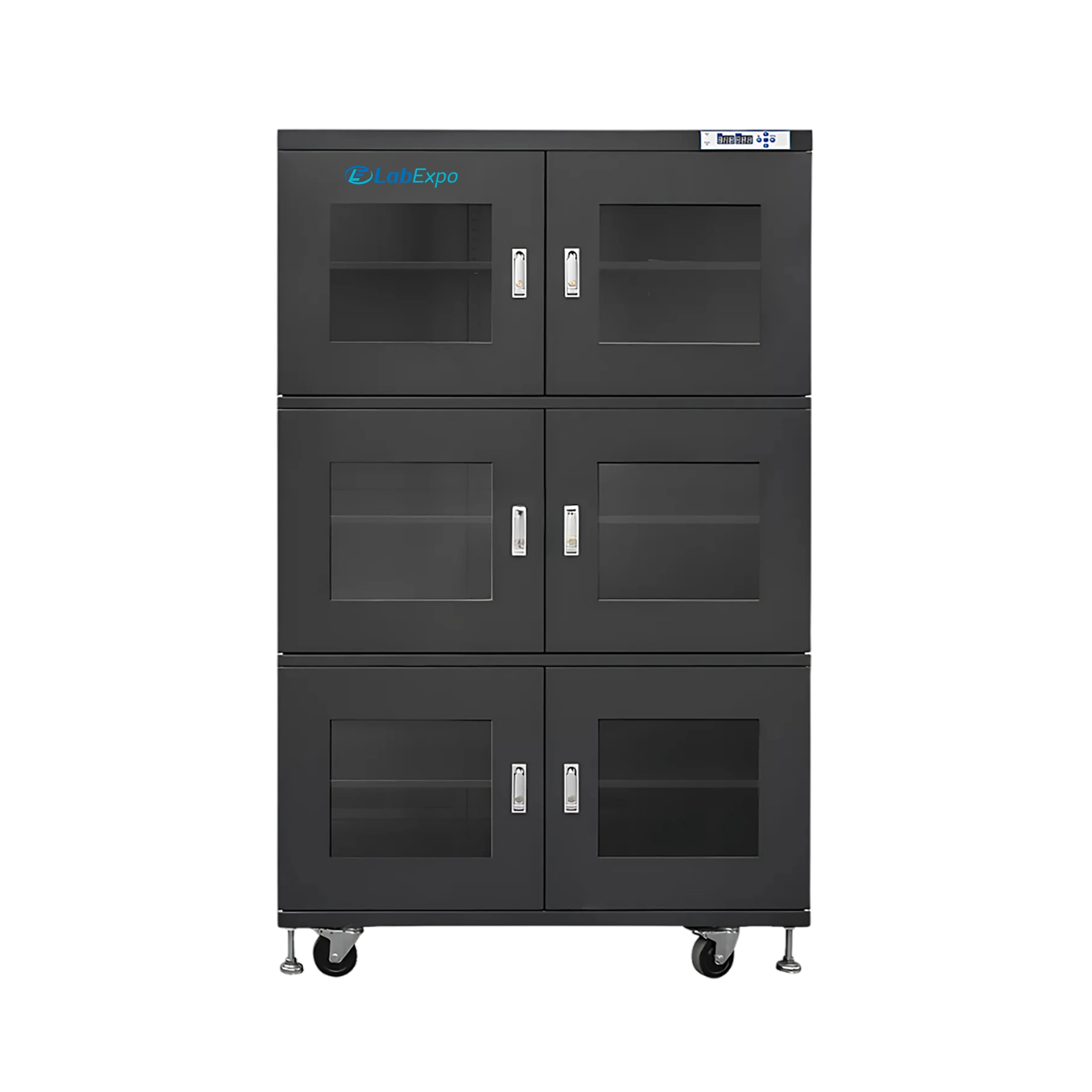

Baking Cabinet LE-BC103 is designed with a large 1436L chamber capacity for controlled long-term storage. It maintains a consistent 40℃ temperature and keeps humidity below 10% RH to prevent material degradation. Built-in memory function retains prior settings after power interruptions. Incorporated height adjustable five shelves and tempered glass window supports secure, organized storage. Our Baking Cabinet is perfect for storing electronic components, optical lens, and pharmaceutical raw materials.
Specifications
| Capacity | 1436L |
| Humidity | Less Than 10% RH |
| Temperature | 40℃ |
| ESD Type | Yes |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed. |
| Ambient Temperature | 25℃ |
| Relative Humidity | 60% RH |
| No of Shelves | 5 |
| Maximum Load per Shelf | 100 Kg |
| Interior Dimension | 1198 × 682 × 1723mm |
| Exterior Dimension | 1200 × 710 × 1910mm |
| Gross Weight | 189 Kg |
Features
Applications
Function Implementation Bulk electronic component storage Large ultra-dry chamber preventing moisture-related failures Optical lens preservation Low humidity control minimizing fogging and surface damage Pharmaceutical material protection Stable 40℃ dry environment reducing degradation risk Long-term inventory management 1436 L capacity supporting organized high-volume storage Production and warehouse support Rapid ≤30 min humidity recovery after door cycle
Catalog
1: Which storage capacity does the LE-BC103 provide?
It offers a large 1436-liter chamber with five height-adjustable shelves, each supporting up to 100 kg.
2: Which temperature and humidity levels are maintained?
They ensures a stable 40°C temperature and keeps humidity below 10% RH for optimal material preservation.
3: Which items can be stored in this baking cabinet?
Our Cabinet is ideal for electronic components, optical lenses, and pharmaceutical raw materials.
4: Which features improve its reliability and performance?
These cabinet includes a powerful drying unit, imported humidity & temperature sensors, and a multi-porous molecular sieve.
5: Which design elements enhance usability and safety?
It has a tempered glass window, LED controller, and reinforced ESD castors for safe and convenient use.
6: What is the purpose of using a Baking Cabinet for storing PCBs and MSDs?
Baking Cabinets remove and prevent moisture absorption in sensitive electronic components such as PCBs and MSDs, helping to avoid microcracks, delamination, or popcorning during soldering or reflow processes.
7: How does moisture affect PCBs and MSDs?
Moisture trapped in electronic components can vaporize during high-temperature processing, causing internal damage or complete failure of the component.
8: Why is durable insulation important in a Baking or Drying Cabinet?
Durable insulation helps maintain consistent internal temperature, reduces heat loss, and improves energy efficiency, ensuring stable conditions for moisture removal or storage.
9: What kind of controls are included in these cabinets?
These cabinets typically feature intuitive control panels with push-button or touchscreen interfaces, allowing users to set and adjust temperature, humidity, and time with ease.
10: What makes it a specialized storage unit?
Its ability to regulate and maintain consistent environmental conditions such as low humidity, stable temperature, and hygienic internal surfaces sets it apart from standard storage solutions.
