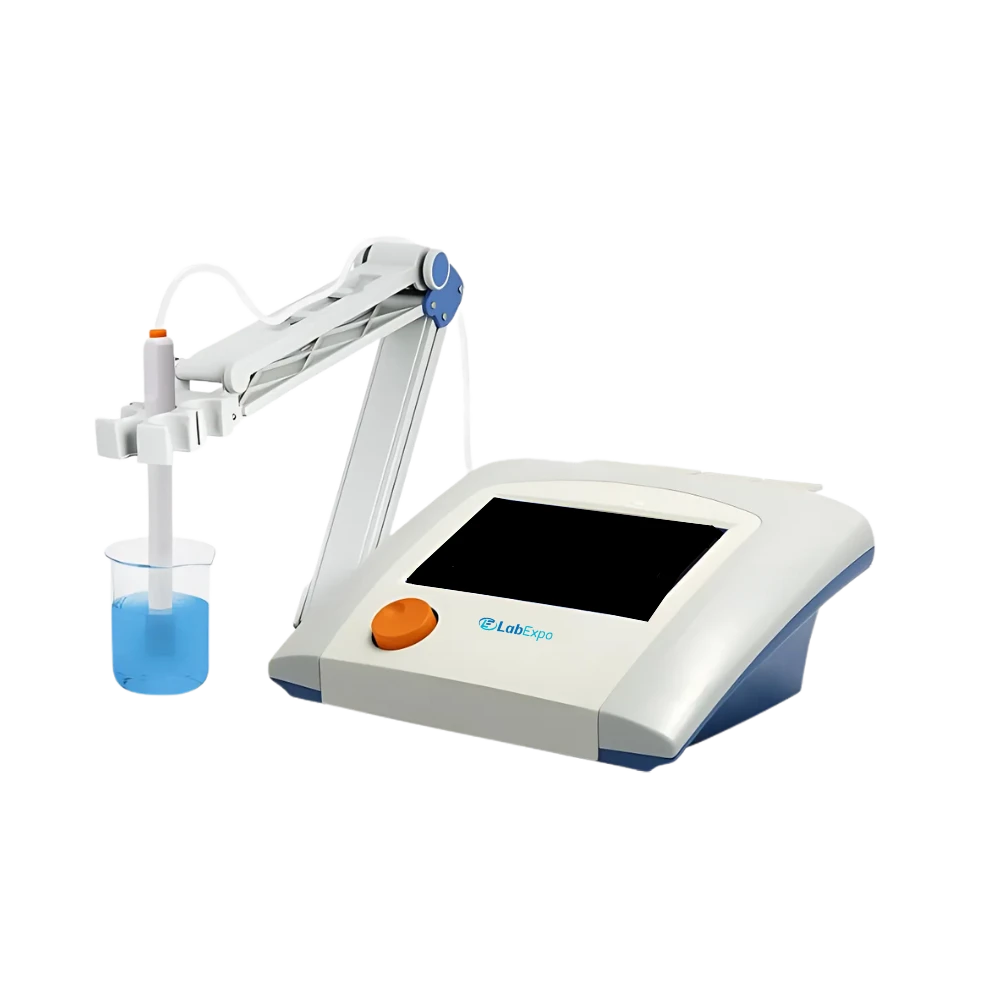

Benchtop Conductivity Meter LE-BCM201 offers a range of 0.000 μS/cm to 3000 mS/cm for precise measurement. It consists of -5.0°C to 130.0°C temperature compensation range for accurate and stable readings. Integrated with backlit LCD display for easy measurements visibility. Built with automatic calibration for more efficient and less prone to manual errors. Our Benchtop Conductivity Meter is ideal for water testing labs, process control in industry, and teaching laboratories.
Specifications
| Conductivity Range | 0.000 μS/cm to 3000 mS/cm |
| Conductivity Resolution | 0.001 μS/cm Minimum, Varies with Range |
| Conductivity Accuracy | ± 0.5 % FS |
| Reference Temperature | 5, 10, 15, 18, 20, 25 °C |
| Calibration Points | Up to 5 |
| Standard Recognition | 146.5 μS/cm, 1408 μS/cm, 12.85 mS/cm, 111.3 mS/cm |
| Resistivity Range | 5.00 Ω·cm to 100.0 MΩ·cm |
| Resistivity Resolution | 0.01 Ω·cm Minimum |
| Resistivity Accuracy | ± 0.5% FS |
| TDS Range | 0.000 mg/L to 1000 g/L |
| TDS Resolution | 0.001 ppm Minimum, Varies with Range |
| TDS Accuracy | ± 0.5 % FS |
| Salinity Type | NaCl % |
| Salinity Range | 0.00 % to 8.00 % |
| Salinity Resolution | 0.01 % |
| Salinity Accuracy | ± 0.1 % |
| Temperature Range | -5.0 to 130.0 °C |
| Temperature Unit | °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ± 0.1 °C |
| Reading Modes | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temperature Compensation | ATC, MTC |
| Data Storage | 1000 Groups |
| GLP Features | Yes |
| Log Management | Yes |
| Temperature Probe Input | 6 - pin Mini - DIN |
| Conductivity Probe Input | 8 - pin Mini - DIN |
| Outputs | USB 2.0 Flash Memory Device, Printer, PC, RS232 |
| Backlight | Yes |
| Auto Shutdown | 1 to 60 min, off |
| IP Rating | IP54 |
| Date and Time | Yes |
| Power Supply | AC Adapter, 100 to 240V AC input, DC 24V output |
| Dimensions | 280 × 280 × 130 mm |
| Weight | 2.5 kg |
Features
Applications
Benchtop Conductivity Meter LE-BCM201 is applied to monitor conductivity, salinity, resistivity, TDS, and temperature of liquid samples in laboratories, industrial installations, environmental monitoring, and educational institutions for testing water and solutions.
Lab Expo Benchtop Conductivity Meter are user-friendly devices with automatic recognition of calibration standards. They feature an LCD display and allow manual and automatic temperature compensation. Their auto-hold function freezes stable readings for easier recording. These devices also come with a reset function and auto power-off for energy efficiency. Our Benchtop Conductivity Meter provides reliable, accurate conductivity measurements with user-friendly features.
