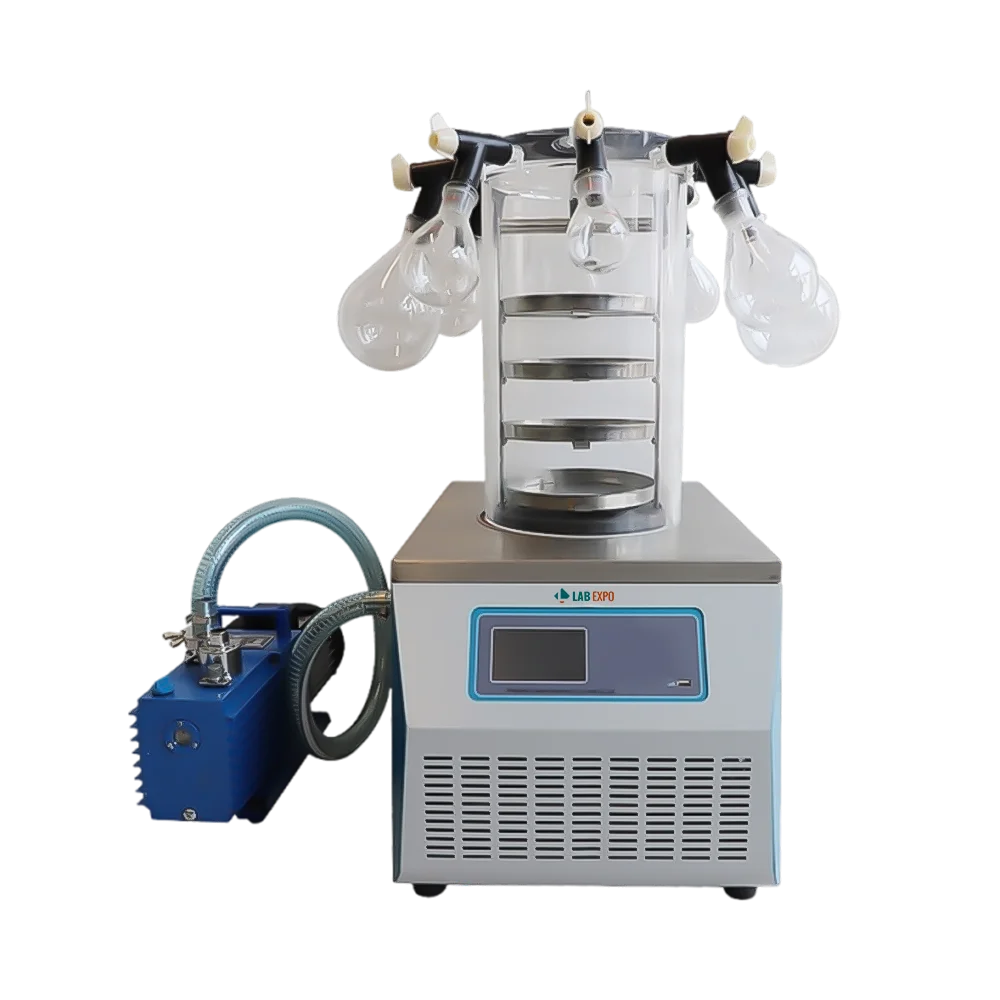

Manifold Freeze Dryer is a compact table-top unit with 3 kg condenser capacity and condenser temperature options of - 80 °C for specimen’s containing solvents .It allows larger glassware like flasks to be dried independent of the shelving units. Flasks can be added and removed independently without disturbing the surrounding flask’s activity. Built in oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.
Specifications
| Condenser temperature | - 80 °C |
| Condenser capacity | 3 kg / 24 h |
| Freeze drying area | 0.18 m² |
| Bulk capacity | 1.8 L |
| Display | LCD touch screen |
| Shelves | 4 - 6 shelves |
| Shelves dimension | Φ 200 mm |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Dimensions | 830 x 680 x ( 400 + 430 ) mm |
| Weight | 180 kg |
Features
Applications
Function Implementation Research labs 1.8 L bulk capacity handles large sample volumes Clinical settings -80 °C condenser temperature enables solvent-based specimen drying Industrial freeze drying 3 kg / 24 h condenser capacity supports high-throughput operations Quality control labs 0.18 m² freeze drying area allows for efficient sample processing Pharmaceutical facilities Final Vacuum of < 10 Pa ensures precise control over drying conditions
Lab Expo Benchtop Freeze Dryers support efficient lyophilization where compact footprint, stable vacuum control, and precise low-temperature condensation are required for sensitive samples. The system operates with regulated refrigeration at defined condenser temperatures and controlled vacuum to maintain consistent sublimation conditions. Corrosion-resistant cold traps, transparent doors, and digital monitoring support controlled operation, while versatile manifold configurations enable repeatable, adaptable freeze-drying performance for routine laboratory workflows.
