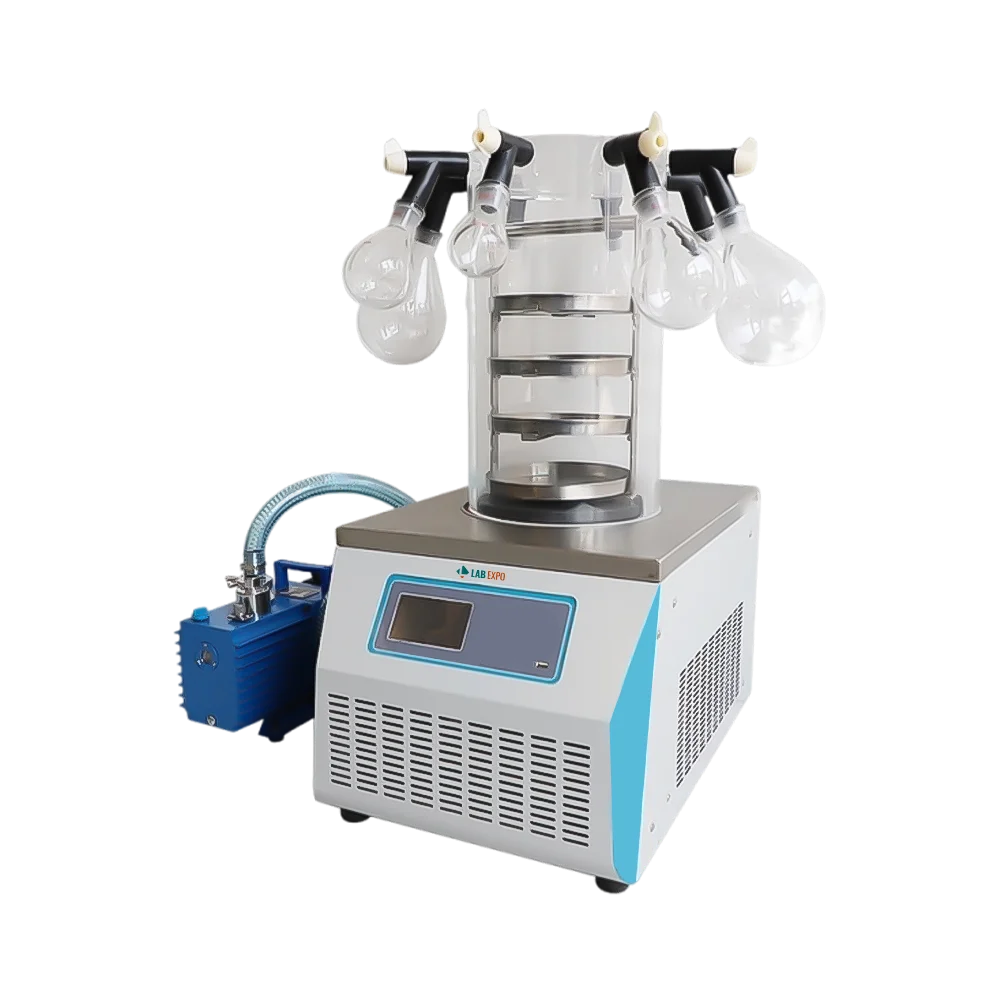

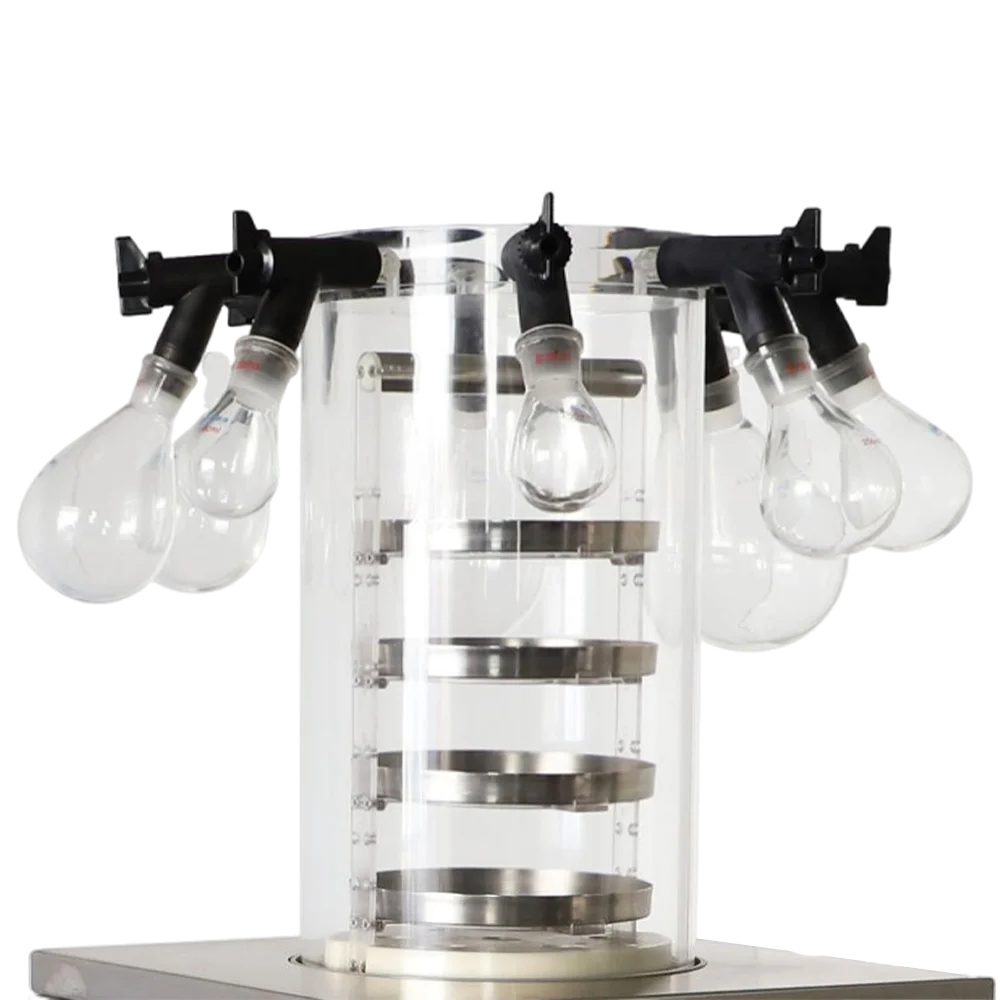

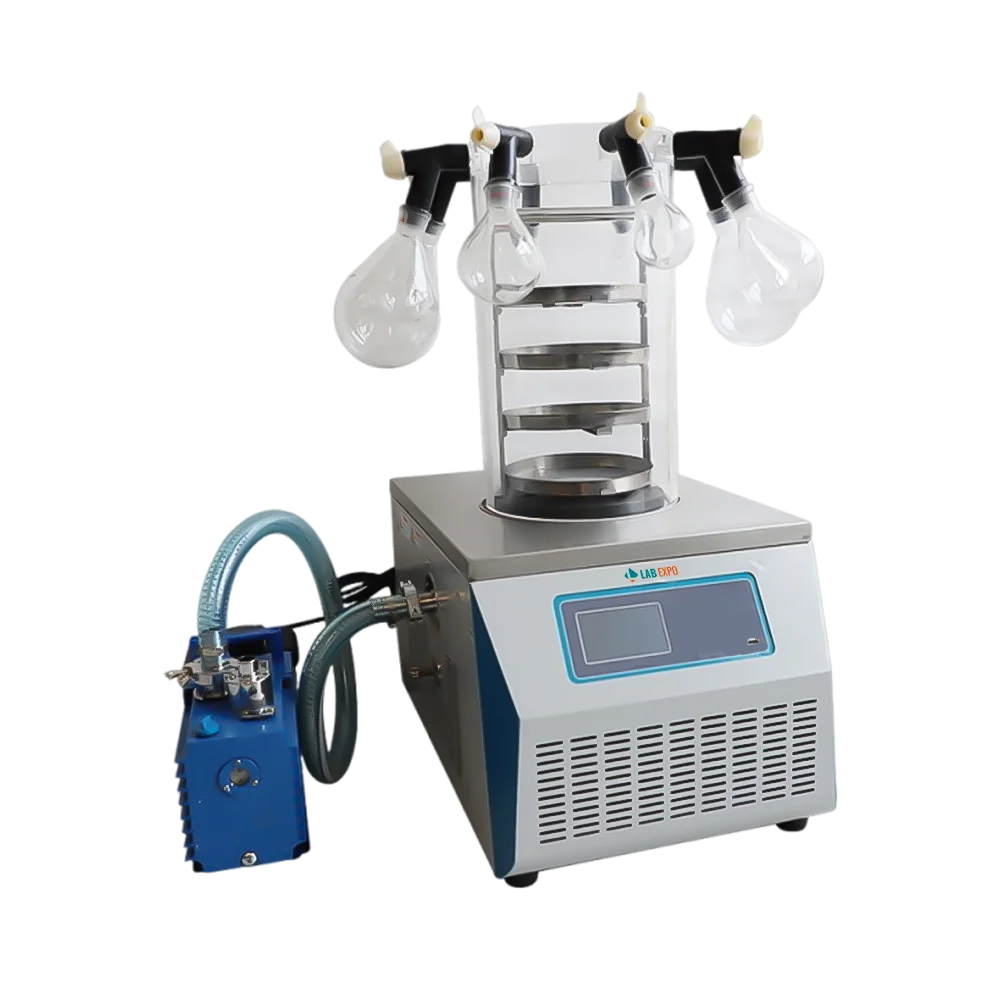

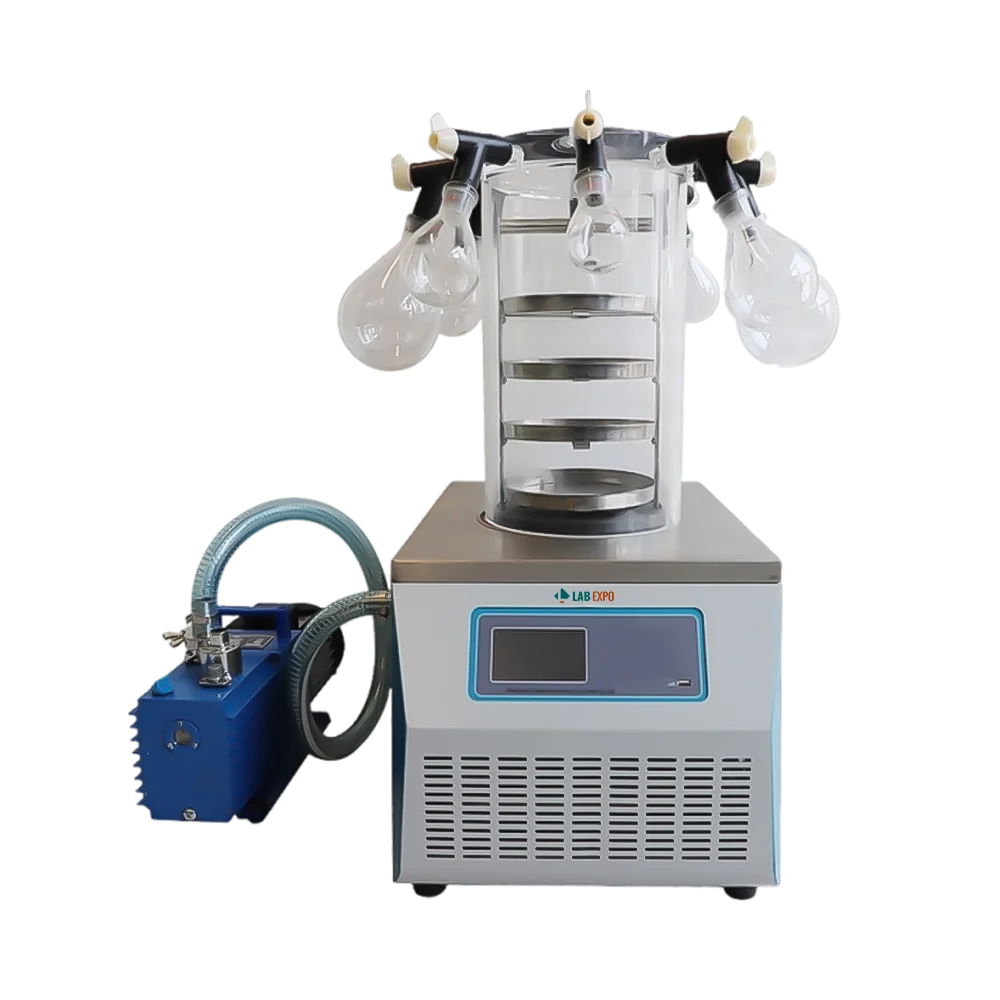

Manifold Top Press Freeze Dryer is a compact table-top unit with 3 kg condenser capacity and condenser temperature of -80 °C for specimen’s containing solvents. The manifolds allow lyophilization of wide spectrum of sample volumes. It facilitates the connection of eight different sizes of flasks ranging from 100 ml to 1000 ml. Precise vacuum control enables faster freeze drying and reproducible results.
$10,147.00 $ 8456
Specifications
| Condenser temperature | - 80 °C |
| Condenser capacity | 3 kg / 24 h |
| Freeze drying area | 0.1 m² |
| Bulk capacity | 1 L |
| Vial capacity Φ 12 mm | 492 pieces |
| Vial capacity Φ 16 mm | 279 pieces |
| Vial capacity Φ 22 mm | 147 pieces |
| Display | LCD touch screen |
| Shelves | 4 shelves |
| Shelves dimension | Φ 180 mm |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Dimensions | 830 x 680 x ( 400 + 430 ) mm |
| Weight | 185 kg |
Features
Applications
Function Implementation Research labs 279 vial capacity supports high-volume specimen processing Clinical settings -80 °C condenser temperature enables solvent-based specimen freeze drying Industrial freeze drying 3 kg/24h condenser capacity facilitates large-scale freeze drying operations Quality control labs 0.1 m² freeze drying area allows for precise control of freeze drying conditions Pharmaceutical manufacturing 220 V / 50 Hz voltage supports continuous operation in industrial environments
Lab Expo Benchtop Freeze Dryers support efficient lyophilization where compact footprint, stable vacuum control, and precise low-temperature condensation are required for sensitive samples. The system operates with regulated refrigeration at defined condenser temperatures and controlled vacuum to maintain consistent sublimation conditions. Corrosion-resistant cold traps, transparent doors, and digital monitoring support controlled operation, while versatile manifold configurations enable repeatable, adaptable freeze-drying performance for routine laboratory workflows.
