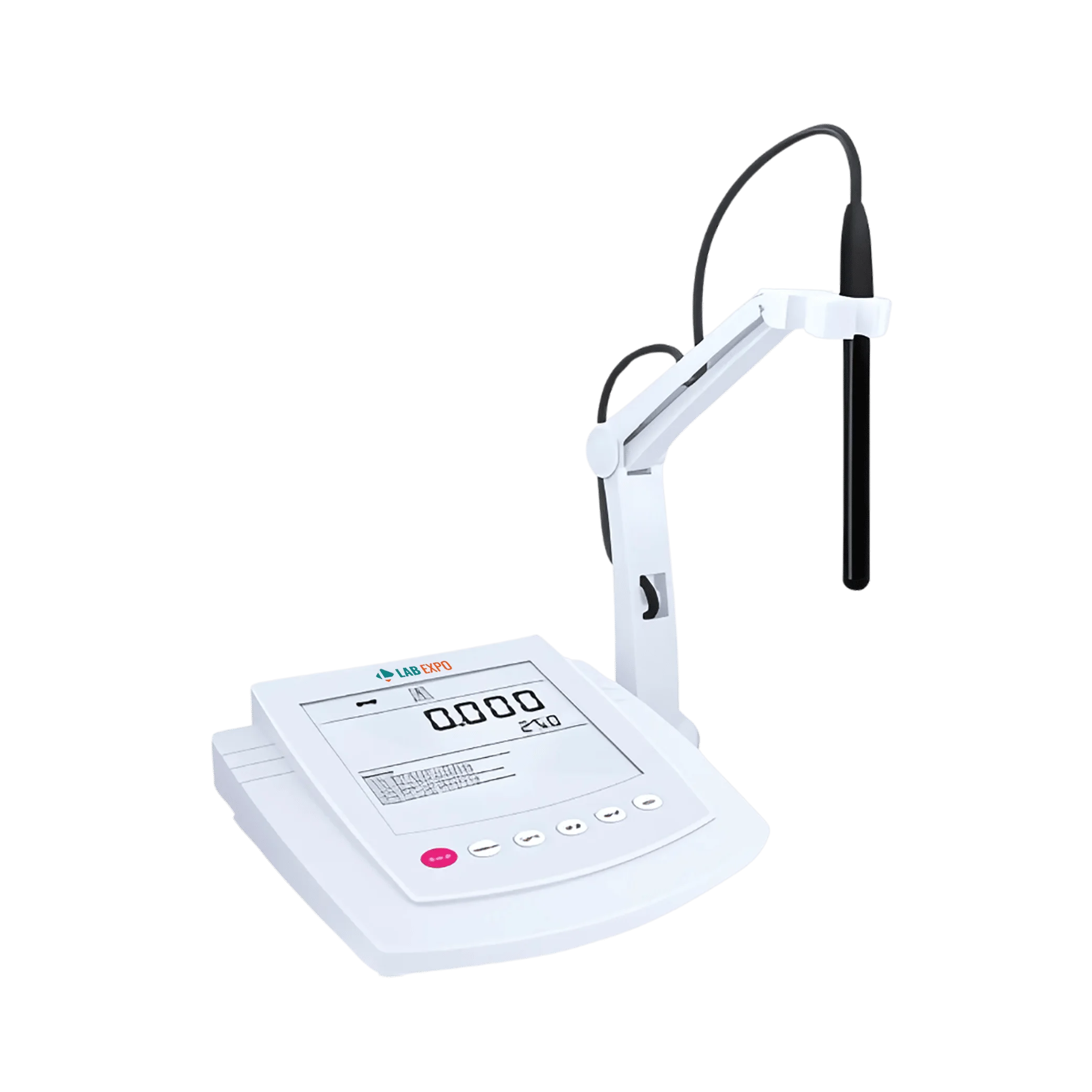

Benchtop Ion Meter 25-BIM108 enables accurate silver ion testing in a range of water samples. It provides an ion measurement accuracy of ±1% F.S., ensuring precise and dependable results. Equipped with a stability indicator to ensure consistent and reliable measurements. Integrated mV accuracy of ±0.2 mV for precise voltage readings. Our Benchtop Ion Meter is suitable for precise analysis of a variety of water samples, including drinking water, distilled water, and wastewater.
Specifications
| Ion measurement Range | Ag Range: 1 × 107 - 1 M, 0.01 - 107900 ppm |
| Ion measurement Accuracy | ± 1 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 kg |
Features
Applications
Benchtop Ion Meter 25-BIM108 is ideal for reliable and precise detection of silver ions across drinking water, distilled water, wastewater, and natural water environments.
Standard Accessories

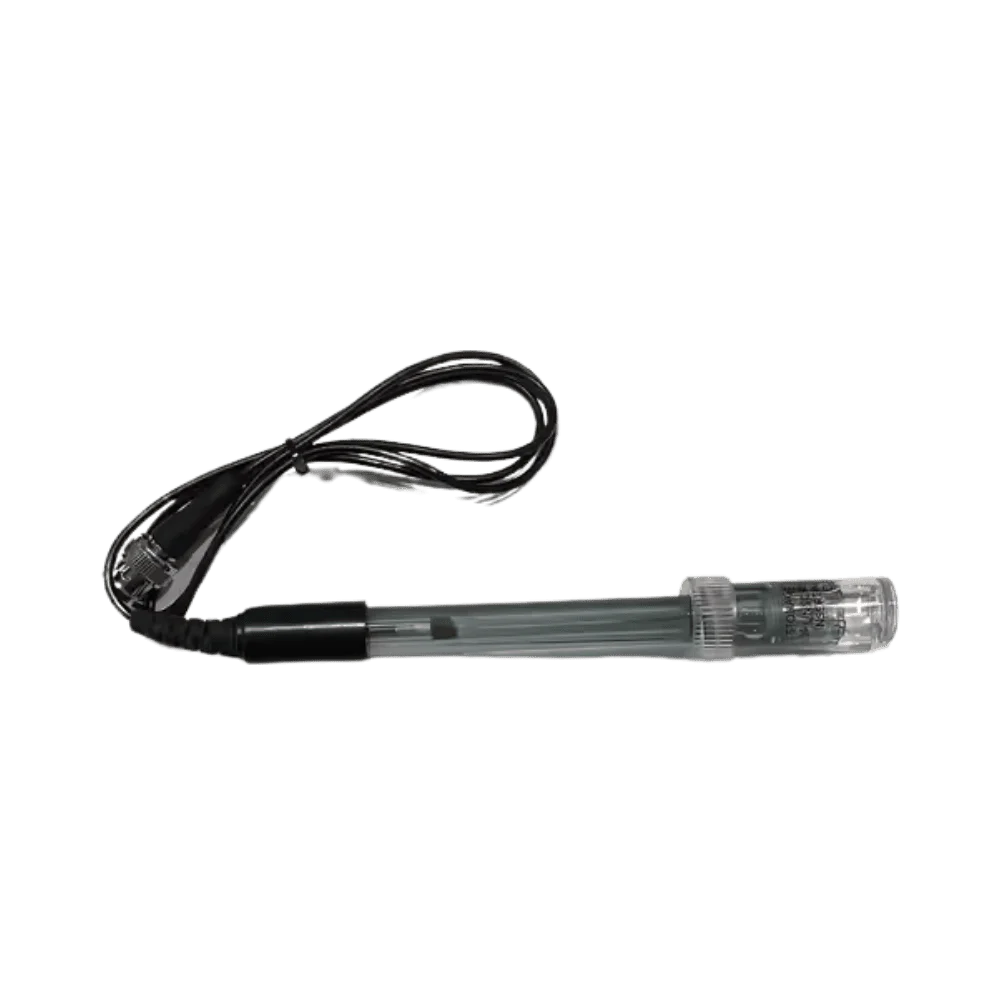

Ag ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter are precise ion concentration measurements using various ion selective electrodes. They have multi-point calibration for accuracy and automatic temperature compensation. This compact and durable design features a digital interface. Our Benchtop Ion meter provides reliable, accurate conductivity measurements for enhanced versatility.
