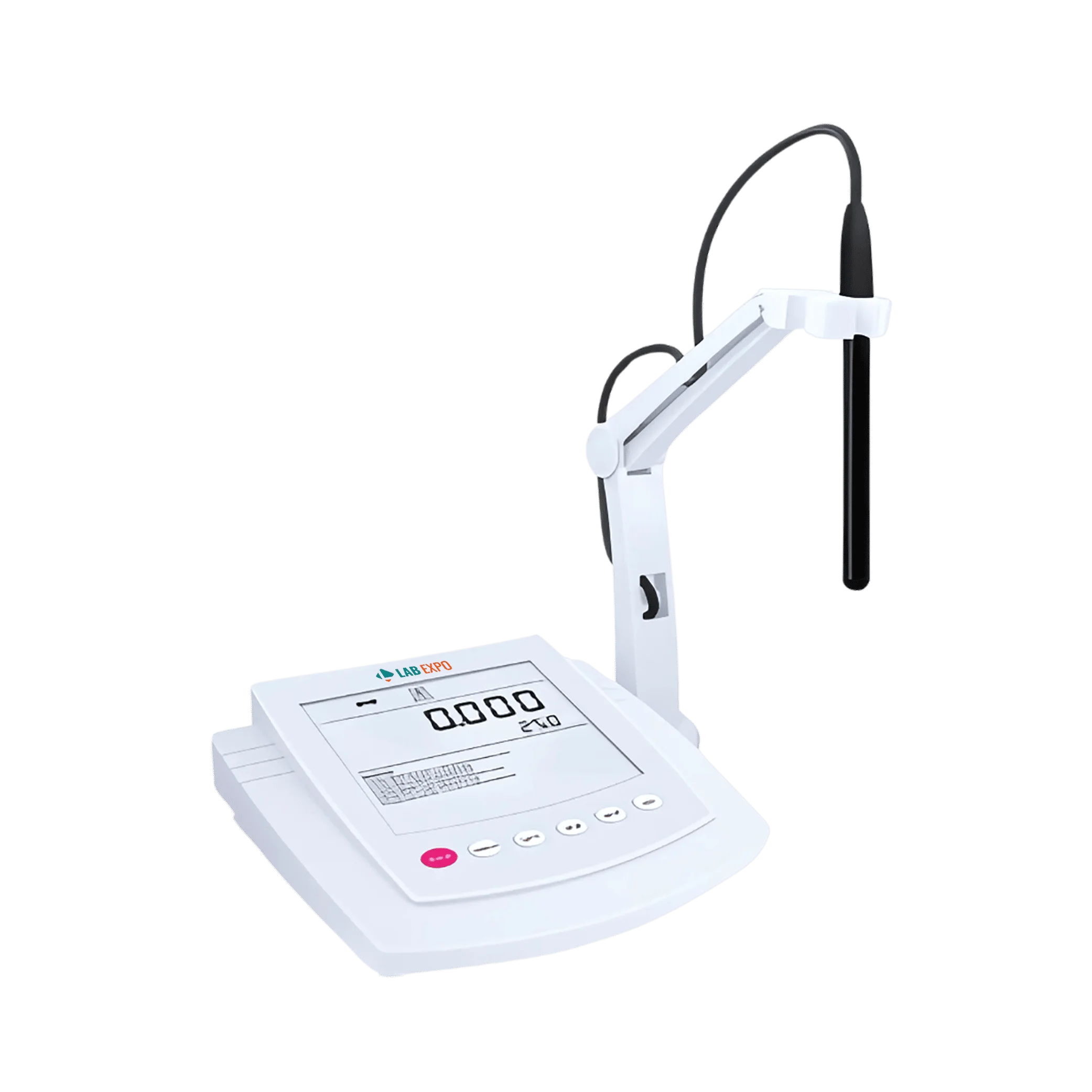

Benchtop Ion Meter 25-BIM113 is designed to perform precise cupric ion testing in a wide range of water samples. It offers an mV accuracy of ± 0.2 mV, ensuring highly precise readings. Equipped with a Cu measurement range of 0.06 to 6400 ppm for accurate cupric ion analysis. Built-in auto-hold function allows readings to be locked for easy recording and analysis. Our Benchtop Ion Meter is ideal for cupric ion testing across various water samples, including drinking water, distilled water, and wastewater.
$2,688.00 $ 2240
Specifications
| Ion Measurement Range | Cu Range: 1×108 - 1M, 0.06-6400 ppm |
| Ion Measurement Accuracy | ± 1 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data hold function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 kg |
Features
Applications
Benchtop Ion Meter 25-BIM113 is suitable for measuring cupric ion concentration in various water samples, including drinking water, distilled water, natural water sources, and wastewater.
Standard Accessories

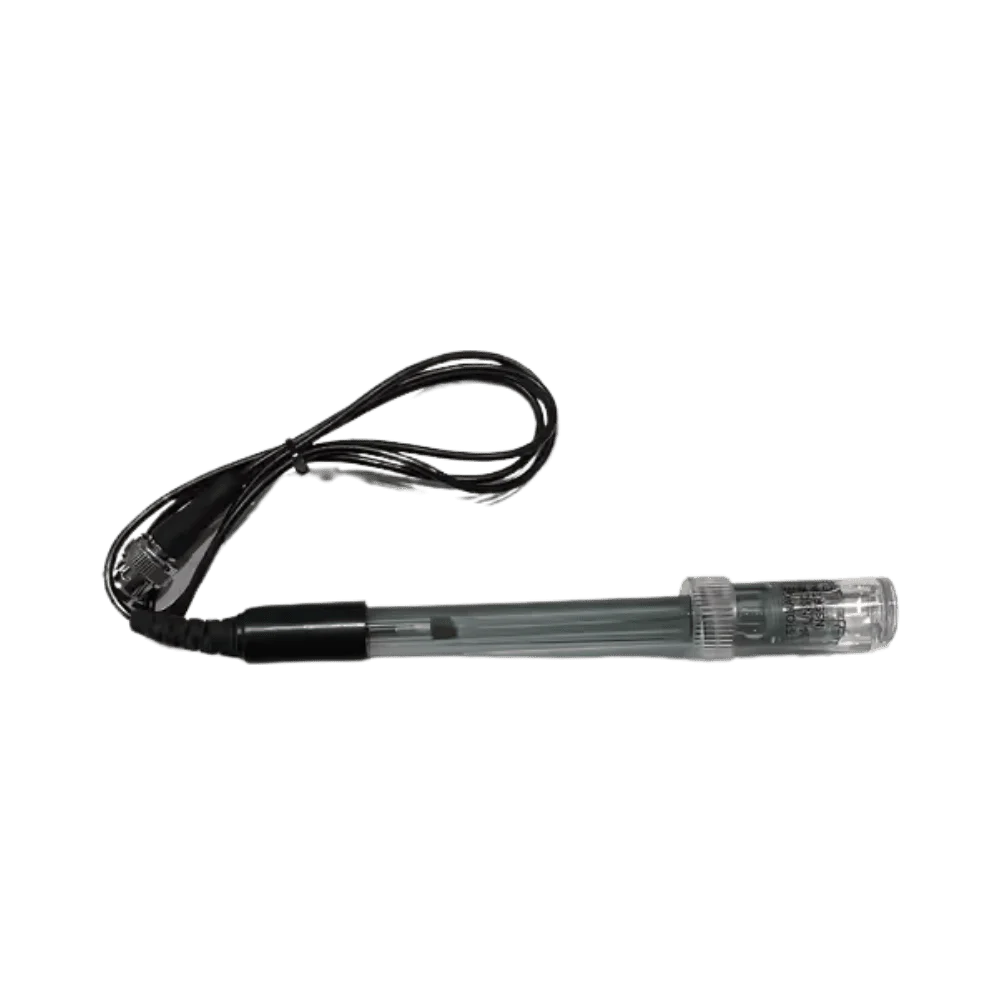

Cu ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter are precise ion concentration measurements using various ion selective electrodes. They have multi-point calibration for accuracy and automatic temperature compensation. This compact and durable design features a digital interface. Our Benchtop Ion meter provides reliable, accurate conductivity measurements for enhanced versatility.
