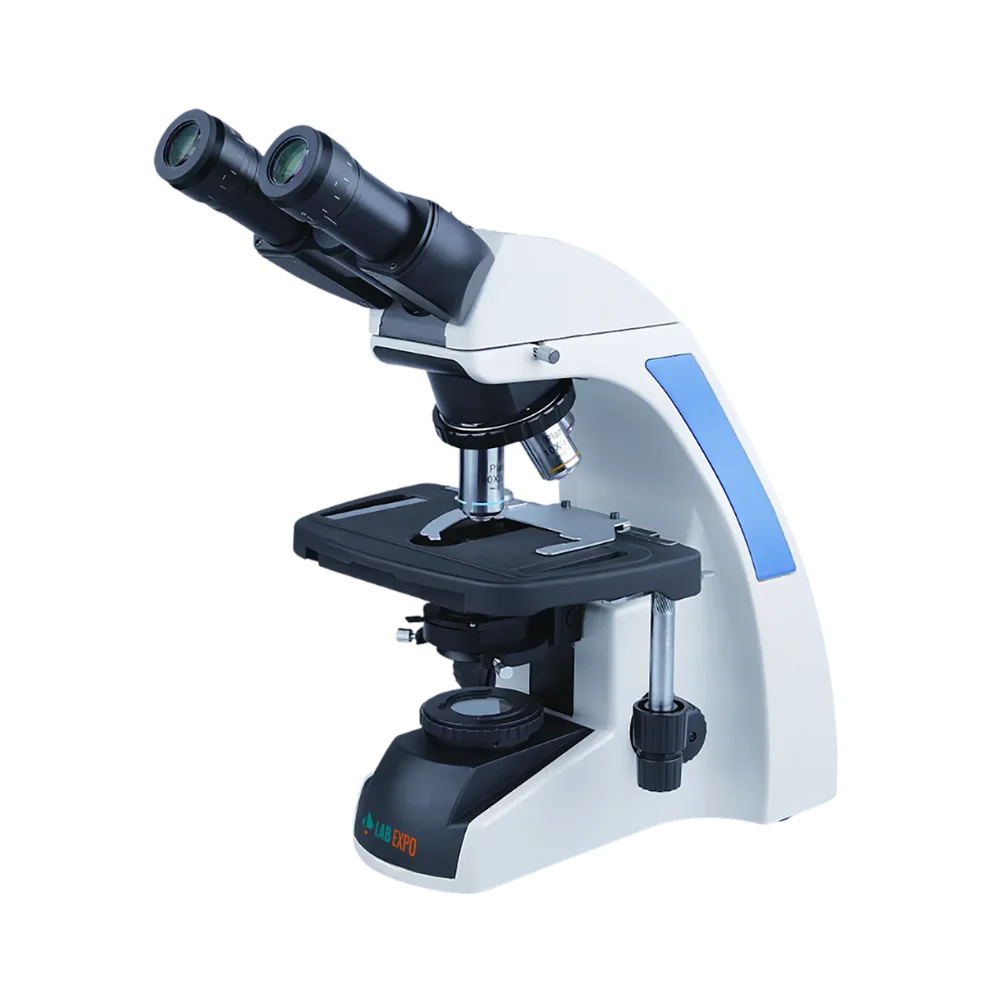

Biological microscope is easy to operate. With backward nosepiece design, it’s coarse and fine focusing adjustment helps in better observation of the specimen. The microscope comes with 3W LED as external source of illumination. Being compact and light in weight, it is perfect for routine microscopic analysis at research institutes, colleges.
Specifications
| Optical system | Infinite optical system |
| Viewing Head | Siedentopf Binocular viewing head, Interpupillary distance range 48 - 75 mm, Inclined at 30° |
| Eyepiece | Wide Field Eyepiece WF 10 X / F.N. 22 mm |
| Nosepiece | Backward quadruple nosepiece |
| Objective | Infinite high contrast chromatic free full plan,Objectives: 4 x, 10 x, 40 x, 100 x |
| Stage | Double layer mechanical stage: 216 mm × 150 mm Graphite surface Moving range: 75 mm × 55 mm |
| Focusing | Coaxial coarse & fine adjustment, Fine division 0.001mm Coarse stroke 37.7 mm/Rotation Fine stroke 0.1mm/Rotation Moving range 24 mm |
| Condenser | Abbe N.A. 1.25 condenser with Diaphragm |
| Illumination | External Illumination 3W / LED (Kohler) |
| Dimension | 530 × 325 × 390 mm |
| Net weight | 7 kg |
| Gross weight | 9 kg |
Features
Applications
Biological Microscope can be used for routine microscopic analysis of samples in laboratories, institutes, colleges. They are used in research labs for obtaining fine and sharp image quality with superior adjustment.
Optional Accessories
Siedentopf trinocular viewing head
Trinocular adapter
Wide Field Eyepiece WF 16 X/15 mm, WF 20 X / 12 mm
C mount 0.5 X
Backward quadruple nosepiece
Dark Field Attachment
Phase Contrast Attachment
Phase contrast kit (10 x, 20 x, 40 x, 100 x)
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
