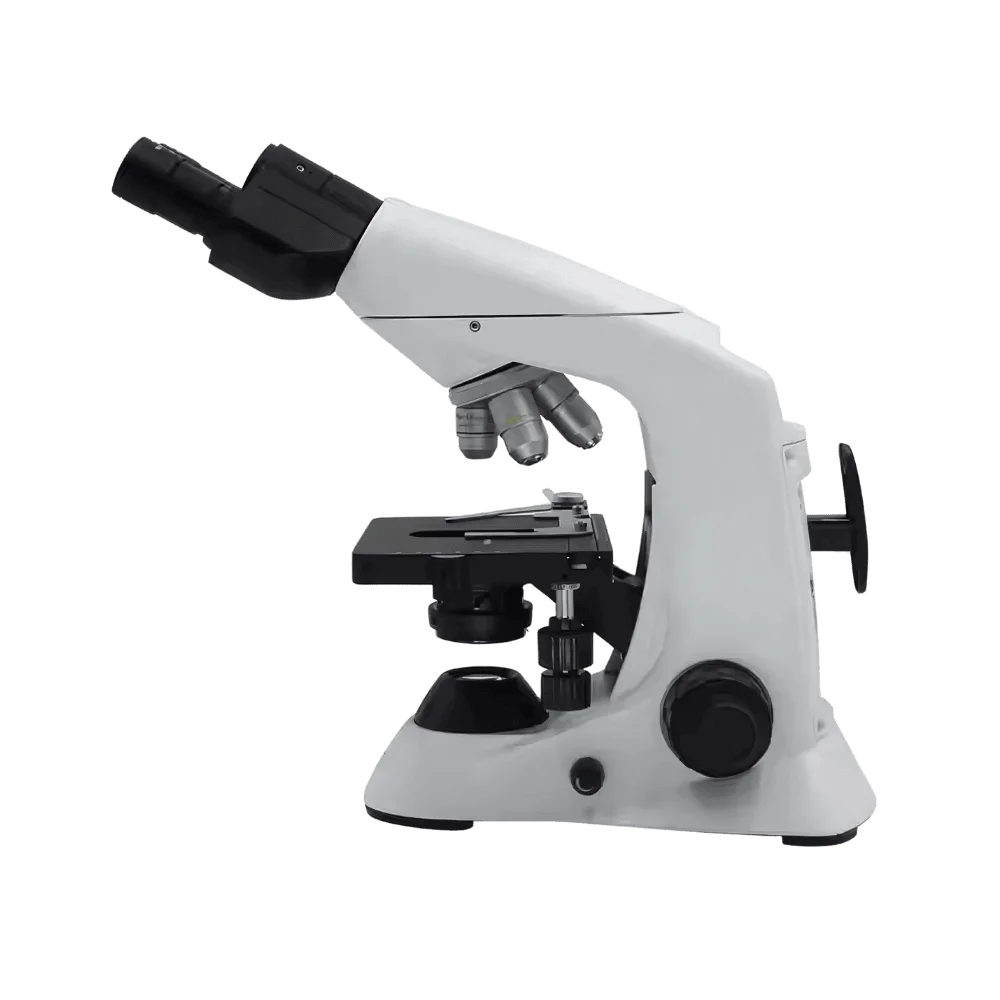

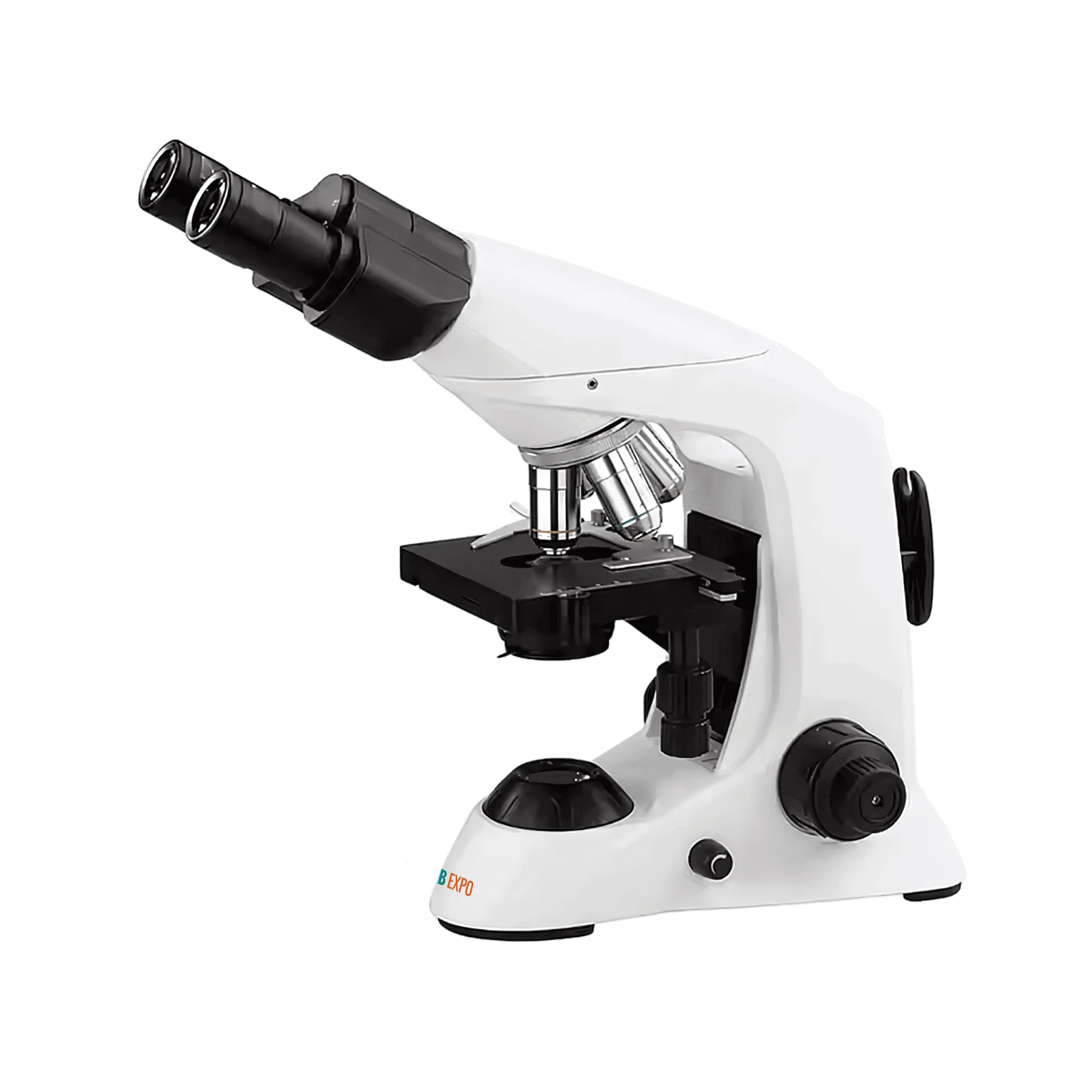

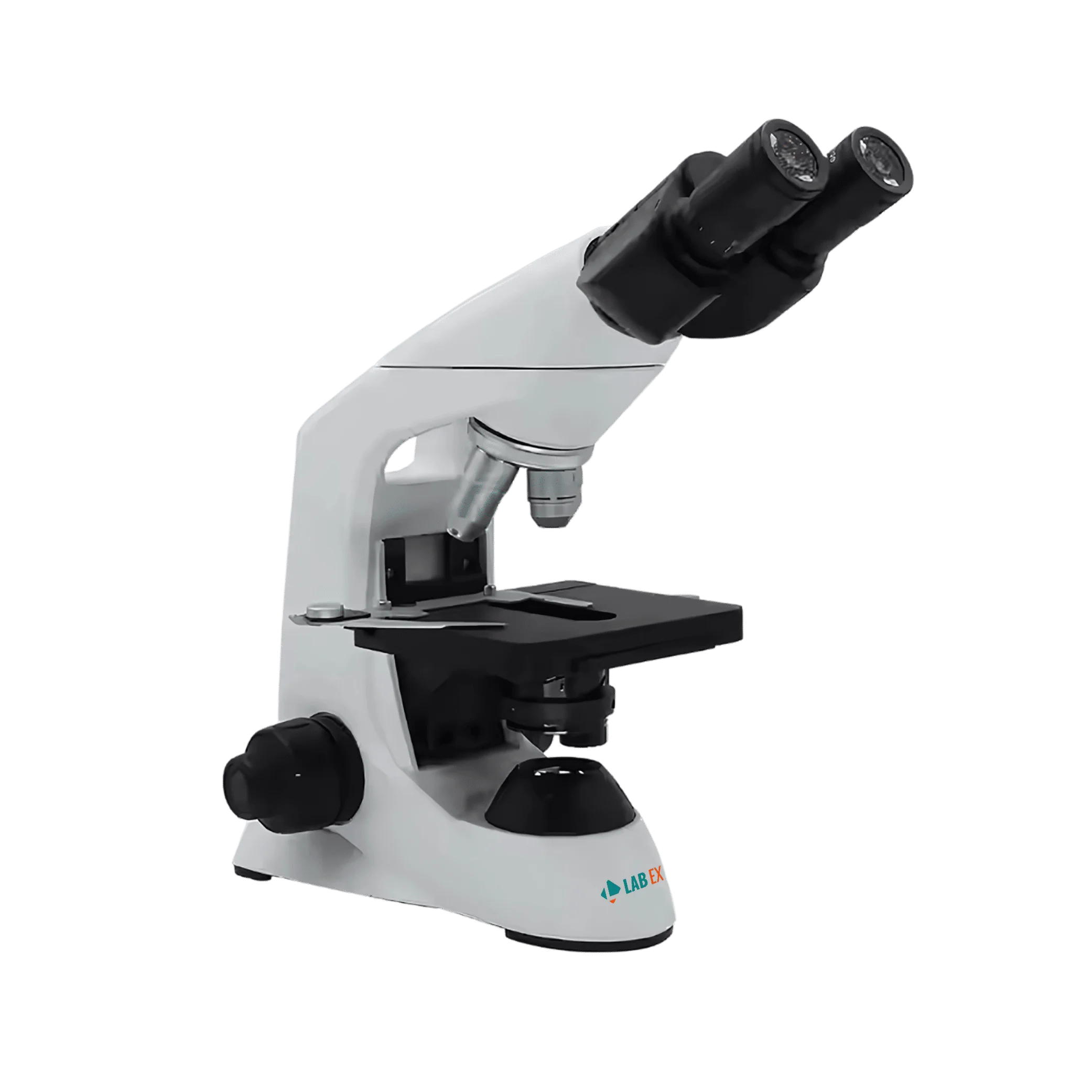

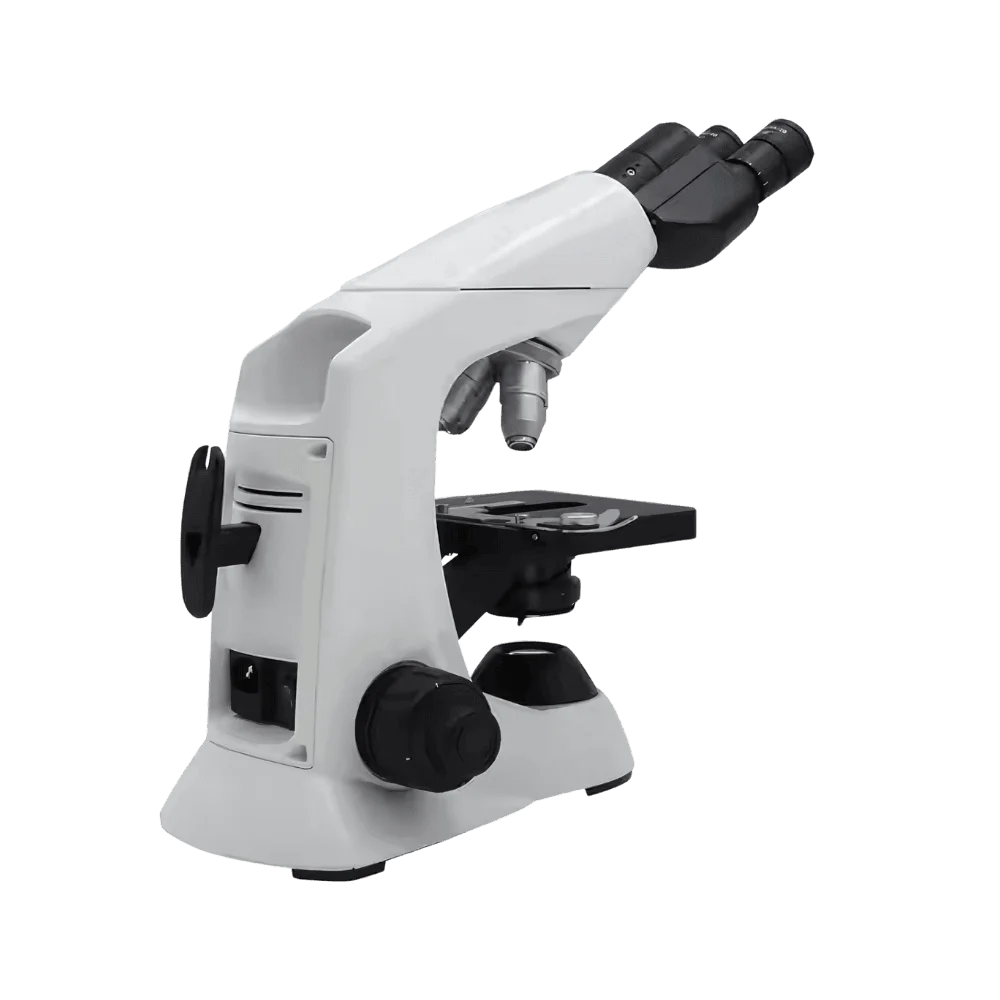

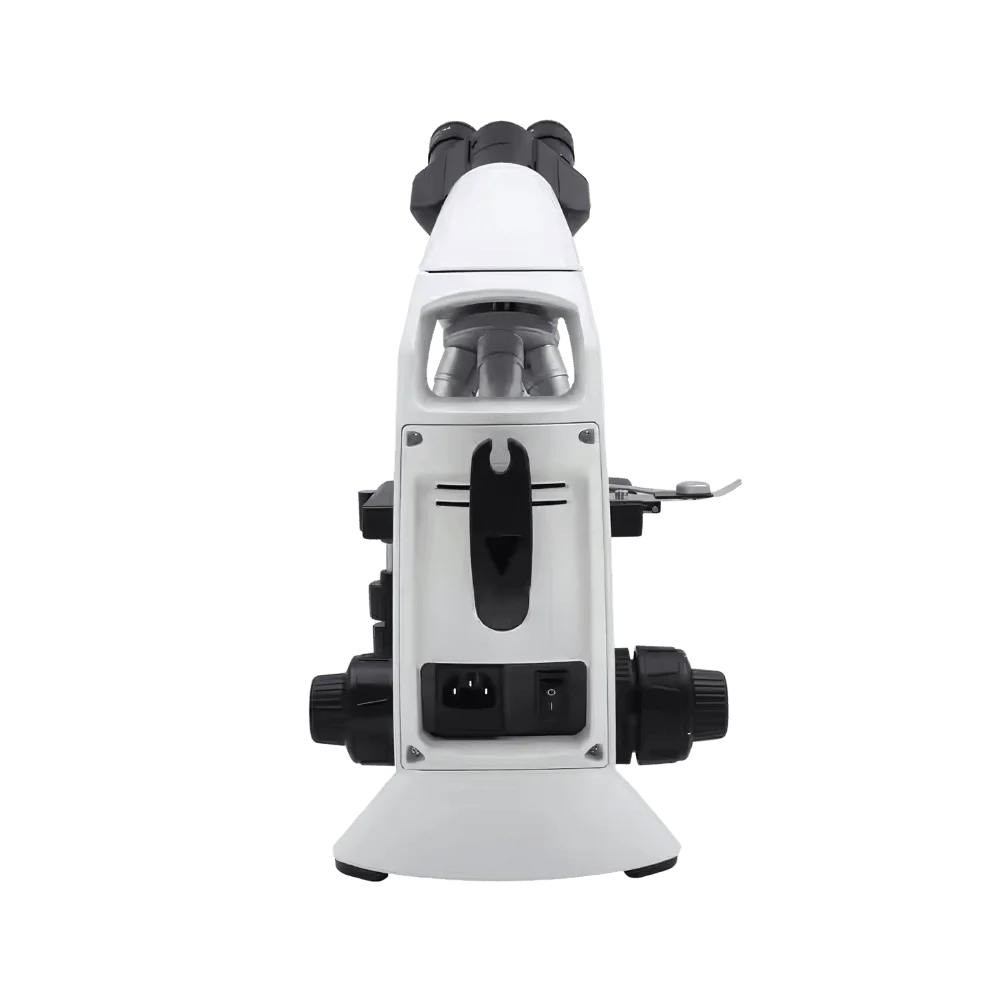

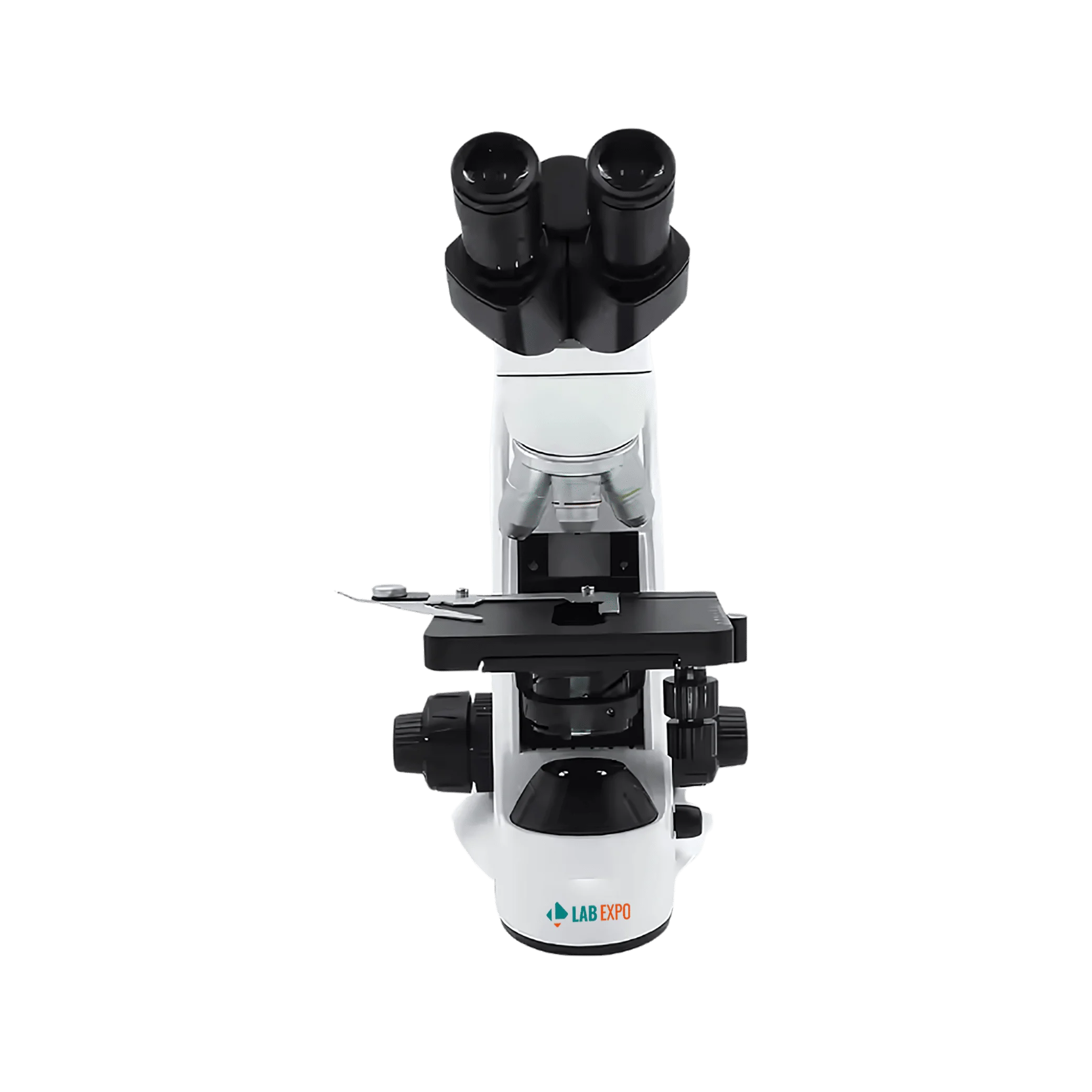

Biological Microscope 43-BMS301 is useful for fine & coarse focusing of specimens very quickly & sharply. This microscope is ergonomically designed and is convenient for long term use. 3W LED lamp is used as aspheric illumination source. They are user-friendly in nature.
$2,731.00 $ 2276
Specifications
| Optical system | Infinite optical system |
| Viewing Head | Siedentopf binocular head, inclined at 30º, interpupillary distance range 50 - 75 mm, eyepiece tube rotation 360º |
| Eyepiece | WF 10 X / 20 mm (high eye point) |
| Nosepiece | Quadruple nosepiece |
| Objective | Infinite plan objective: 4 x, 10 x, 40 x(s), 100 x(s,oil) |
| Stage | Mechanical stage Size: 125 × 120 mmTravel range: 76 × 30 mm Scale: 0.1 mm |
| Condenser | Abbe condenser N.A. 1.25 with iris diaphragm |
| Illumination | 3 W LED illumination, voltage 100 ~ 240 |
| Wire winding device | Wire winding device for the microscope |
| Dimension | 340 × 260 × 470 mm |
| Net weight | 6 kg |
| Gross weight | 7 kg |
Features
Applications
Biological Microscopes are designed to be used for research studies, routine microscopic analysis of samples in laboratories, institutes, colleges.
Optional Accessories
Dark field ring (dry N.A. 0.9)
Polarizing unit: Polarizer, Analyzer
1 x C - mount (available for digital photography)
0.5 x C - mount(available for digital camera)
Objective: Infinite plan 60 x, Infinite plan 100 x, (s,water)
Trinocular head
Mechanical stage: Size 145 mm × 140 mm Travel range: 76 mm × 52 mm
Scale: 0.1 mm
Two slide holder
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
