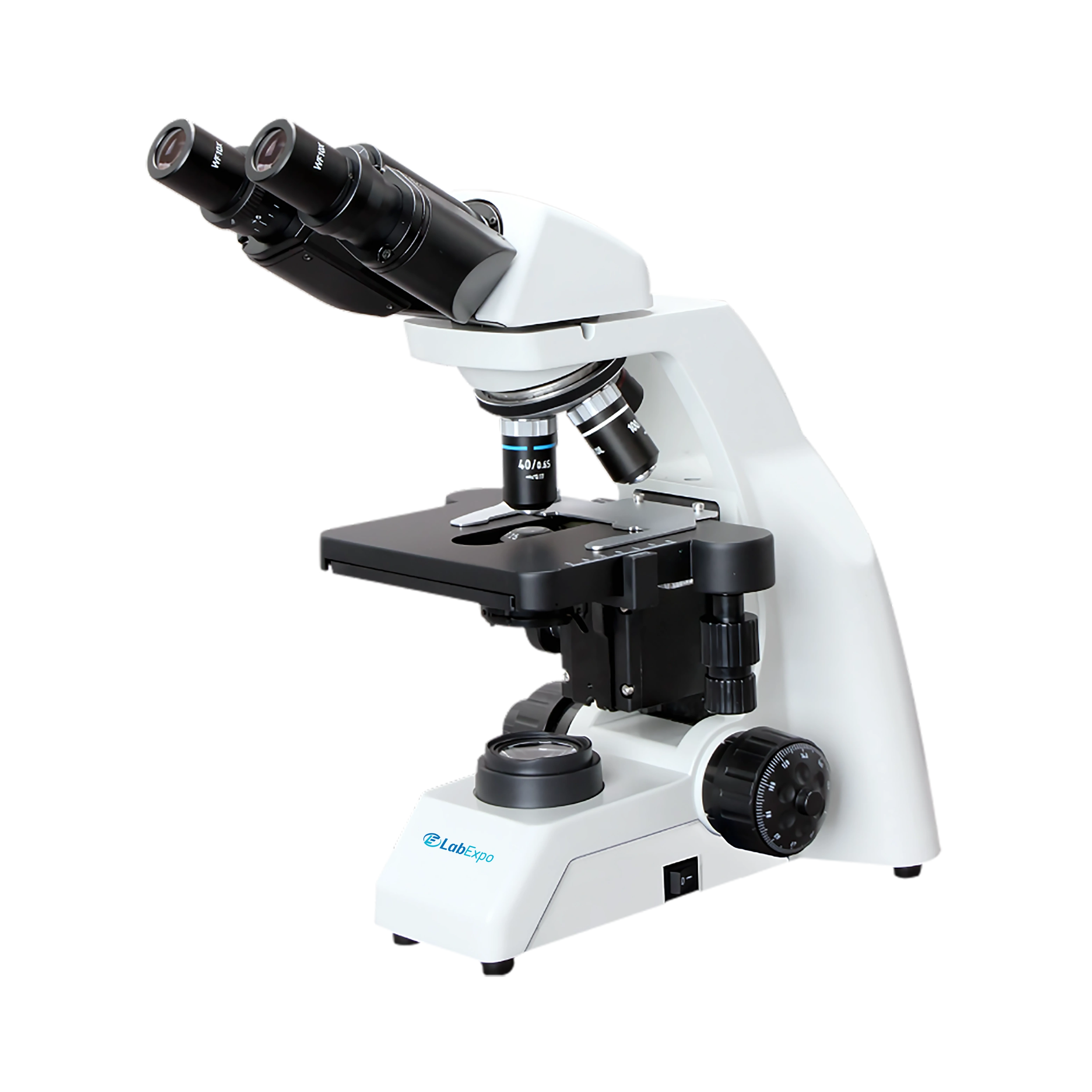

Biological Microscope LE-BM302 provides sharp image display with excellent optical performance. Equipped with a finite optical system for accurate and reliable observation. Integrated stand design ensures compact structure and minimal space usage. Incorporated anti-mould technology supports stable performance. Our Biological Microscope is suitable for educational, clinical, and laboratory applications.
Specifications
| Optical System | Finite Optical System |
| Eyepiece | WF10×/18 |
| Viewing Head | Hinged type Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm |
| Achromatic Objective | 4× NA=0.1 WD=18 10× NA=0.25 WD=7 40× NA=0.65 WD=0.53 100× NA=1.25 WD=0.13 |
| Nosepiece | Backward Quadruple Nosepiece |
| Stage | Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm |
| Condenser | NA1.25 Abbe Condenser Dark Field Condenser (Dry, Oil) |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm |
| Illumination | Halogen Lamp 6V/20W S-LED Illumination S-LED Illumination with Recharger Kohler Illumination ECO Function Plane-concave Mirror |
| Fluorescent Attachment | Fluorescent Illumination, 100W HBO lamp |
Features
Applications
Biological Microscope LE-BM302 is suitable for educational, clinical, and laboratory applications.
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
