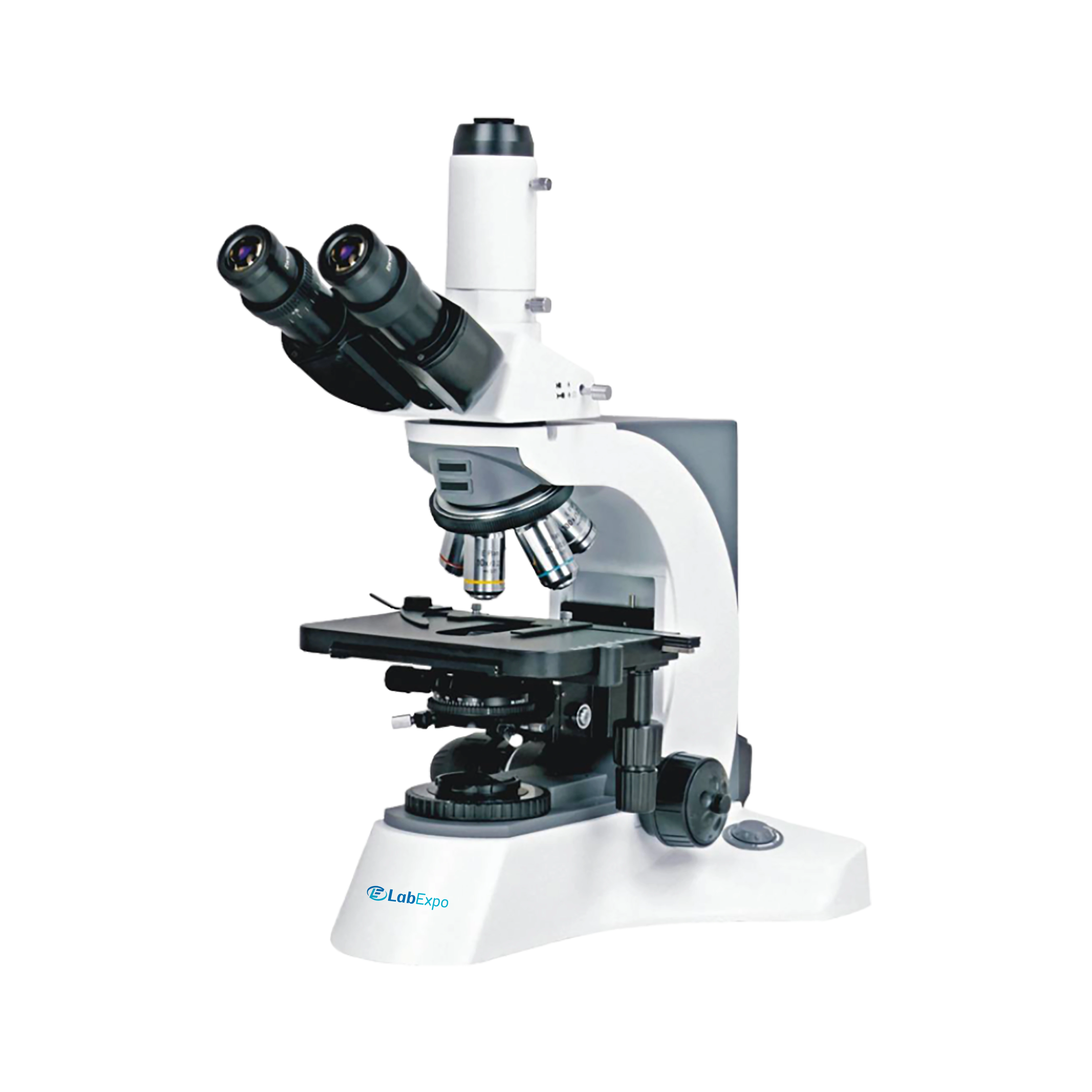

Biological Microscope LE-BM304 delivers excellent image quality with infinite optical system and kohler illumination. Equipped with a low and forward-positioned coaxial focus system for precise adjustments. Integrated focusing and brightness knobs are conveniently located for easy access. Incorporated stable integral structure and ergonomic design ensure user comfort and durability. Biological Microscope is perfect for laboratories, research, and educational applications.
$4,128.00 $ 3440
Specifications
| Optical System | Infinite Optical System |
| Viewing Head | Hinged Type Trinocular Head, Inclined at 30°, Interpupillary 48 to 75mm |
| Eyepiece | Extra Wide Field Eyepiece EW10X/23, Eyepiece Tube Diameter 30mm |
| Nosepiece | Backward Quintuple Nosepiece |
| Objective | Infinite Plan Achromatic Objective 4X, 10X, 40X,100X Infinite Plan Achromatic Objective 20X,60X Plan S-Apo Objective 4X, 10X, 20X, 40X,100X |
| Condenser | NA0.9/ 0.25 Swing Condenser N.A.0.9/0.25 |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm |
| Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm |
| Kohler Illumination | External Illumination, Asperical Collector, Halogen Lamp 6V/ 30W External Illumination, Asperical Collector, Halogen Lamp 24V/ 100W LED Illumination, 3W or 5W |
| Video Adapter | C Mount 1X C Mount 0.5X |
| Dark Field Attachment | Dark-field Condenser (Dry) Dark-field Condenser (Oil) |
| Epi-Fluorescent Attachment | Mercury lamp or LED Illumination |
Features
Applications
Biological Microscope LE-BM304 is perfect for laboratories, research, and educational applications.
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
