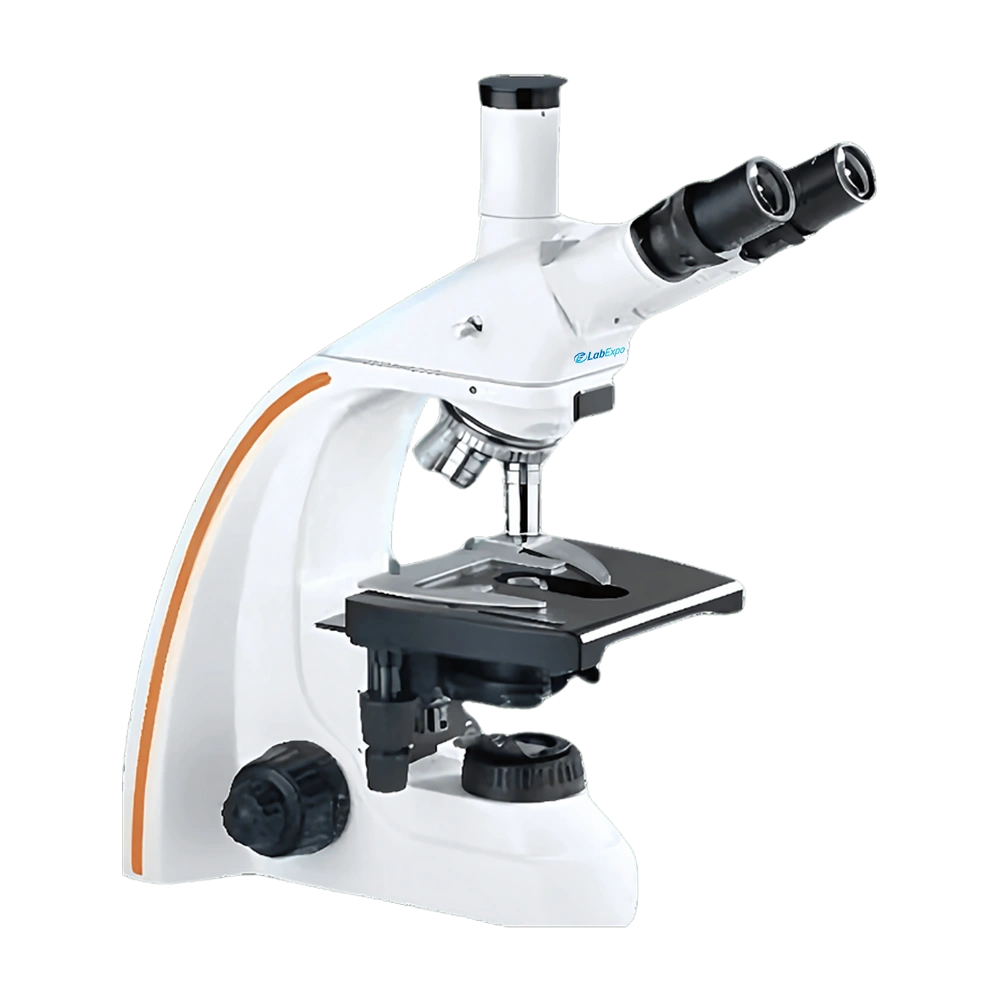

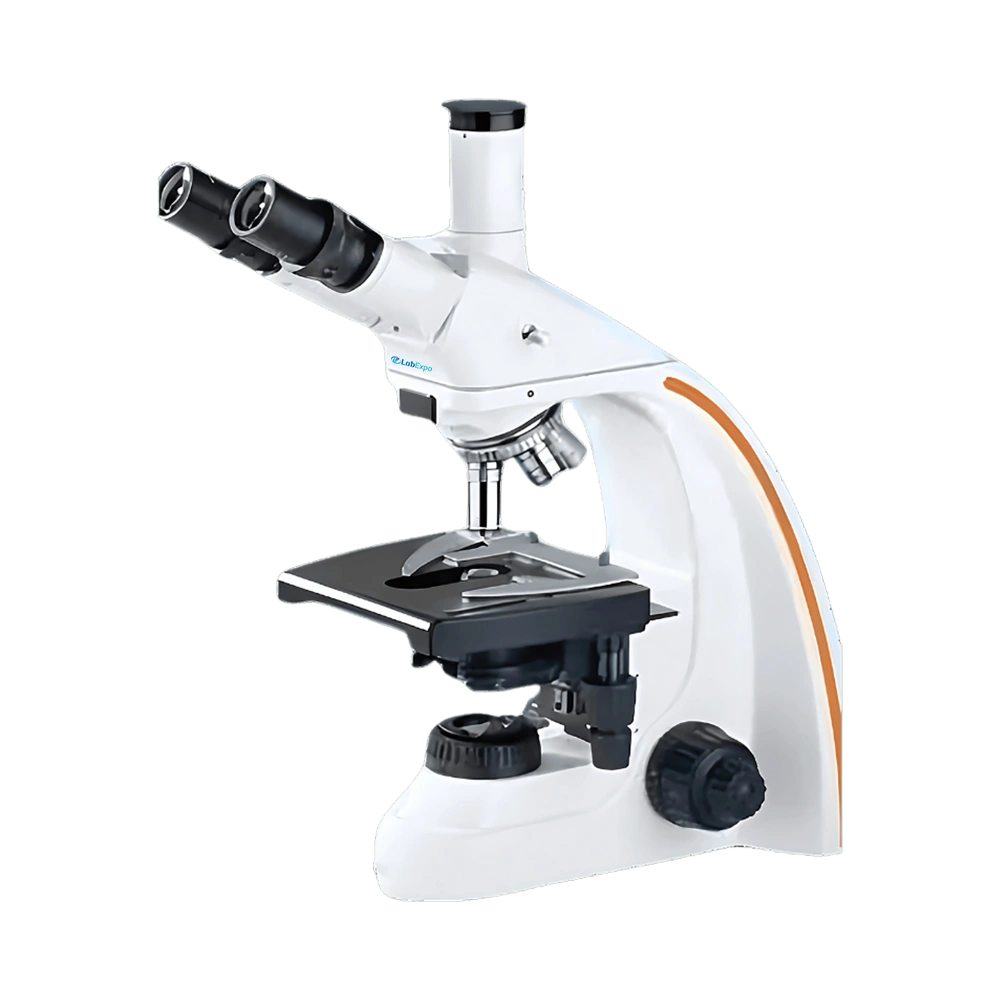

Biological Microscope LE-BMI103 is a binocular microscope with 30º inclined head and a backward nosepiece. Equipped with coarse and fine focus adjustments for sharp imaging and easy operation. Integrated with an ergonomic structure for extended use in various lab environments. Built illumination system provides consistent lighting for routine microscopic analysis. Our Biological Microscope is ideal for research institutes and educational laboratories for everyday biological studies.
$1,997.00 $ 1664
Specifications
| Optical System | Infinite optical system |
| Viewing Head | Siedentopf Binocular viewing head, interpupillary distance range 48-75 mm, Inclined at 30º |
| Eyepiece | Wide Field Eyepiece WF10X/F.N. 22 mm |
| Nosepiece | Backward quadruple nosepiece |
| Objective | Infinite high contrast chromatic free full plan, Objectives: 4x, 10x, 40x, 100x |
| Stage | Double-layer mechanical stage: 216×150 mm, Graphite surface Moving range: 75×55 mm |
| Focusing | Coaxial coarse & fine adjustment, Fine division 0.001 mm, Coarse stroke 37.7 mm/Rotation, Fine stroke 0.1 mm/Rotation, Moving range 24 mm |
| Condenser | Abbe N.A. 1.25 condenser with Diaphragm |
| Illumination | External Illumination 3W /LED (Kohler) |
| Dimension | 530×325×390 mm |
| Net weight | 7 Kg |
| Gross weight | 9 Kg |
Features
Applications
Biological microscope LE-BMI103 is used in laboratories, institutes, and colleges for routine microscopic analysis, as well as in research settings for capturing fine, sharp images with precise adjustments.
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
