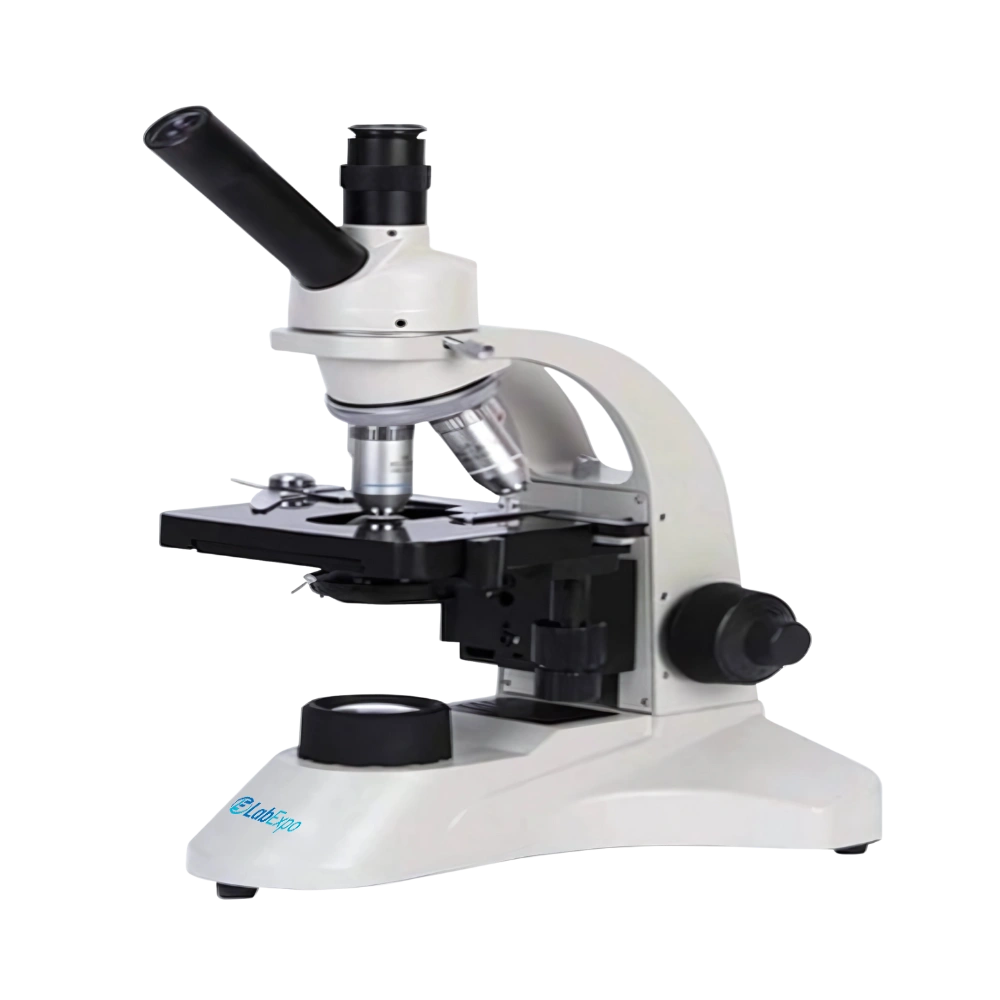

Biological Microscope LE-BMI104 offers 45°inclined monocular head with a finite optical system for precise biological observation. Equipped with achromatic objectives for sharp imaging across various magnifications. Incorporated with an ergonomic design, it supports user comfort during prolonged lab work. Built-in CCD camera compatibility enables digital imaging and documentation. Our Biological Microscope is ideal for academic training, clinical diagnostics, and routine sample analysis in laboratories.
Specifications
| Optical System | Finite Optical System |
| Viewing Head | Monocular viewing head, 45° inclined, 360° rotation |
| Magnification | 40X to 1600X |
| Objectives | 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil) |
| Eyepiece | Wide field WF10X/18mm and Wide field WF16X/15mm |
| Nosepiece | Inward, quadruple revolving nosepiece |
| Focusing system | Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm |
| Stage | Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm |
| Condenser | Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob |
| Illumination | 3W LED lamp, brightness adjustable |
| Power Supply | External power supply (adapter), AC 100V-240V, DC 5V/2A |
| Power Consumption | 110 W |
| Weight | 10 Kg |
Features
Applications
Biological Microscope LE-BMI104 is widely used in clinical research, educational institutions, life science laboratories, research centres, and teaching environments.
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
