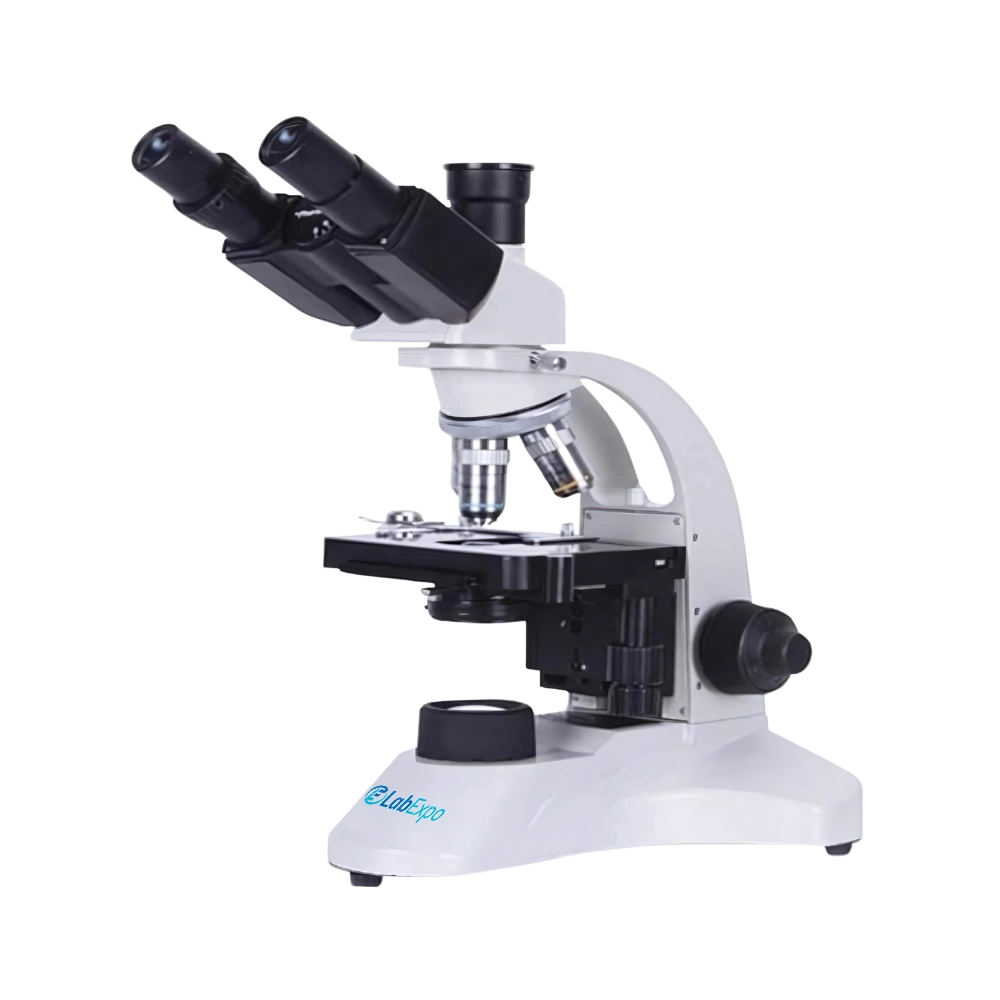

Biological Microscope LBM-BMI105 offers a trinocular 30° inclined head with a finite optical system for detailed observation. It incorporates plan achromatic objectives and an ergonomic design for clear imaging and user comfort. Equipped with CCD camera compatibility for digital imaging and documentation. Built-in coarse and fine focusing mechanism offers precision control across all magnification levels. Our Biological Microscope is ideal for advanced research, clinical diagnostics, and laboratory applications.
$2,198.00 $ 1832
Specifications
| Optical System | Finite Optical System |
| Viewing Head | Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm |
| Magnification | 40X to 1600X |
| Objectives | Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil) |
| Eyepiece | Wide field WF10X/18mm and Wide field WF16X/15mm |
| Nosepiece | Inward, Quadruple revolving nosepiece |
| Focusing system | Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm |
| Stage | Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm |
| Condenser | Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob |
| Illumination | 3W LED lamp, brightness adjustable |
| Power Supply | External power supply (adapter), AC 100V-240V, DC 5V/2A |
| Power Consumption | 110 W |
| Weight | 14 Kg |
Features
Applications
Biological Microscope LE-BMI105 is used for microscopic examination across medical, tissue culture industries, gemology, metallurgy, as well as inspection of electrical boards, and others.
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
