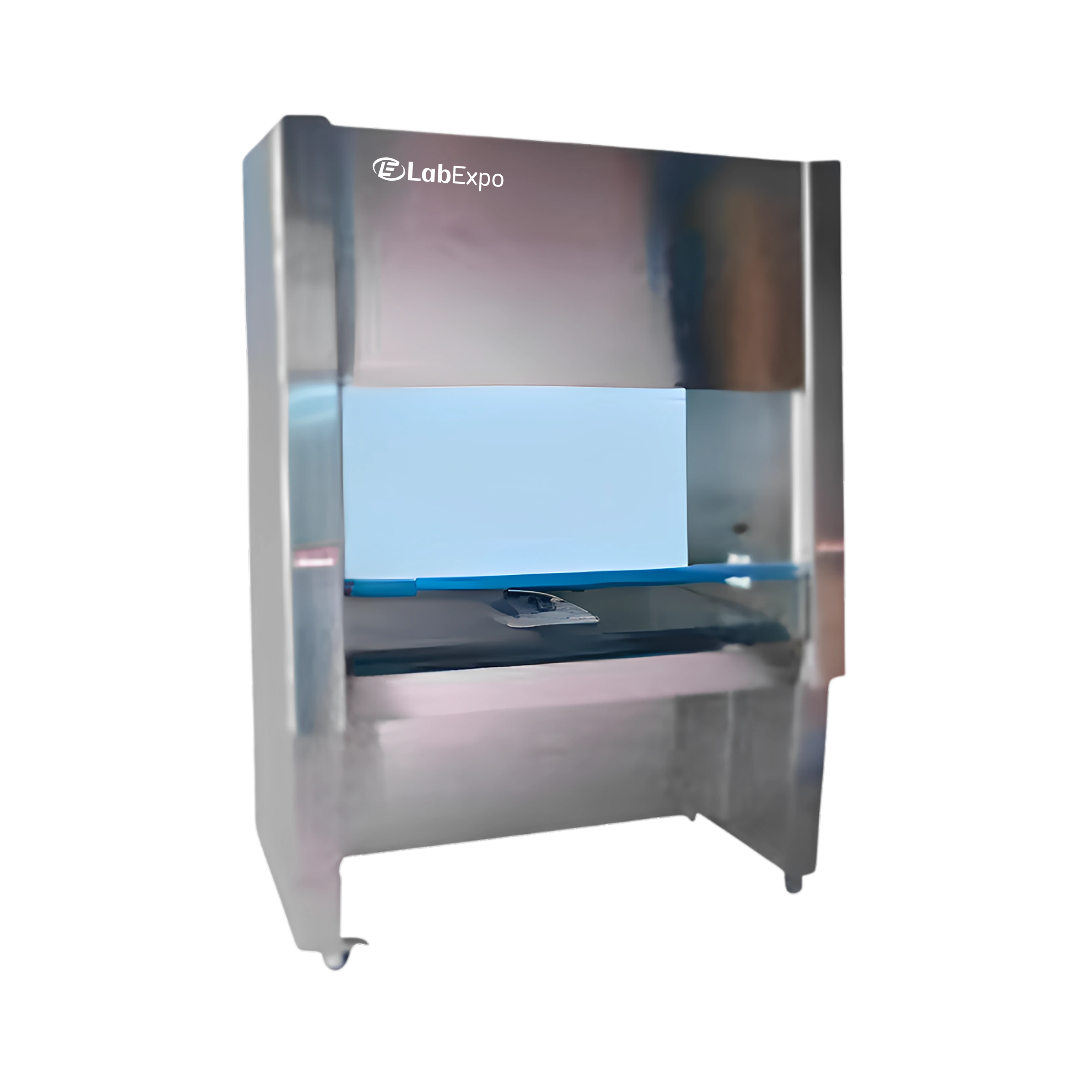

Biological Safety Cabinet is a Class II type A2 safety level 2 enclosed cabinet unit with 70% of the HEPA filtered air recirculated through the cabinet and 30% discharged through an exhaust HEPA filter to the environment. It is used to handle minute quantities of volatile toxic chemicals and trace amounts of radio nucleotides where chemical vapor re-circulation into the work zone is permitted. It meets the requirements for the protection of product, personnel and the environment allowing for the safe handling of pathogens, contaminants or other potentially hazardous materials.
Specifications
| Air circulation | 70% |
| Air exhaust | 30% |
| Glass door orientation | 10° tilted |
| Working area | 1000 x 650 x 620 mm |
| Overall dimension | 1195 x 720 x 1950 mm |
| HEPA filter | 0.3 micron |
| Air pressure | Vertical negative |
| Cleaning level | 100 level |
| Ascending wind speed | ≥ 0.55 m/s |
| Descending wind speed | ≥ 0.35 m/s |
| Noise | ≤ 58 dB |
| Half ventilation peak value | ≤ 3 µm |
| Personnel protection | CFU ≤ 10 |
| Product protection | CFU ≤ 5 |
| Cross contamination | CFU ≤ 2 |
| Fluorescent lamp | 20 W x 2 |
| UV lamp | 20 W x 1 |
| Power | AC 220 V / 50 Hz |
| Air supply filter dimension | 955 x 545 x 50 mm |
| Weight | 300 kg |
Features
Applications
Function Implementation Pathogen Handling Class II A2 containment for bacteria & culture procedures Low-Volume Toxic Chemical Work 70/30 airflow supporting controlled vapor recirculation Radiolabeled Material Processing Enclosed workspace for trace radionucleotide handling Sterile Sample Preparation HEPA-filtered Class 100 environment for contamination-sensitive tasks Clinical & Research Diagnostics Negative pressure cabinet for regulated diagnostic workflows
Lab Expo Class II Biological Safety Cabinet supports controlled containment workflows where regulated airflow and HEPA filtration are required for safe biological handling. This class ii bsc operates with defined inflow and downflow air patterns, offering A2 or B2 configurations with recirculation or total exhaust as specified. Microprocessor controls manage airflow stability and monitoring, while stainless steel work surfaces, negative pressure containment, and integrated alarms ensure controlled, compliant operation for routine laboratory procedures.
