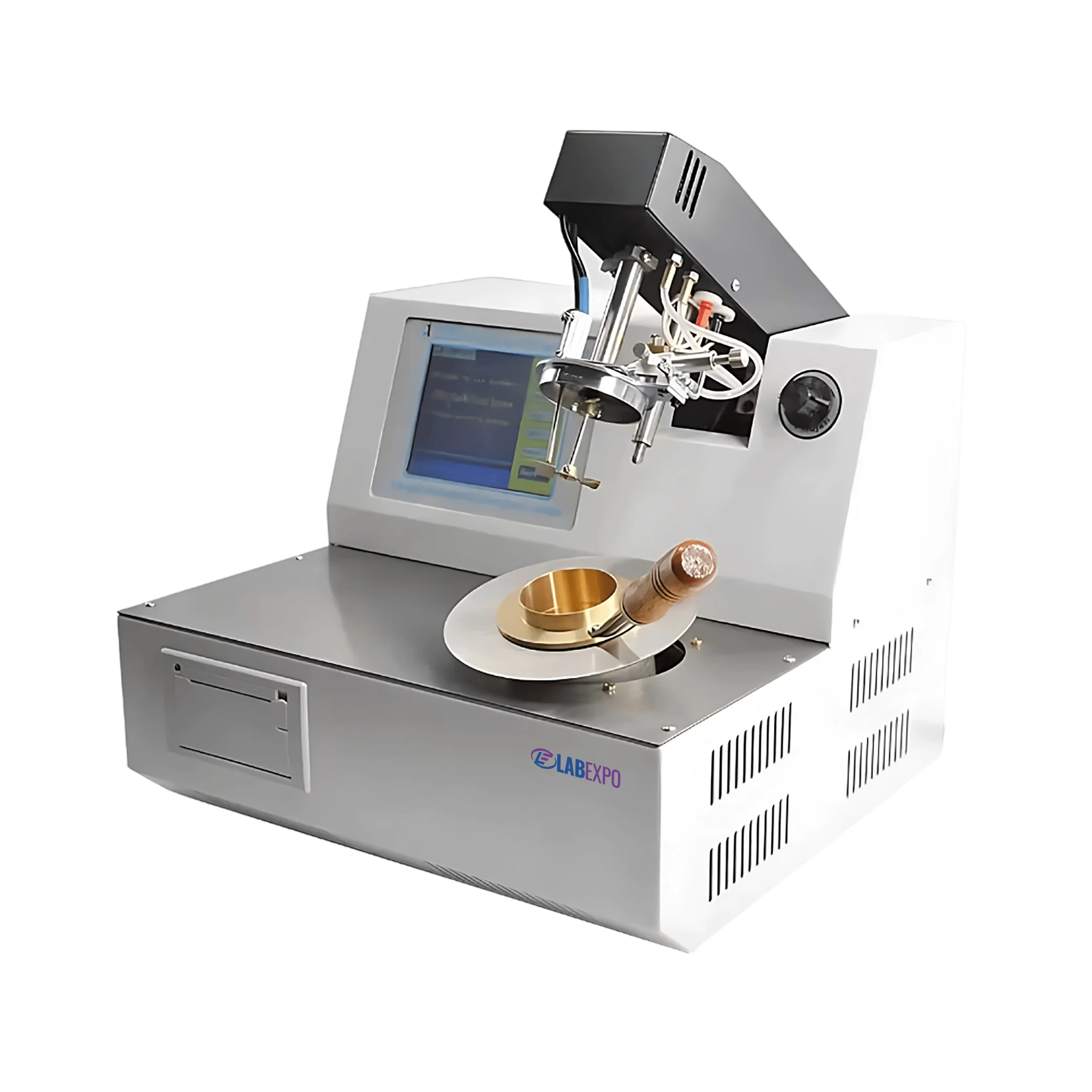

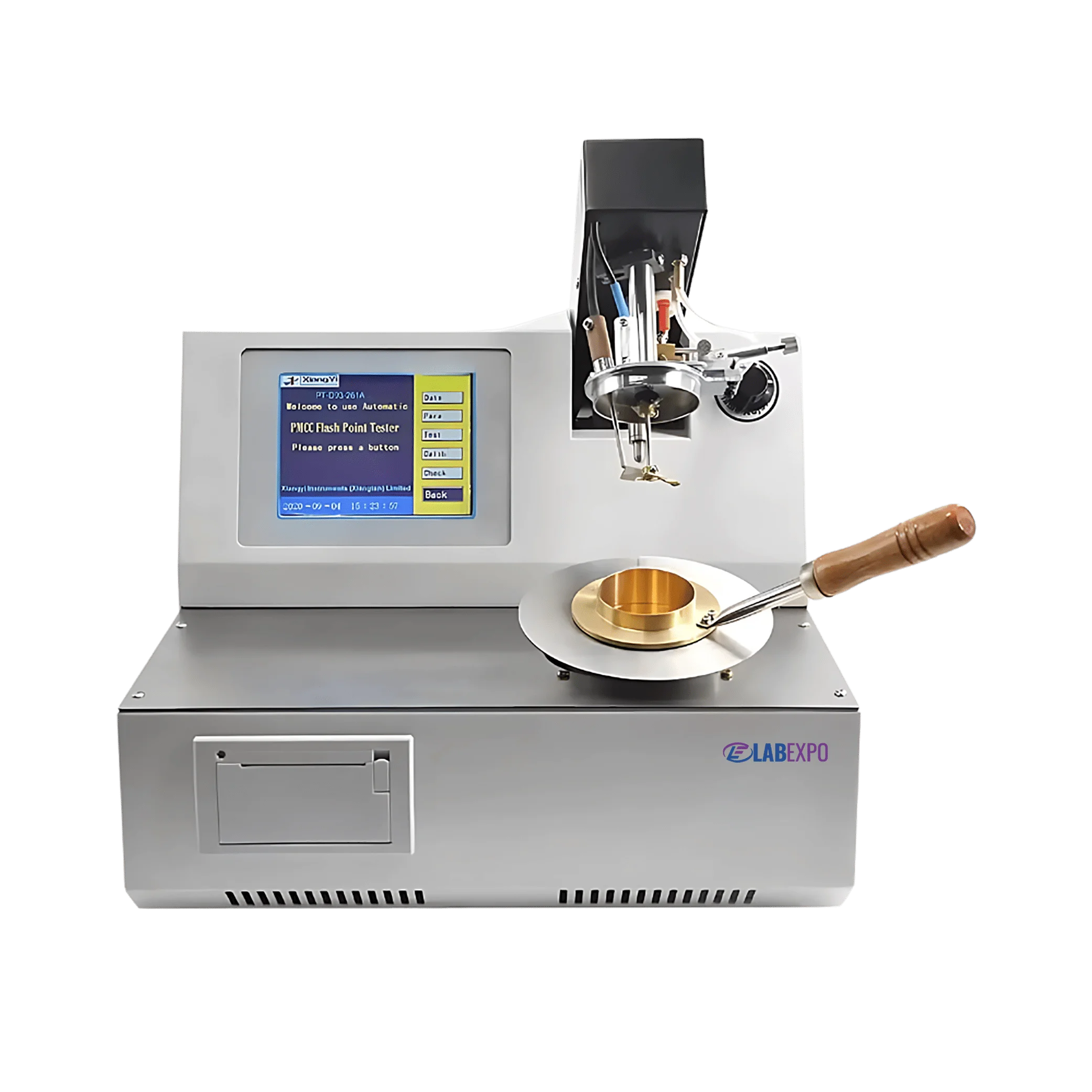

52-CFP102 is equipped with advanced software. It is suitable for flammability applications on both biodiesel and biodiesel-blended fuels along with distillate fuels like diesel, heating oil and kerosene. It is designed as per ASTM D93 “Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)”.
Specifications
| Ambient temperature | 10 °C ~ 30 °C |
| Relative humidity | < 80 % |
| Stirring speed | 105 rpm |
| Measurement Range | Ambient temperature ~ 250 °C |
| Flash Point | Lower than 104 °C : 1 °C; higher than 104 °C : 2 °C |
| Resolution | 0.1 °C |
| Repeatability | Lower than 104 °C : error is 2 °C; higher than 104 °C : error is 4 °C |
| Accuracy | 0.002 |
| Gas Flame | 4 mm |
| Dimension | 360 × 110 × 300 mm |
| Total Power Consumption | 300 W |
| Power supply | AC 220 V ± 10 %, 50 Hz |
| Net Weight | 10 kg |
Features
Applications
It is used to determine the flash point of diesel and other fuel types in petrochemical analysis, flavors in food testing, paints in materials testing, and waste removal for environmental analysis
Lab Expo Closed Cup Flash Point Testers are engineered for safety and quality control, determining the flash point of flammable liquids. They have automated gas or electric ignition and flash point detection for accuracy. These testers feature over-temperature protection and programmable heating. Our Closed Cup Flash Point Testers are compact, efficient, with rapid heating and a wide temperature range.
