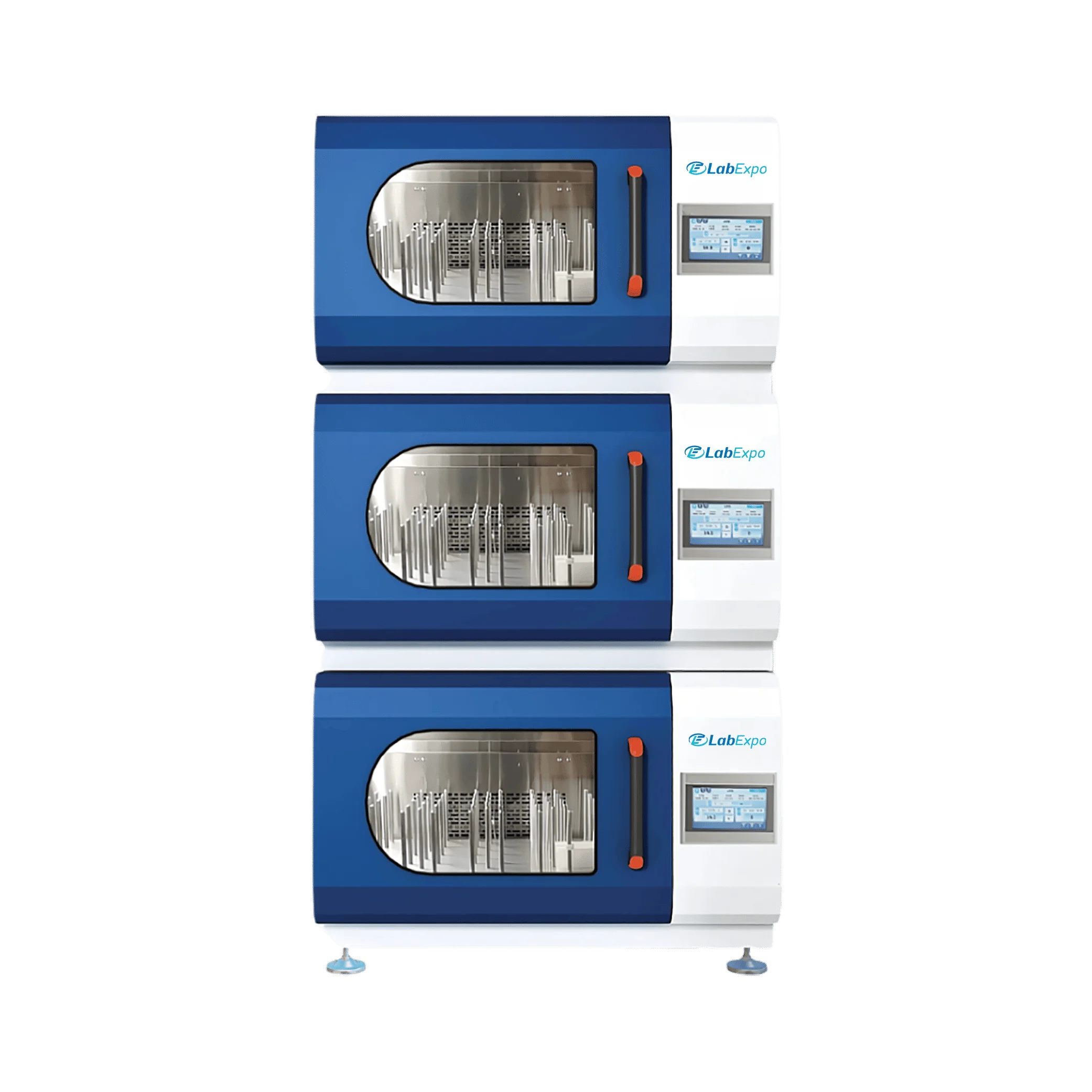

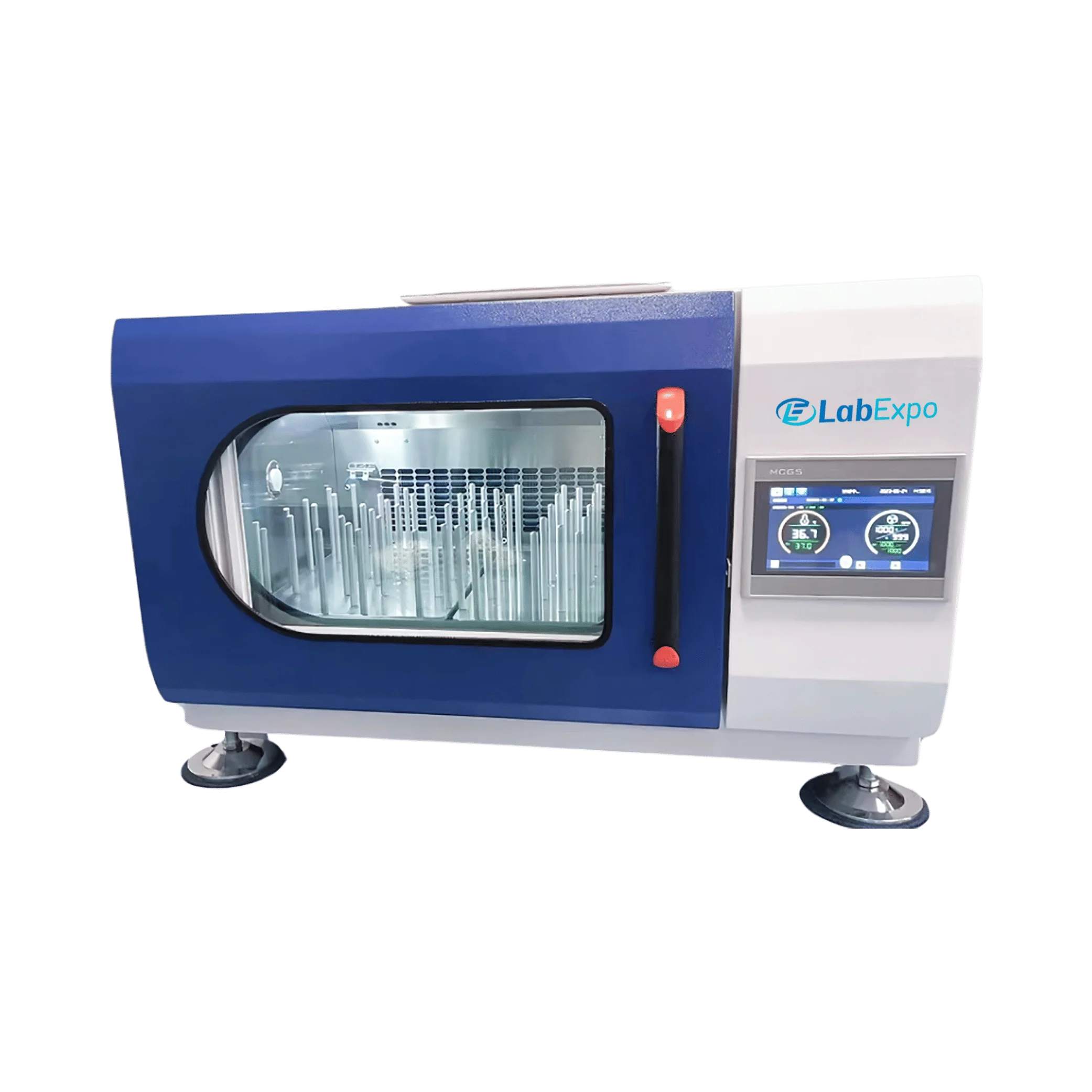

CO2 Incubator Shaker 160-CIS101 with a 160L capacity offers plenty of space for different culture volumes. It features a temperature control range from 4°C to 60°C for precise regulation of environmental conditions. It offers ultra-fast micro volume shaking ensuring efficient mixing and aeration to promote uniform growth. Our incubator has a UV system that keeps the environment sterile and prevents contamination.
Specifications
| Volume | 160 L |
| Rotation Speed | 2 to 1000rpm depending on load and stacking |
| Speed Control Accuracy | 1 rpm |
| Shaking Throw | 3mm |
| Shaking Motion | Orbital |
| Temperature Control Mode | PID control mode |
| Temperature Control Range | 4 to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Distribution | ±0.3°C at 37°C |
| Principle of Temperature Sensor | Pt to 100 |
| CO2 Control Range | 0 to 20% |
| CO2 Display Resolution | 0.1% |
| CO2 supply | 0.05 to 0.1MPa is recommended |
| Maximum Loading Capacity | 50 kg |
| Tray capacity of microtiter plates | 32 (deep well plate, low well plate, 24, 48 and 96 well plate) |
| Timer | 0 to 999.9hours |
| Tray Size | 288×404mm |
| Number of Tray | 2 |
| Maximum Working Height | 340 mm |
| Control Interface | 7.0-inch LED touch operation screen |
| Tray Capacity of Shake Flask | Deep-well Multiwell Plate (24/48/96-well) ×32 |
| Maximum Expansion | Stackable up to 3 units |
| Illumination | FI tube,30W |
| Principle of CO2 Sensor | Infrared (IR) |
| Sterilization Method | UV sterilization |
| Number of Settable Programs | 5 |
| Number of Stages per Program | 30 |
| Data Export Interface | USB interface |
| Historical Data Storage | 800,000 messages |
| User Management | 3 levels of user management: Administrator/Tester/Operator |
| Ambient Temperature | 5 to 35°C |
| Material (Incubation Chamber) | Stainless steel |
| Material (Outer Chamber) | Painted steel |
| Power Supply | 115/230V±10%, 50/60Hz |
| Dimensions (W×D×H) | 1100×820×710mm |
| Weight | 155kg |
Features
Applications
CO2 Incubator Shaker is ideal for Cell Culture, Microbial Growth, Protein Expression, Protein Expression, Tissue Engineering and Algae Cultivation.
Standard Accessories
Lab Expo CO2 Incubator Shaker offers a spacious internal chamber providing ample room for accommodating various sample sizes. They feature adjustable shaking speed ensuring gentle yet effective mixing. These ensure uniform distribution of CO2 and temperature throughout the chamber while enhancing sample growth. They allow users to monitor samples without disrupting the internal environment through a large glass viewing window. These prioritize safety with features such as over-temperature protection, CO2 sensor alarms, and a door interlock system. Our incubator shaker is equipped with a user-friendly touchscreen interface enabling intuitive programming and monitoring of parameters.
