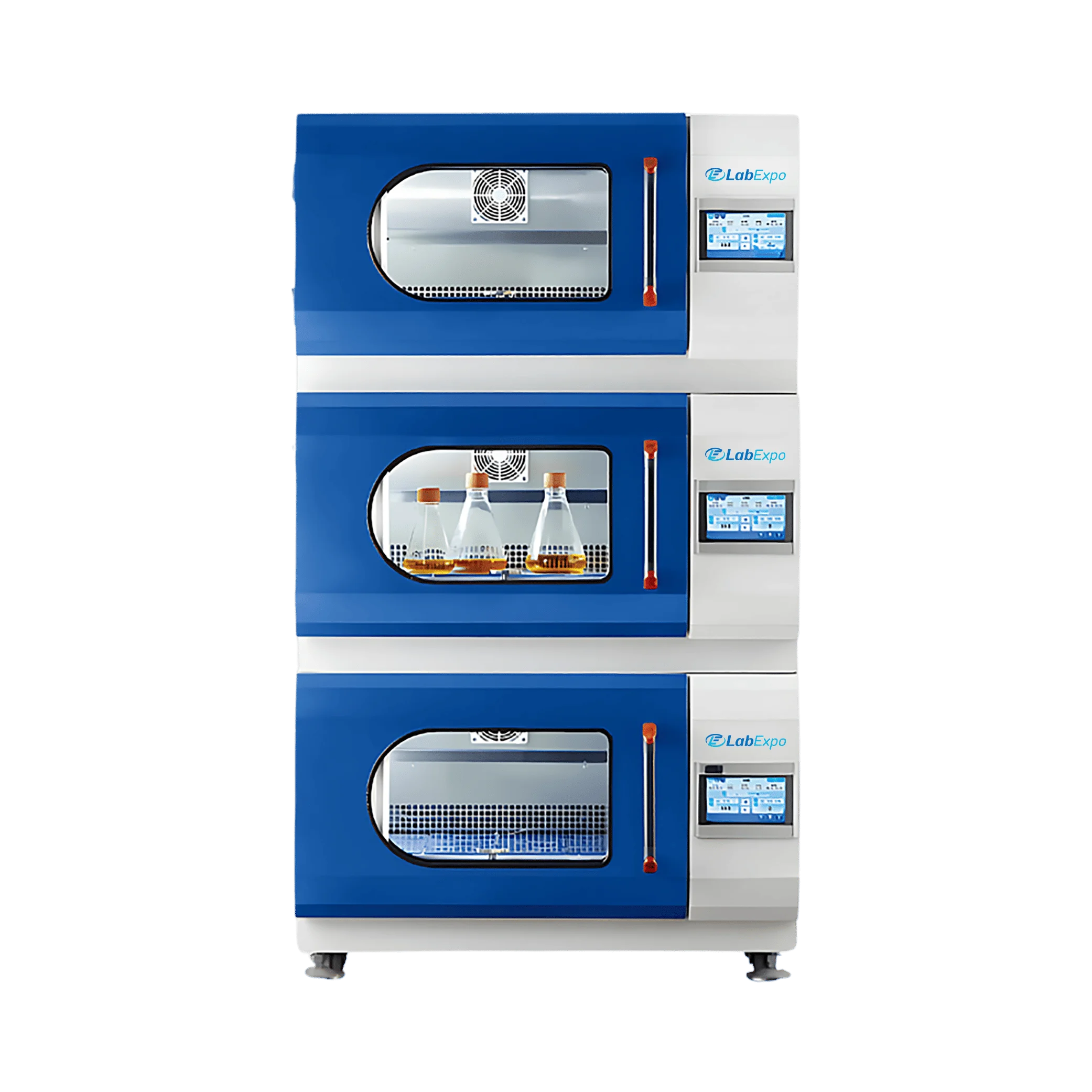

CO2 Incubator Shaker 160-CIS102 offers a spacious 160L volume providing ample capacity for various samples. It features a CO₂ control range of 0 to 20% ensuring precise atmospheric conditions for optimal cell culture growth. It features a rotation speed range from 2 to 300 rpm adjusting seamlessly based on load and arrangement. It features a heatless waterproof fan that minimizes heat generation and ensures uniform airflow for consistent environment condition.
Specifications
| Volume | 160L |
| Rotation Speed | 2 to 300rpm depending on load and stacking |
| Speed Control Accuracy | 1rpm |
| Shaking Throw | 50mm |
| Shaking Motion | Orbital |
| Temperature Control Mode | PID control mode |
| Temperature Control Range | 4 to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Distribution | ±0.3°C at 37°C |
| Principle of Temperature Sensor | Pt-100 |
| CO2 Control Range | 0 to 20% |
| CO2 Display Resolution | 0.1% |
| CO2 supply | 0.05 to 0.1MPa |
| Maximum Loading Capacity | 35kg |
| Tray capacity of shake flask | 35×250ml or 24×500ml or 15×1000ml or 8×2000ml |
| Control Interface | 7.0-inch LED touch operation screen |
| Maximum Expansion | Stackable up to 3 units |
| Illumination | FI tube,30W |
| Principle of CO2 Sensor | Infrared (IR) |
| Sterilization Method | UV sterilization |
| Number of Settable Programs | 5 |
| Number of Stages per Program | 30 |
| Data Export Interface | USB interface |
| Historical Data Storage | 800,000 messages |
| User Management | 3 levels of user management: Administrator/Tester/Operator |
| Ambient Temperature | 5 to 35°C |
| Data Export Interface | USB interface |
| Material (Incubation Chamber) | Stainless steel |
| Material (Outer Chamber) | Painted steel |
| Historical Data Storage | 800,000 messages |
| Power Consumption | 1300W |
| User Management | 3 levels of user management: Administrator/Tester/Operator |
| Power Supply | 115/230V±10%, 50/60Hz |
| Ambient Temperature | 5 to 35°C |
| Internal Dimension | 720×632×475mm |
| Material (Incubation Chamber) | Stainless steel |
| Dimensions (W×D×H) | 1100×820×710mm |
| Material (Outer Chamber) | Painted steel |
| Power Consumption | 1300W |
| Weight | 155kg |
| Power Supply | 115/230V±10%, 50/60Hz |
| CO2 supply | 0.05 to 0.1MPa |
| Internal Dimension | 720×632×475mm |
| Dimensions (W×D×H) | 1100×820×710mm |
| Weight | 155kg |
| Control Interface | 7.0-inch LED touch operation screen |
| Maximum Expansion | Stackable up to 3 units |
| Illumination | FI tube,30W |
| Principle of CO2 Sensor | Infrared (IR) |
| Sterilization Method | UV sterilization |
| Number of Settable Programs | 5 |
| Number of Stages per Program | 30 |
| Data Export Interface | USB interface |
| Historical Data Storage | 800,000 messages |
| User Management | 3 levels of user management: Administrator/Tester/Operator |
| Ambient Temperature | 5 to 35°C |
| Material (Incubation Chamber) | Stainless steel |
| Material (Outer Chamber) | Painted steel |
| Power Consumption | 1300W |
| Power Supply | 115/230V±10%, 50/60Hz |
| Internal Dimension | 720×632×475mm |
| Dimensions (W×D×H) | 1100×820×710mm |
| Weight | 155kg |
Features
Applications
CO2 Incubator Shaker is ideal for Cell Culture, Microbial Growth, Protein Expression, Protein Expression, Tissue Engineering and Algae Cultivation.
Lab Expo CO2 Incubator Shaker offers a spacious internal chamber providing ample room for accommodating various sample sizes. They feature adjustable shaking speed ensuring gentle yet effective mixing. These ensure uniform distribution of CO2 and temperature throughout the chamber while enhancing sample growth. They allow users to monitor samples without disrupting the internal environment through a large glass viewing window. These prioritize safety with features such as over-temperature protection, CO2 sensor alarms, and a door interlock system. Our incubator shaker is equipped with a user-friendly touchscreen interface enabling intuitive programming and monitoring of parameters.
