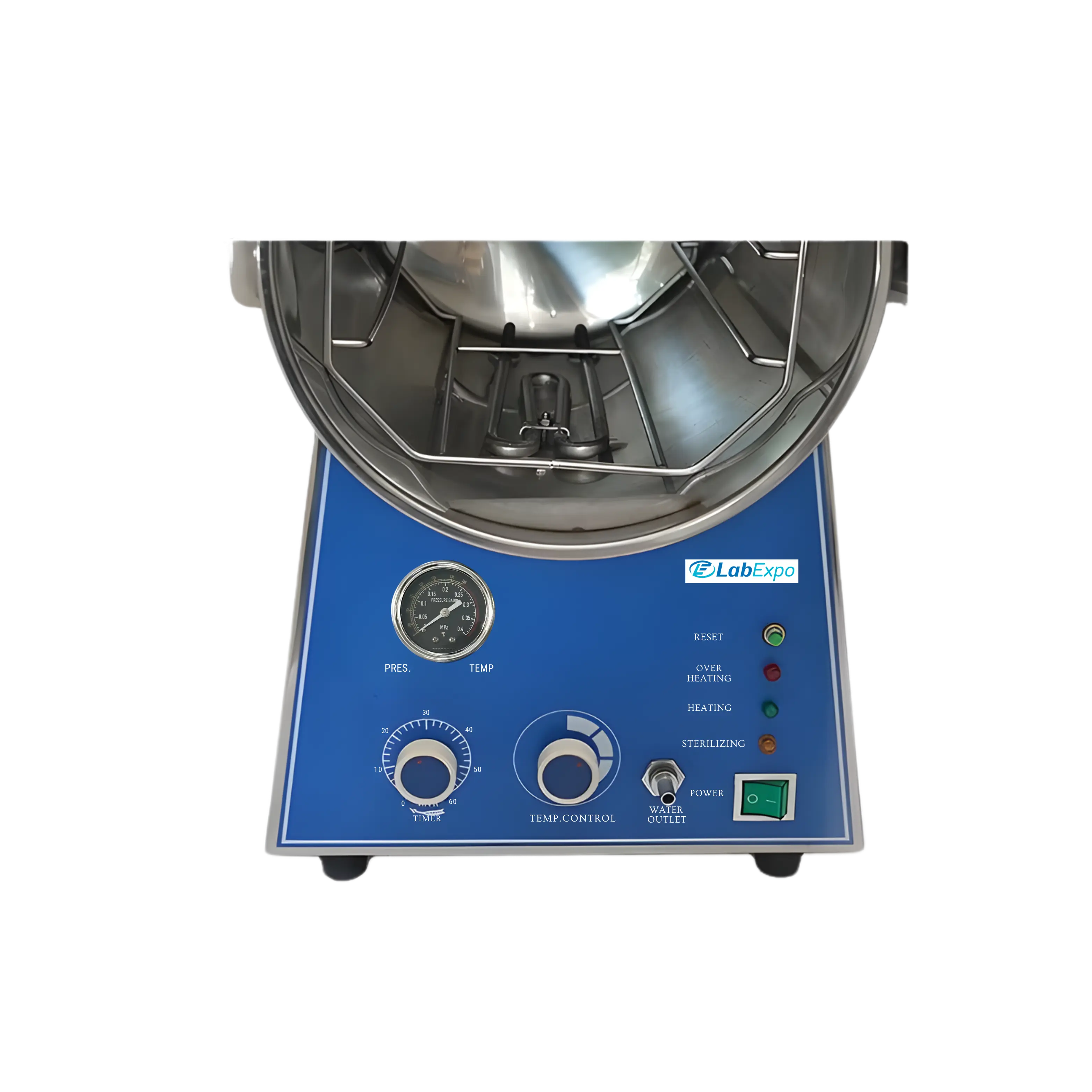

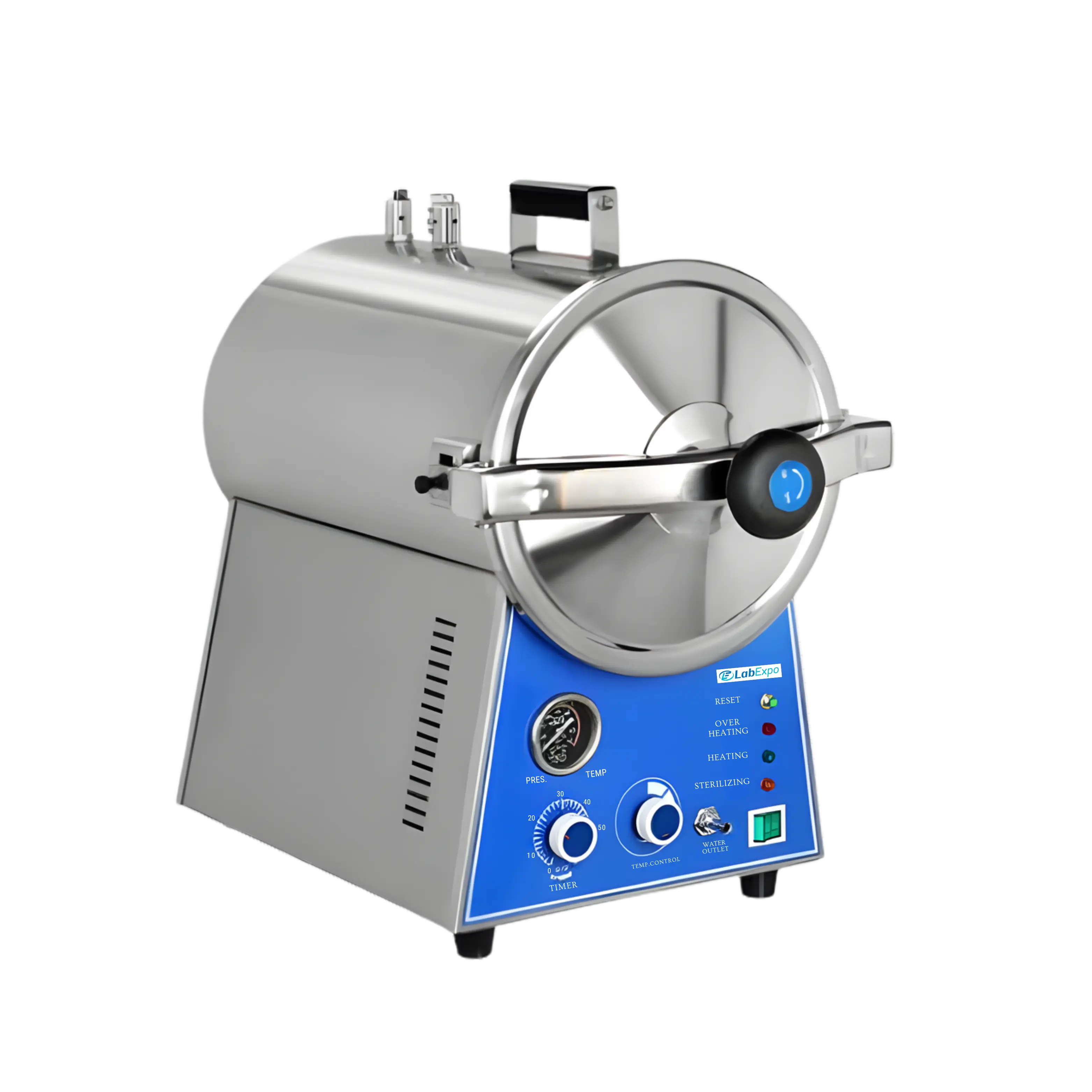

Dental Autoclave LE-DAC102 offers 24 L capacity, suitable for efficient processing of standard sterilization loads. Integrated water shortage protection safeguards the unit during low-water conditions. Designed with advanced overheat and overpressure protection for enhanced operational safety. Our Dental Autoclave is equipped with a high-precision temperature control system to ensure consistent disinfection performance.
$2,112.00 $ 1760
Specifications
| Sterilizing Volume | 24 L |
| Chamber Dimension | φ270 × 410 mm |
| Maximum Working Pressure | 0.22 MPa |
| Maximum Working Temperature | 134°C |
| Temperature Adjustment Range | 105°C to 134°C |
| Timer Range | 0 to 60 minutes |
| Temperature Accuracy | ±1°C |
| Total CBM | 0.14 CBM |
| Power Consumption | 1500 Watt |
| Power Supply | AC220V, 50Hz or as specified |
| Sterilizing Plate | 340 × 200 × 30 mm (3 pcs) |
| External Dimensions | 560 × 350 × 500 mm |
| Packing Dimensions | 620 × 410 × 570 mm |
| Net Weight | 18 Kg |
| Gross Weight | 20 kg |
Features
Applications
Function Implementation Sterilization Surgical, dental, and ophthalmic instruments Department Use Dental clinics and hospital departments Laboratory Use School labs Research Use Research facilities
1: What is its sterilizing volume?
The unit features a 24-liter chamber, designed to handle standard sterilization loads efficiently.
2: How do they protect the unit and the user?
These include automatic water shortage protection, overheat prevention, and overpressure safeguards, ensuring operational safety.
3: What control system do they use for precision sterilization?
Them utilize an automated microcomputer control system with high-precision temperature adjustment for consistent results.
4: It is capable of operating within what temperature range?
It operates between 105°C and 134°C, maintaining ±1°C accuracy for reliable sterilization cycles.
5: Which applications is our Dental Autoclave recommended for?
Our Dental Autoclave is suitable for dental clinics, hospitals, laboratories, and research facilities, sterilizing instruments, glassware, and medical supplies.
6: What chamber sizes are available in your Dental Autoclave?
Our Dental Autoclaves are available in various chamber capacities, typically ranging from 16 litres to 50 litres, allowing flexibility for both small and large dental practices.
7: What are pre-vacuum cycles and how do they enhance sterilization?
Pre-vacuum cycles remove air from the chamber before steam is introduced, allowing steam to penetrate more thoroughly into porous and hollow instruments, thus ensuring uniform and effective sterilization.
8: What is the role of the built-in steam generator in the autoclave?
The built-in steam generator produces high-quality saturated steam quickly, reducing heating time and enabling faster cycle initiation. It also ensures consistent steam pressure and temperature for optimal sterilization performance.
9: How does the advanced construction of the autoclave enhance sterilization performance?
The autoclave construction includes high-grade stainless steel chambers, reinforced seals and uniform heat distribution systems, ensuring consistent temperature and pressure for effective sterilization of all instrument types.
10: Can the autoclave be relocated if clinic layout changes?
Yes, its compact and lightweight design makes it easy to move or reposition, supporting flexible sterilization setups in evolving clinical environments.
Lab Expo Dental Autoclave is designed for steam sterilization of dental instruments using controlled pre-vacuum, exposure, and drying stages to support repeatable cycle outcomes. Chamber capacities range from 16 L to 50 L, with stainless steel construction for hygienic processing. This dental autoclave sterilizer uses autonomous digital controls with an integrated steam generator, while built-in safety mechanisms support controlled operation during sterilization cycles.
