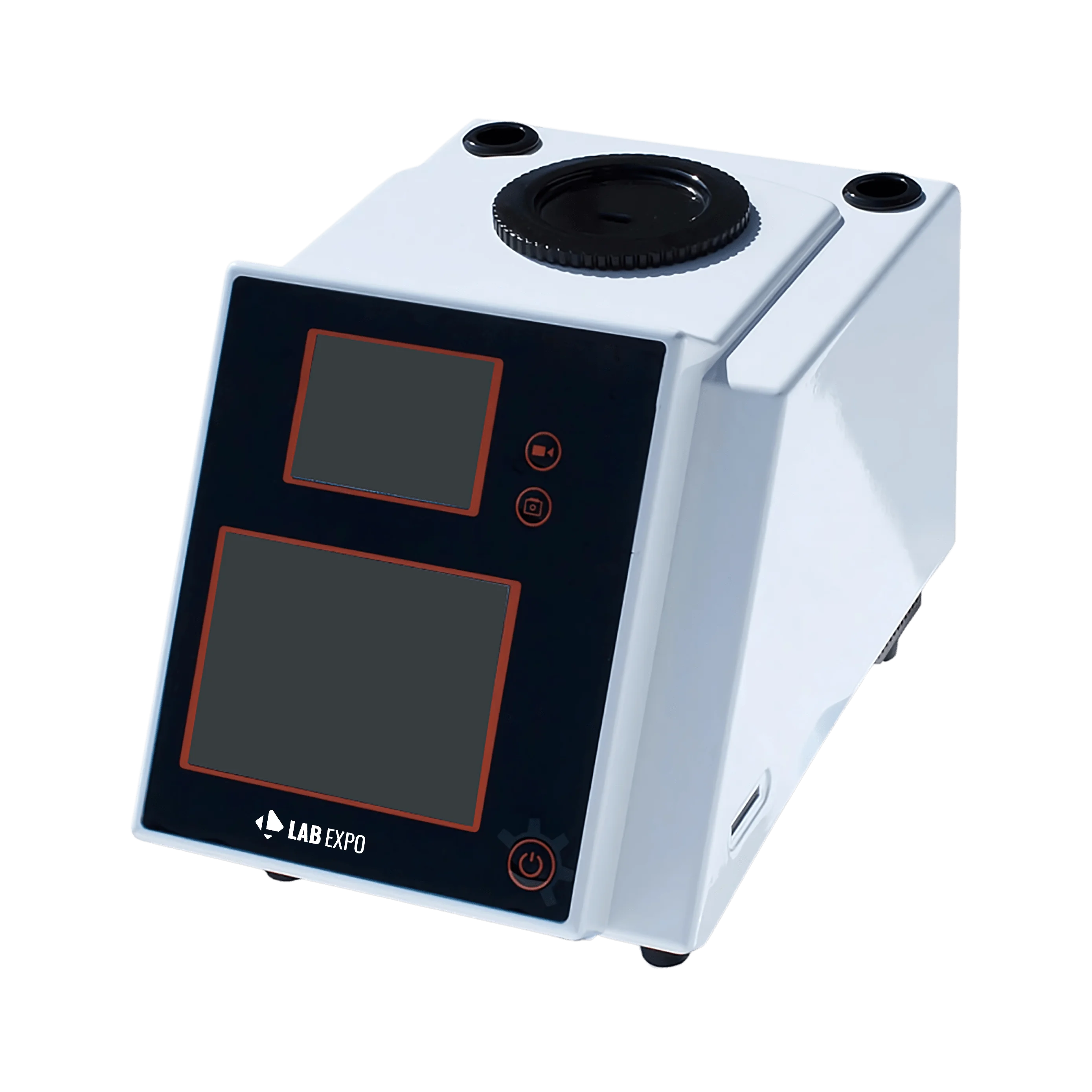

Digital Melting Point Apparatus LE-DMPA201 provides a broad temperature range from ambient to 400℃, enabling precise melting point determination. It employs a semi-automatic detection method to ensure consistent and accurate results. Integrated LCD offers clear monitoring and control during the entire analysis process. Built-in refrigeration system allows efficient handling of multiple samples at once. Our Melting Point Apparatus supports recording and playback of the complete experimental sequence for thorough review.
Specifications
| Temperature Range | RT to 400℃ |
| Detection Method | Semi-Automatic (Automatic Temperature Control, Manual Detection) |
| Processing Capacity | 4 Pieces/Batch (Four samples can be made at the same time) |
| Minimum Display Value of Temperature | 0.1℃ |
| Heating Rate | 0.1℃ to 20℃ (200 Steps) |
| Accuracy | ±0.3°C (<250°C), ±0.5°C (>250°C) |
| Repeatability | ±0.1℃ at 0.1℃/min |
| Video Function | Photos, Video |
| Video Playback | Yes |
| Magnification | 7× |
| User Management | Up to 8 Users |
| Data Saving Result | 400 Entries |
| Video Storage Capacity | 8 GB |
| Display Mode | TFT High-Definition True Color Screen |
| Data Interface | USB, RS232, Network Port |
| Power Consumption | 120 W |
| Power Supply | 220V, 50Hz |
| Capillary Dimension | Outer Diameter: Φ1.4 mm, Inner Diameter: Φ1.2 mm |
| Instrument Dimensions | 400 × 280 × 330 mm |
| Packing Dimensions | 430 × 320 × 370 mm |
| Gross Weight | 6.50 kg |
Features
Applications
Digital Melting Point Apparatus LE-DMPA201 is designed to accurately measure the melting points of chemical substances, making it ideal for assessing purity and identifying compounds in pharmaceutical, chemical, and research laboratories.
Lab Expo Digital Melting Point Apparatus features advanced photoelectric detection and a clear LCD display. They automatically record melting curves and displays key points. A reliable temperature control system ensures consistent accuracy. They use precision platinum resistance sensors and digital control technology. They automatically save data and offer easy PC connectivity. Our Digital Melting Point Apparatus are ideal for labs and research, providing precise melting point determination.
