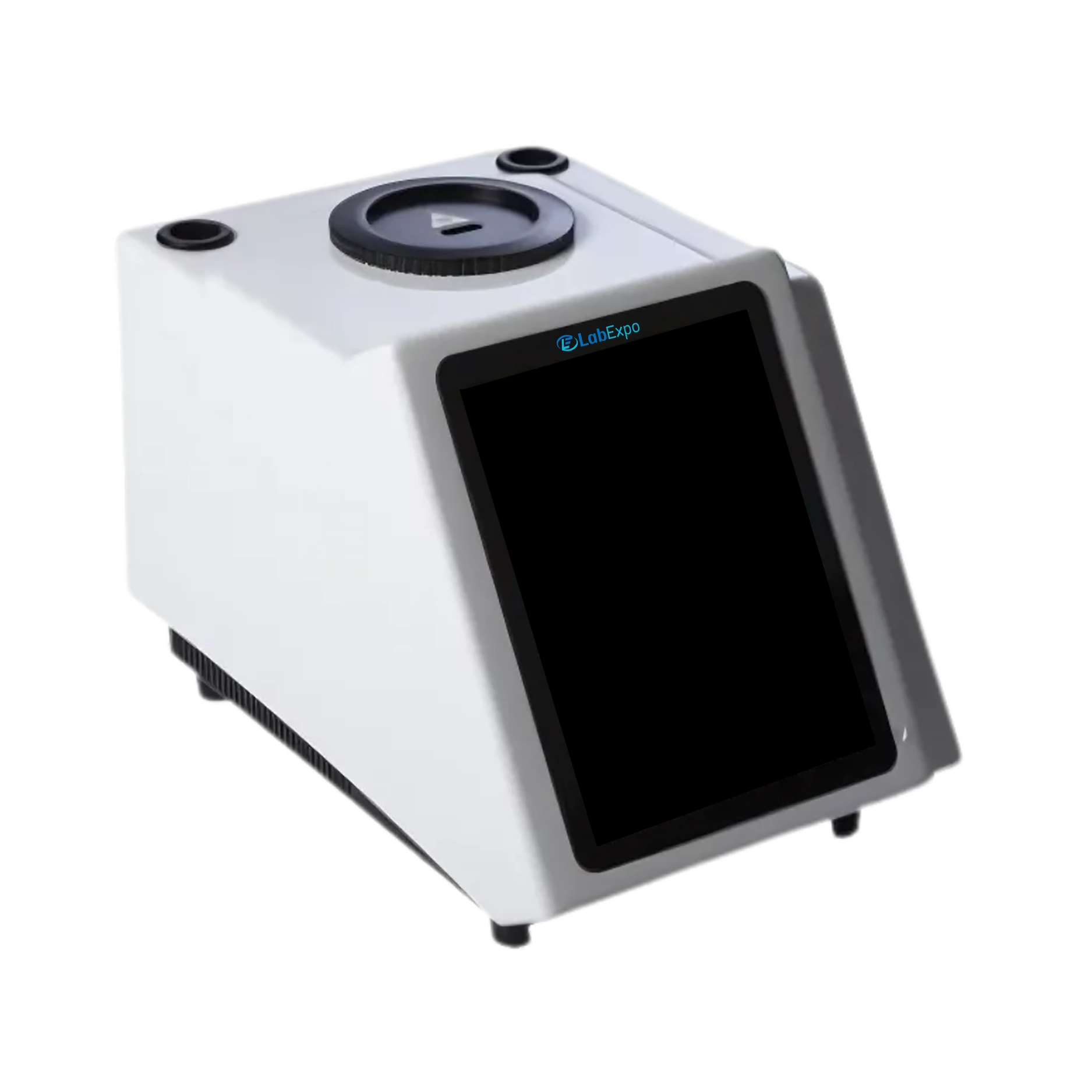

Digital Melting Point Apparatus LE-DMPA301 offers a temperature range from room temperature to 350 ℃. It features a processing capacity of 4 samples per batch, enabling simultaneous and efficient analysis. Built-in with a temperature resolution of 0.1 ℃ for precise and reliable melting point measurements. Equipped with an adjustable heating rate ranging from 0.1 ℃ to 20 ℃ for flexible operation. Our Digital Melting Point Apparatus is ideal for chemical, pharmaceutical, food, dye, and perfume production applications.
Specifications
| Temperature Range | RT to 350 ℃ |
| Detection Mode | Semi-Automatic |
| Processing Capacity | 4 Pieces/Batch |
| Temperature Resolution | 0.1℃ |
| Heating Rate | 0.1℃ to 20℃ (200 Steps) |
| Accuracy | ±0.3°C (<250°C) ±0.5℃（>250℃） |
| Repeatability | ±0.1℃ at 0.1℃/min |
| Video Function | Photos, Video |
| Video Playback | Yes |
| Magnification | 8× |
| Data Saving Result | 400 Entries |
| Video Storage Capacity | 8 GB |
| Display Mode | TFT High-Definition True Color Screen |
| Data Interface | USB, RS232, Wi Fi, RJ45 |
| Power Consumption | 120 W |
| Power Supply | 220V, 50Hz |
| Capillary Dimension | Outer Diameter: Φ1.4 mm, Inner Diameter: Φ1.0 mm |
| Overall Dimension | 350 × 220 × 220 mm |
| Net Weight | 4.5 kg |
| Gross Weight | 5 kg |
Features
Applications
Digital Melting Point Apparatus LE-DMPA301 is suitable for use in chemical industries, pharmaceutical research, and quality control laboratories involved in the production of food, medicine, dyes, perfumes, and other organic crystalline substances.
Lab Expo Digital Melting Point Apparatus features advanced photoelectric detection and a clear LCD display. They automatically record melting curves and displays key points. A reliable temperature control system ensures consistent accuracy. They use precision platinum resistance sensors and digital control technology. They automatically save data and offer easy PC connectivity. Our Digital Melting Point Apparatus are ideal for labs and research, providing precise melting point determination.
