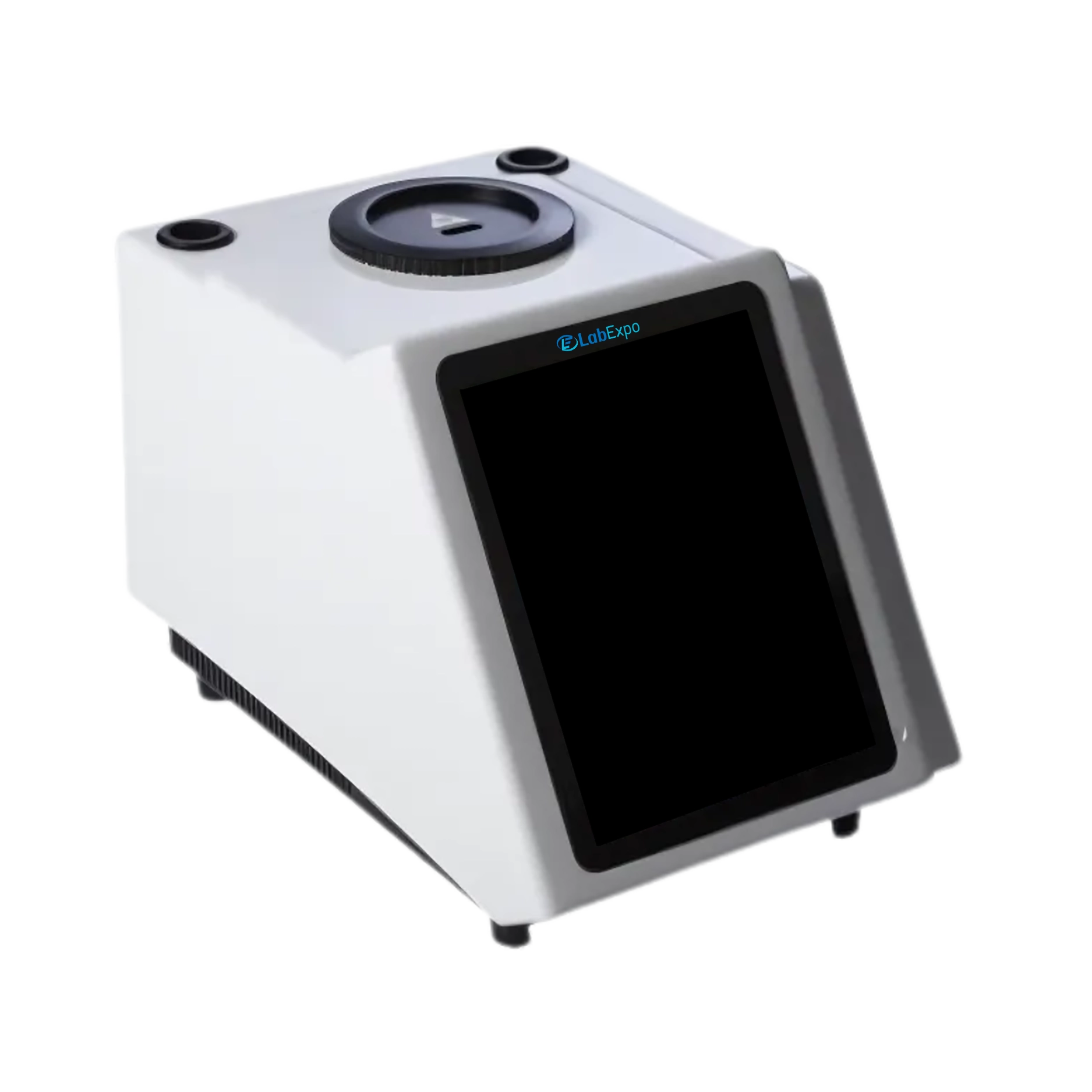

Digital Melting Point Apparatus LE-DMPA302 is designed to process 4 samples per batch for efficient analysis. It operates in a semi-automatic detection mode, ensuring consistent and accurate measurement of melting points. Integrated with a responsive touchscreen interface that simplifies navigation and improves operational efficiency. Incorporated with a temperature range from room temperature to 350 ℃ for versatile melting point analysis. Our Digital Melting Point Apparatus is well-suited for applications in the chemical, pharmaceutical, food, dye, and fragrance industries.
Specifications
| Temperature Range | RT to 350 ℃ |
| Detection Mode | Semi-Automatic |
| Processing Capacity | 4 Pieces/Batch |
| Temperature Resolution | 0.1℃ |
| Heating Rate | 0.1℃ to 20℃ (200 Steps) |
| Accuracy | ±0.3°C (<250°C) ±0.5℃（>250℃） |
| Repeatability | ±0.1℃ at 0.1℃/min |
| Video Function | Photos, Video |
| Video Playback | Yes |
| Magnification | 8× |
| Data Saving Result | 600 Entries |
| Video Storage Capacity | 16 GB |
| Display Mode | TFT High-Definition True Color Screen |
| Data Interface | USB, RS232, Wi Fi, RJ45 |
| Power Consumption | 120 W |
| Power Supply | 220V, 50Hz |
| Capillary Dimension | Outer Diameter: Φ1.4 mm, Inner Diameter: Φ1.0 mm |
Features
Applications
Digital Melting Point Apparatus LE-DMPA302 is ideal for chemical industry applications, pharmaceutical research, and quality control laboratories engaged in producing medicines, food products, dyes, perfumes, and other organic crystalline materials.
Lab Expo Digital Melting Point Apparatus features advanced photoelectric detection and a clear LCD display. They automatically record melting curves and displays key points. A reliable temperature control system ensures consistent accuracy. They use precision platinum resistance sensors and digital control technology. They automatically save data and offer easy PC connectivity. Our Digital Melting Point Apparatus are ideal for labs and research, providing precise melting point determination.
