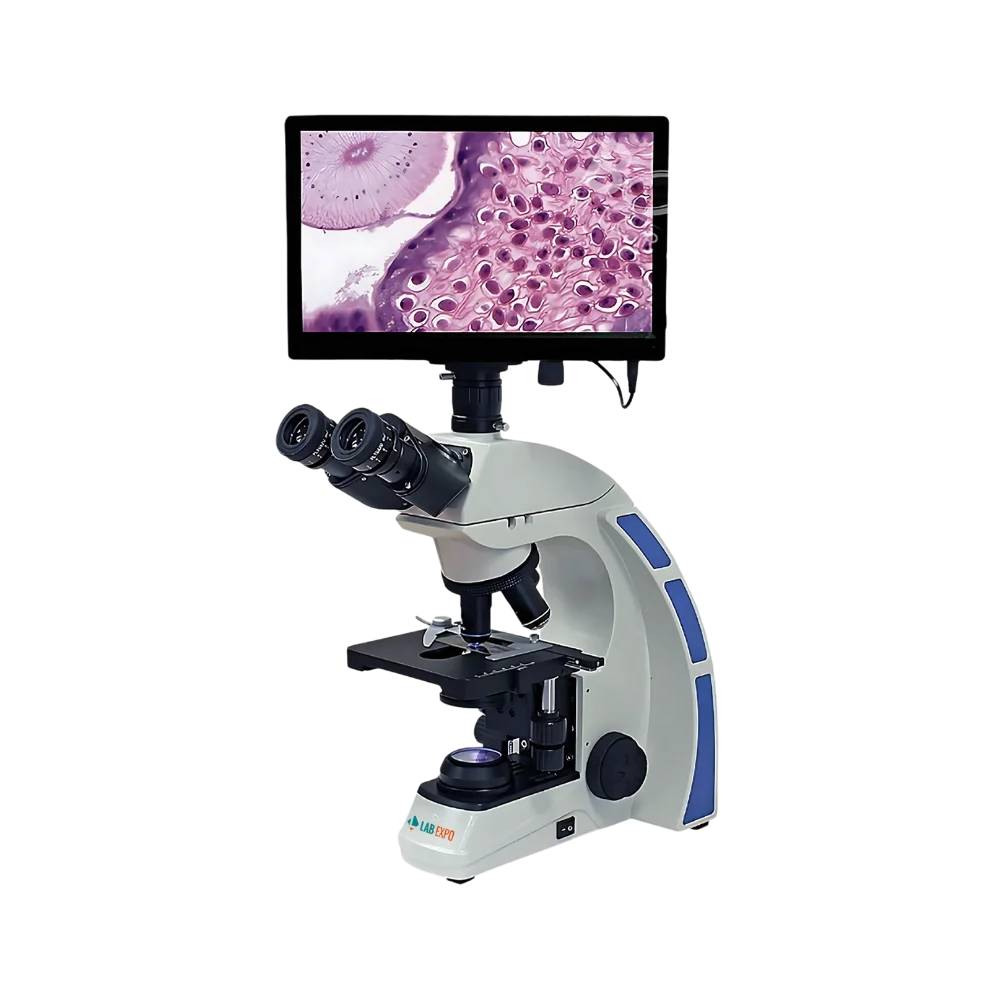

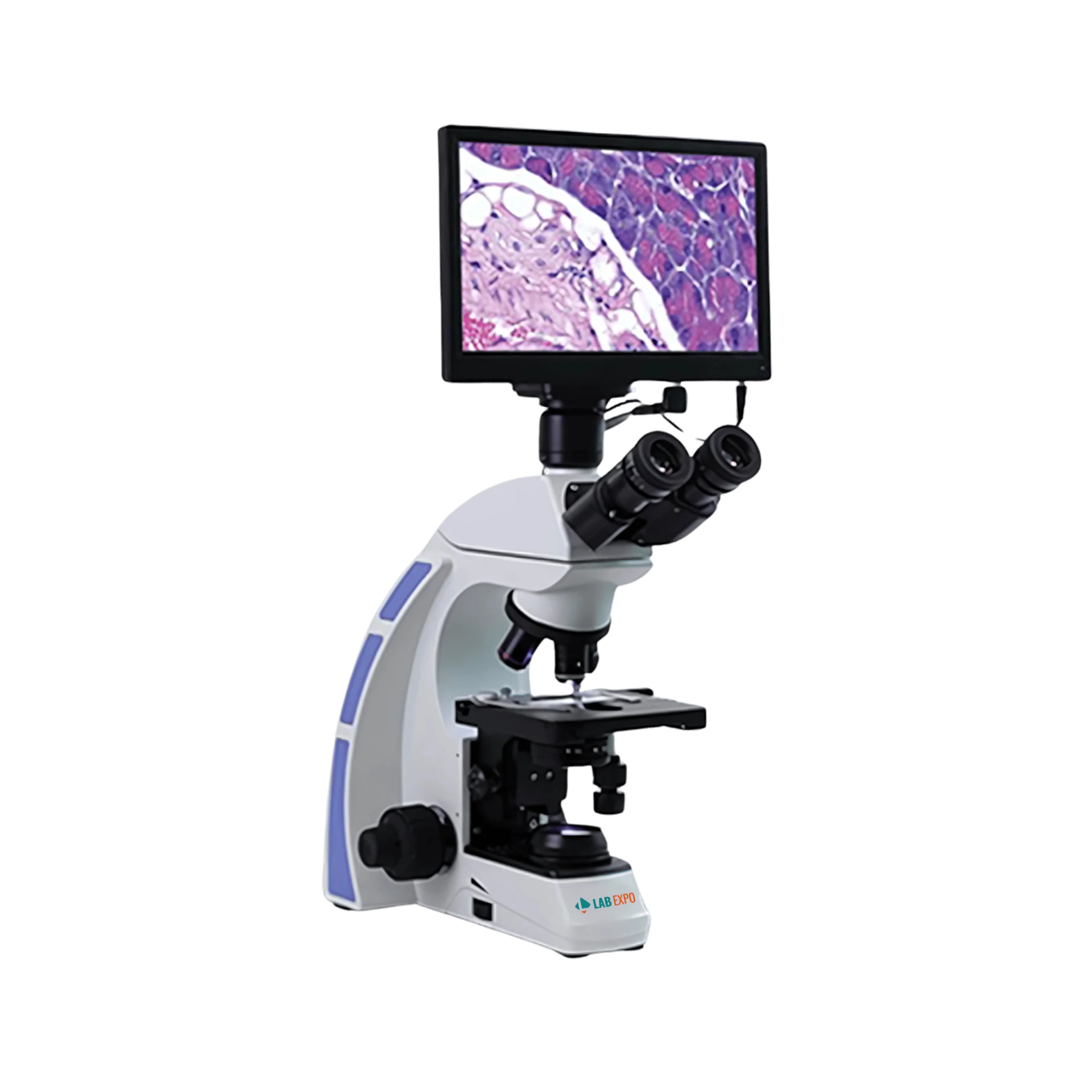

Digital Microscope 43-DMS100 allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.
$3,538.00 $ 2948
Specifications
| Optical system | Infinite optical system |
| Viewing head | Trinocular head, inclined at 30º, interpupillary distance 54 mm-75 mm |
| Eyepiece | High eye point wide field plan eyepiece PL10X/22 mm, with ±5 diopter control |
| Objectives | Infinity plan achromatic objective: 4x, 10x, 40x(s), 100x(s, Oil) |
| Stage | Coaxial mechanical stage: 140 x130 mm Travel stage: 76x50 mm |
| Condenser | Kohler N.A. 1.25 condenser (with socket for phase contrast& dark field sliders) |
| Focusing | Coarse and fine focusing adjustment with limited and tension adjustment. Coarse adjustment range 25 mm, fine adjustment precision:0.002 mm |
| Nosepiece | Backward quadruple nosepiece |
| Illumination | Main supply 100 V ~ 240 V, 3W LED lamp with intensity control (fixed center) |
| LCD Screen | 9.7 inch TFT touch screen |
| Output | USB 2.0, HDMI |
| Operating system | Android 4.2.2 |
| Software | IMS camera |
| Valid Pixel | 5.0 Mega pixel |
| Dimension | 300×320×160 mm |
| Net weight | 1 kg |
| Gross weight | 2 kg |
| Power supply | 85 V to 265 V universal power supply |
Features
Applications
Digital microscope has wide and promising applications in the fields of bacteriology, cytology, botany, medical research field to study the details of the specimen on LCD screen.
Optional Accessories
| Accessories No. | Name |
| 1 | Dark field slider for condenser |
| 2 | Simple polarization (with analyzer & polarizer) |
| 3 | Phase contrast kit (10x, 20x, 40x, 100x) |
Lab Expo digital microscopes allow you to observe samples without straining your eyes. They have coarse and fine focusing settings to provide clear, crisp photos. They include built-in LCD panels for high-resolution photos. They have LED lighting with intensity control. They have unlimited optical systems and may plan achromatic targets. They support Android and have USB connectivity. They feature sophisticated software for analysis and documentation. Our digital microscopes use modern technology to enable precise and fast sample analysis.
