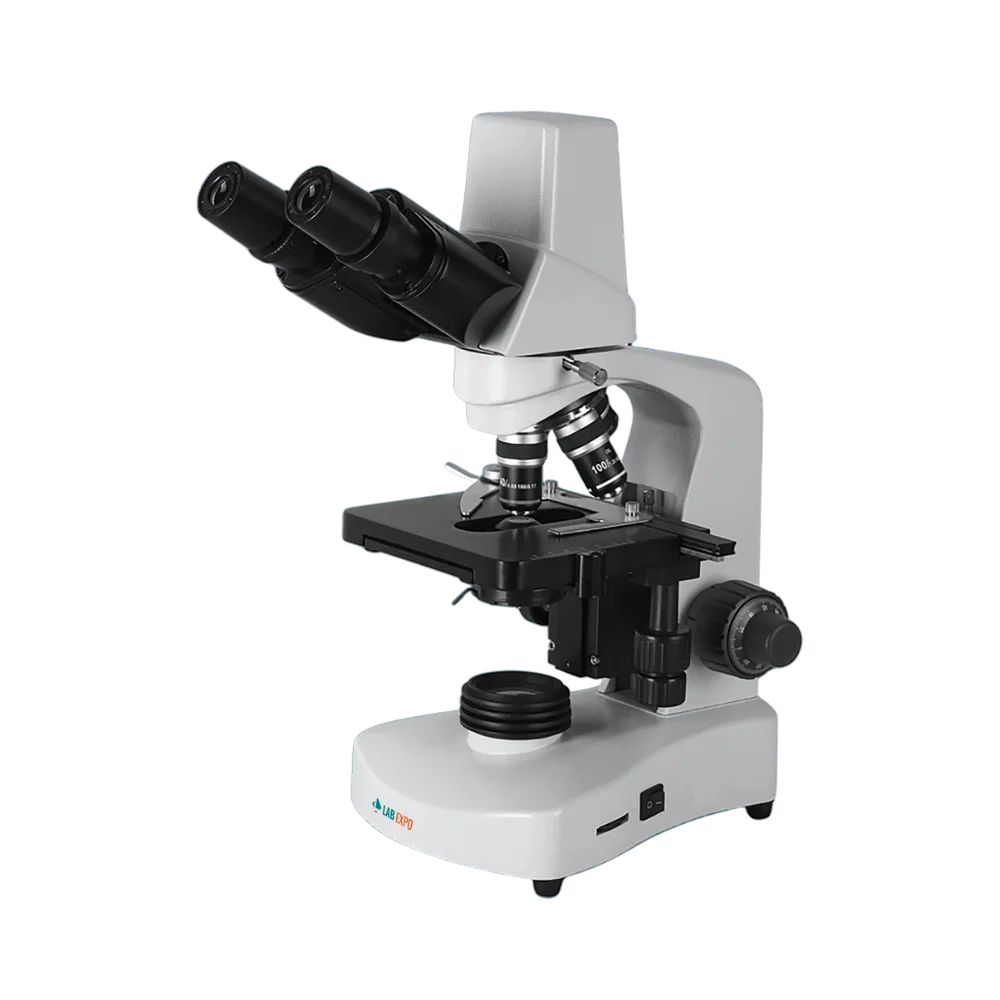

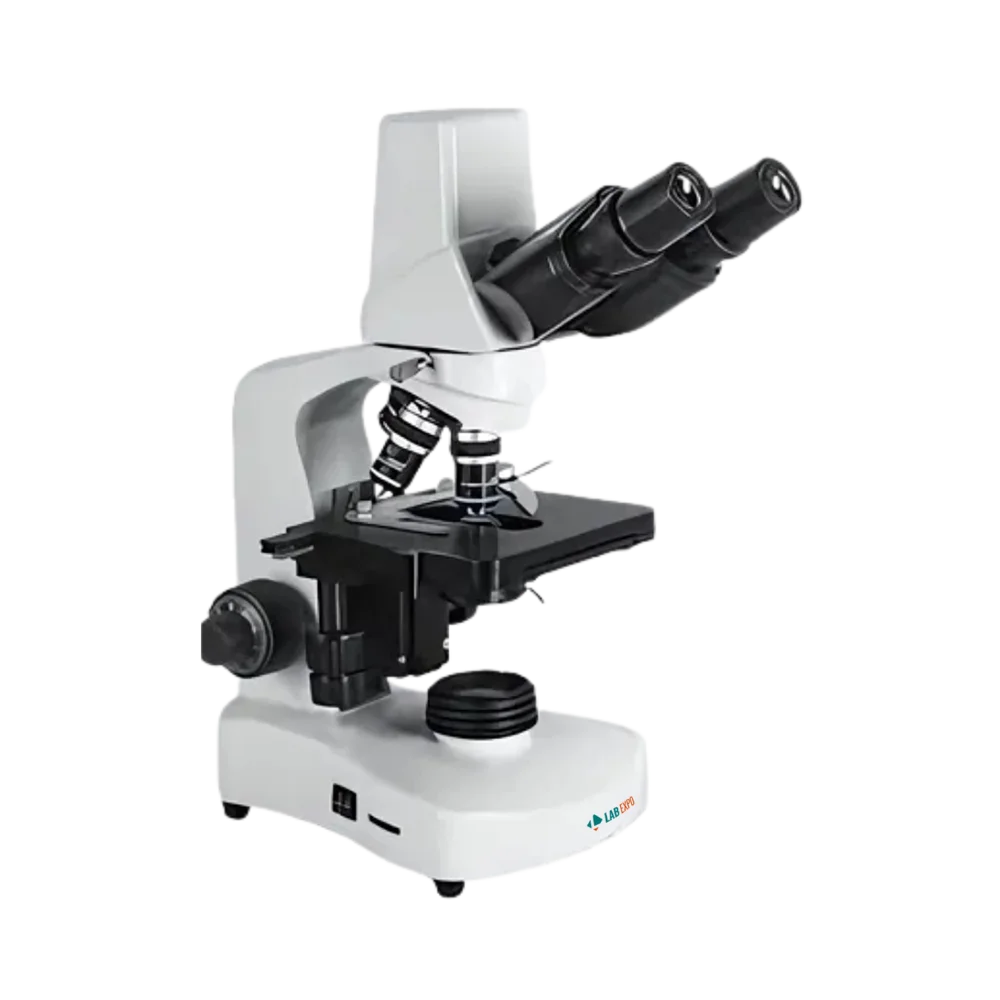

The highly modified digital microscope features built-in USB camera, and PC/monitor attachment with professional software offers high resolution images. Digital microscopes allows one to view the sample without straining the eyes. Coaxial coarse and fine focusing adjustment of this microscope gives sharp and clear image.
$2,184.00 $ 1820
Specifications
| Viewing head | Compensation free binocular head inclined at 30° , interpupillary distance 48 -75 mm Range of viewing field: 90% |
| Eyepiece | WF10X/18 mm |
| Objectives | Achromatic objective: 4x, 10x, 40x(s), 100x(s, oil) |
| Stage | Double layer mechanical stage: 132×142 mm Moving range: 75×40 mm |
| Condenser | Abbe N.A. 1.20 with iris diaphragm and filter |
| Focusing | Coaxial coarse and fine adjustment system Range 24 mm, fine division 0.004 mm |
| Nosepiece | Backward quadruple nosepiece |
| Illumination | S-LED brightness adjustable Halogen lamp 6V/20W with adjustable brightness |
| Output | USB 2.0 |
| Operating system | Windows 2000/XP/Vista |
| Software | Camea software: Scope image 9.0 |
| Valid Pixel | Camera Valid pixel: 1280×1024 (1.3 mega pixel) |
| Dimension | 395×275×510 mm |
| Net weight | 8 kg |
| Gross weight | 9 kg |
Features
Applications
Digital microscope has applications in the field of education, engineering, mechanical microscopy, metallurgy industry, biology, immunology, genetics & others.
Optional Accessories
| Accessories No. | Name |
| 1 | Eyepiece: P16X/11 mm |
| 2 | Phase contrast kit |
| 3 | Dark field attachment |
| 4 | Polarization attachment |
Lab Expo digital microscopes allow you to observe samples without straining your eyes. They have coarse and fine focusing settings to provide clear, crisp photos. They include built-in LCD panels for high-resolution photos. They have LED lighting with intensity control. They have unlimited optical systems and may plan achromatic targets. They support Android and have USB connectivity. They feature sophisticated software for analysis and documentation. Our digital microscopes use modern technology to enable precise and fast sample analysis.
