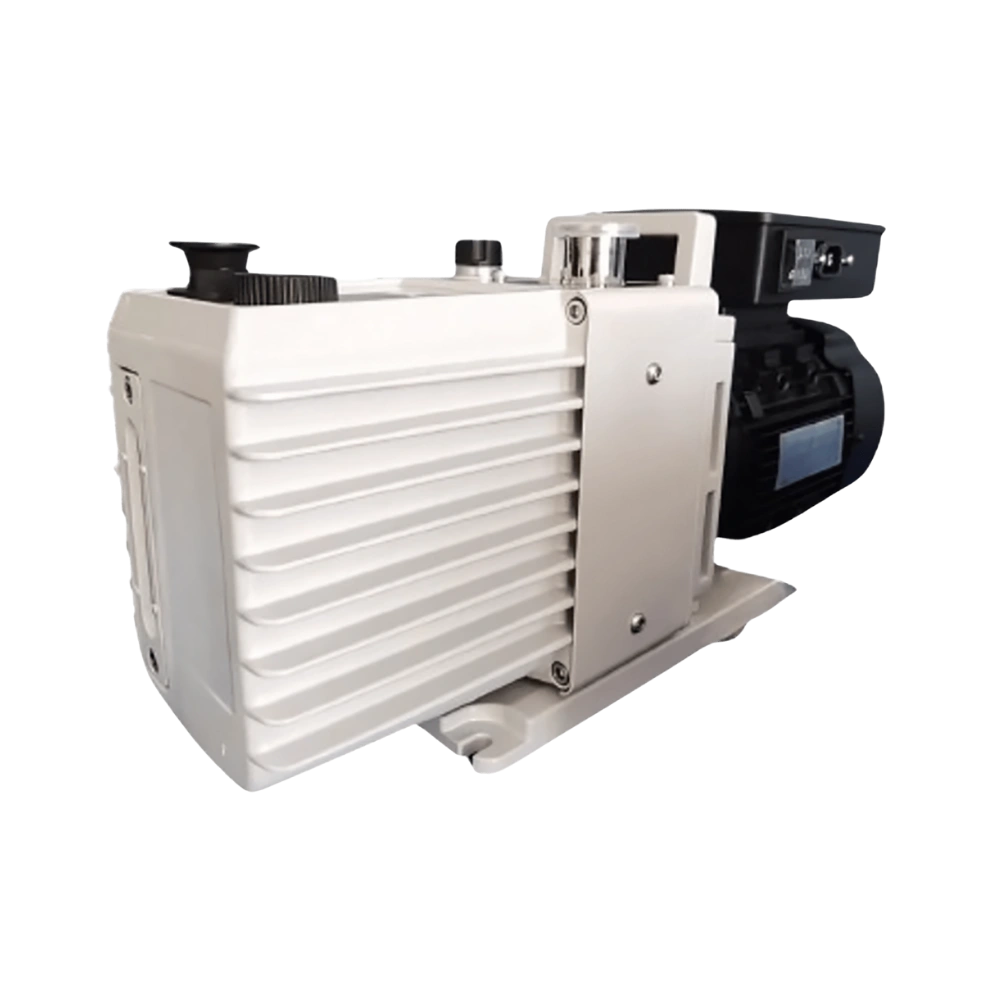

Double Stage Vacuum Pump LE-DVP103 delivers an ultimate pressure of ≤5 Pa with the gas ballast on for deep vacuum applications. It operates at a pumping speed of 9.9 m³/h for fast and efficient evacuation. Integrated with a dual-stage compression system to reduce the time required to reach low pressures. Our Double Stage Vacuum Pump provides thermal protection to safeguard against overheating during extended use.
Specifications
| Pumping Speed | 9.9 m³/h (50 Hz) |
| Ultimate Pressure | ≤ 5 Pa (Gas ballast on) |
| Motor Power | 0.4 kW (50 Hz) |
| Oil | BSO-608 |
| Oil Capacity | 1.1 L |
| Inlet | KF25/KF16 |
| Outlet | KF25 |
| Power Supply | 220 V, 50 Hz |
| Dimension | 72 × 27 × 29 mm |
| Net Weight | 25 kg |
| Gross Weight | 27 kg |
Features
Applications
Double Stage Vacuum Pump LE-DVP103 is widely used in laboratories, R&D facilities, and industrial processes for applications such as vacuum filtration, freeze drying, mass spectrometry, electron microscopy, and other systems requiring reliable and deep vacuum with thermal stability.
Lab Expo Double Stage Vacuum Pump offers reliable vacuum generation through its efficient dual-stage compression system. They are equipped with thermal protection system to prevent overheating during prolonged operation. Their oil-sealed design helps to prevent air from leaking and keeps the pump running smoothly. Our Double Stage Vacuum Pump is engineered to deliver reliable vacuum performance with long-lasting operational stability.
