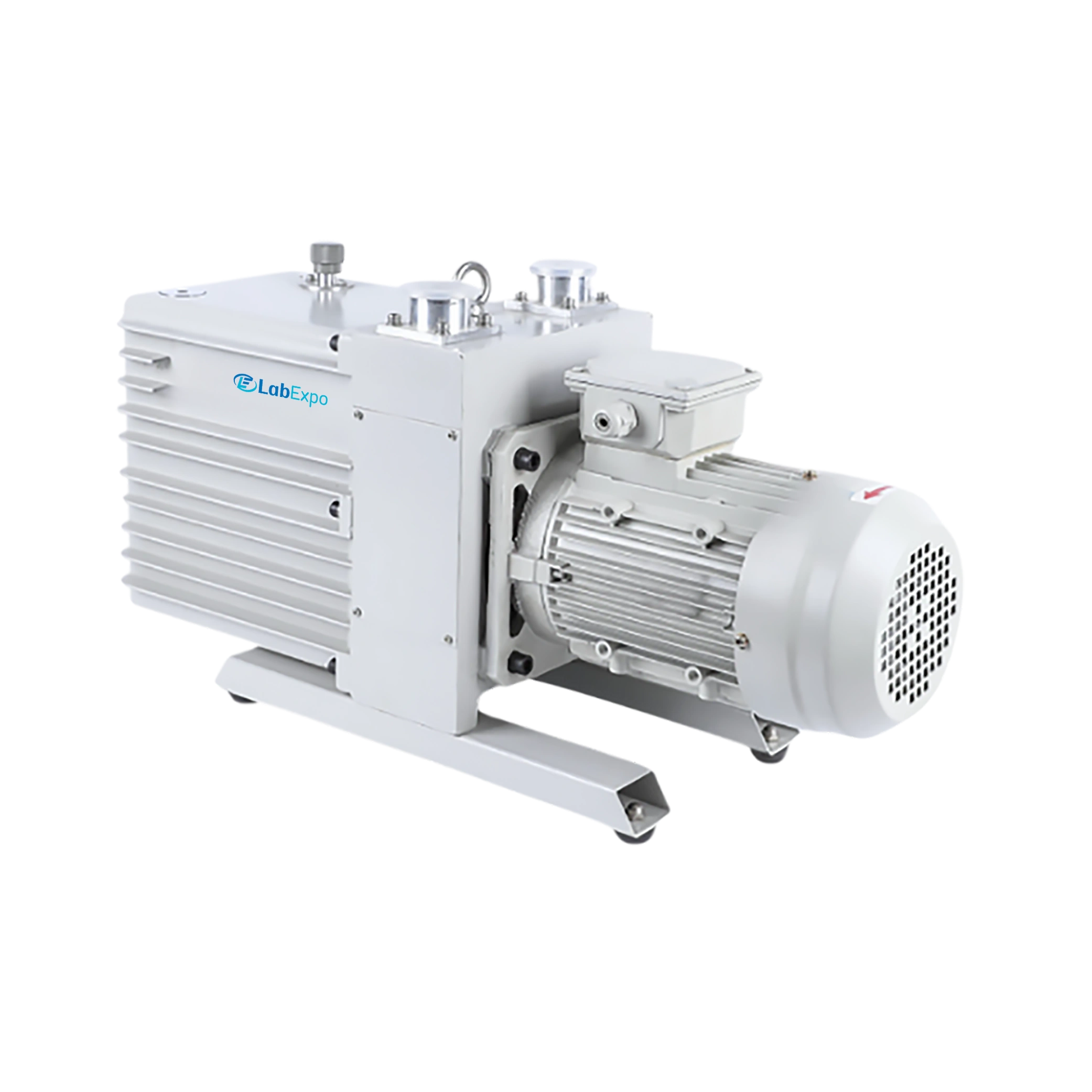

Double Stage Vacuum Pump LE-DVP107 provides a motor rotary speed of 1440 rpm, ensuring smooth and consistent operation. It is equipped with an oil capacity ranging from 20 to 25 liters, supporting extended running time and efficient lubrication. Built in with advanced sealing mechanisms to prevent backflow. Our Double Stage Vacuum Pump provides high flow rates delivering strong and efficient evacuation performance.
Specifications
| Pumping Speed | 160 m³/h |
| Ultimate Pressure | ≤ 2 Pa (Gas ballast on) |
| Maximum Outlet Pressure | 0.05 MPa |
| Motor Rotary Speed | 1440 rpm |
| Noise | 75 dB |
| Oil Capacity | 20 to 25 L |
| Inlet | VG80 |
| Outlet | VG50 |
| Power Supply | 380 V, 50 Hz |
| Dimension | 127 × 66 × 72 mm |
| Net Weight | 210 kg |
Features
Applications
Double Stage Vacuum Pump LE-DVP107 is commonly used in chemical processing, pharmaceutical manufacturing, food packaging, electronics, vacuum distillation, and laboratory operations.
Lab Expo Double Stage Vacuum Pump offers reliable vacuum generation through its efficient dual-stage compression system. They are equipped with thermal protection system to prevent overheating during prolonged operation. Their oil-sealed design helps to prevent air from leaking and keeps the pump running smoothly. Our Double Stage Vacuum Pump is engineered to deliver reliable vacuum performance with long-lasting operational stability.
