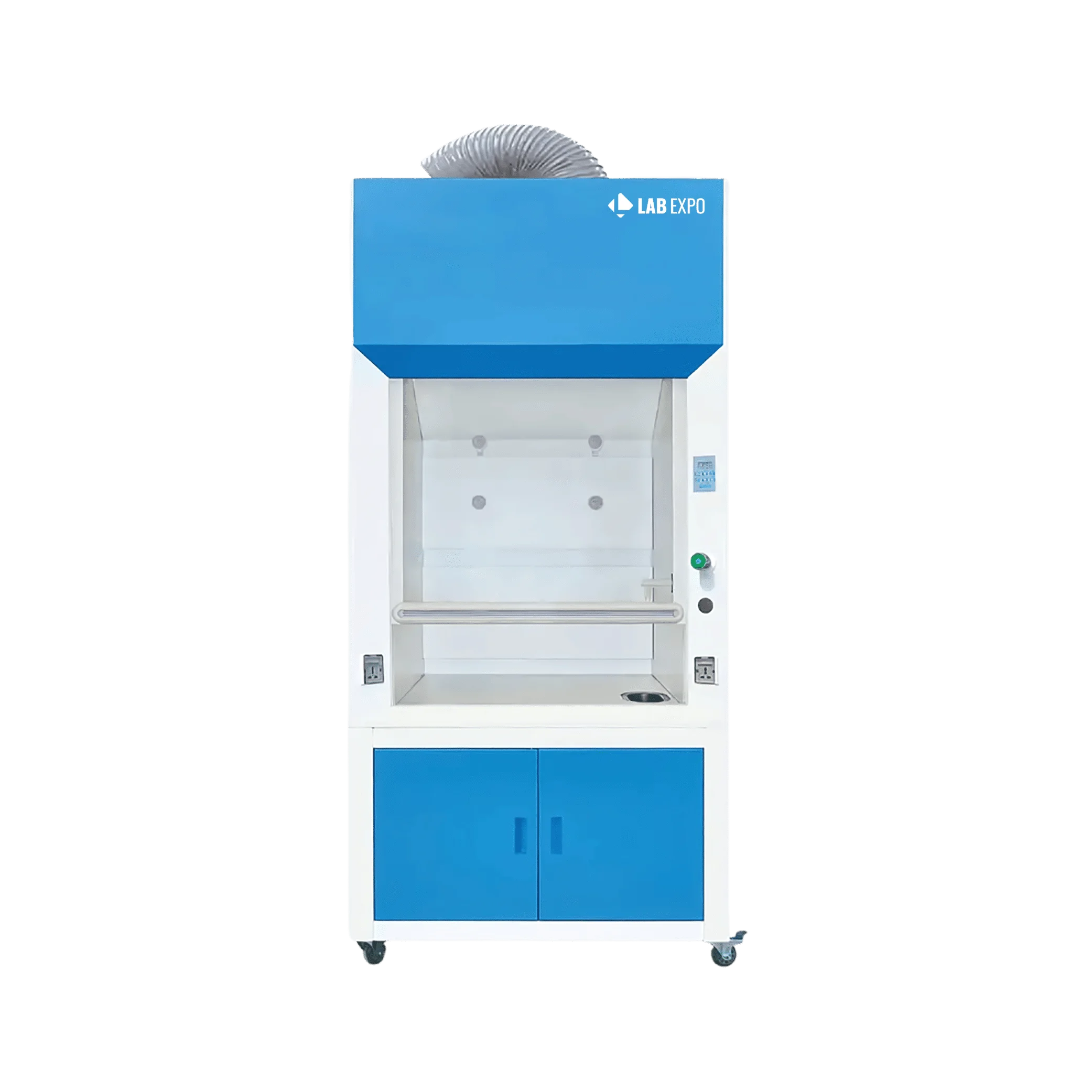

Ducted Fumehood 35-DTF200 manufactured by Lab Expo has a sash opening height of 750 mm and a working height of 900 mm presenting safety and excellent performance features. It is the ducted type of fume hood that removes toxic gases from the outside of the working environment. The fumehood material is resistant to acid and the base has moderate strength. It provides the highest level of fume containment even at air velocity as low as 0.3 m / s.
Specifications
| Exterior Size(W × D × H) | 1000 × 800 × 2365 mm |
| Interior Size(W × D × H) | 790 × 635 × 820 mm |
| Maximum Opening | 900 mm |
| Fluorescent Lamp | 8 W x 1 |
| Work Surface Height | 750 mm |
| Exhaust Duct | PVC 4 meters, φ 300 mm |
| Noise | ≤ 60 dB |
| Pipe Strap | 2 pcs |
| Power Supply | 220 V / 50 Hz; 220 V / 60 Hz; 110 V / 60 Hz |
| Power Consumption | 400 W |
| Package Size(WxDxH) | 1140 × 940 × 1720 mm |
| Gross Weight | 286 kg |
Features
Applications
Function Implementation Research labs 400 W power consumption supports continuous fume extraction Industrial facilities 900 mm maximum opening enables safe handling of large equipment Quality control labs ≤ 60 dB noise level minimizes distractions during precise measurements Clinical settings 790 × 635 × 820 mm interior size accommodates various medical equipment Pharmaceutical labs 0.3 m/s air velocity ensures effective fume containment and operator safety
Standard Accessories
UV lamp × 2
Water tap × 1
Water sink × 1
Base cabinet × 1
2 Waterproof sockets: 500 W
4 meters PVC exhaust duct × 1
Built-in PP blower × 1, LED fluorescent lamp × 1
Pipe strap × 1
Optional Accessories
Carbon filter, Gas tap × 1
Lab Expo Ducted Fumehoods support hazardous chemical handling where full exhaust containment and controlled airflow are required to protect personnel and the laboratory environment. The system operates with ducted air extraction using built-in blowers and adjustable airflow control to remove fumes effectively. Chemically resistant phenolic work surfaces, durable interior panels, and steel build ensure long-term use, while microprocessor-based monitoring, alarms, and safety functions maintain controlled, continuous containment performance.
