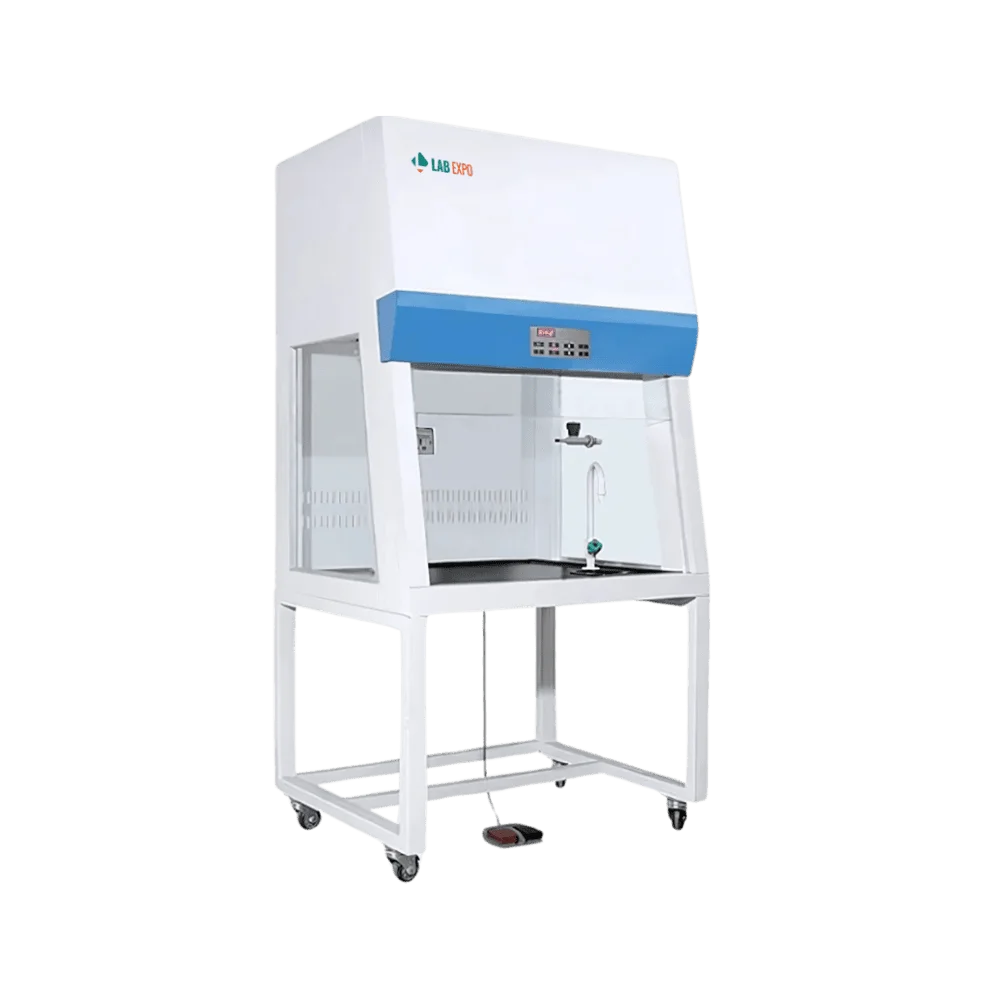

Ductless Fumehood 35-DLF103 manufactured by Lab Expo is easy to locate and install re-circulating fumehood, presenting an environmentally sensitive solution to personal lab protection. It provides duct-free air filtration using a carbon filter keeping controlled environments balanced and working to maximum efficiency. It is tested and proven to provide the highest level of fume containment, even at energy-saving face velocities as low as 0.3 m / sec.
Specifications
| Exterior Size(W × D × H) | 1800 × 840 × 2150 mm |
| Interior Size(W × D × H) | 1680 × 730 × 745 mm |
| Maximum Opening | 520 mm |
| Fluorescent Lamp | 36 W × 1 |
| Work Surface Height | 750 mm |
| Noise | ≤ 60 dB |
| Pipe Strap | 2 pcs |
| Power Supply | 220 V / 50 Hz; 220 V / 60 Hz; 110 V / 60 Hz |
| Power Consumption | 500 W |
| Package Size(WxDxH) | 1950 × 1120 × 1680 mm |
| Gross Weight | 340 kg |
Features
Applications
Function Implementation Research labs 500 W power consumption enables continuous operation Industrial facilities 220 V / 50 Hz power supply supports global compatibility Clinical settings 36 W fluorescent lamp provides adequate lighting Quality control labs 520 mm maximum opening facilitates easy access Educational institutions 750 mm work surface height supports ergonomic working
Standard Accessories

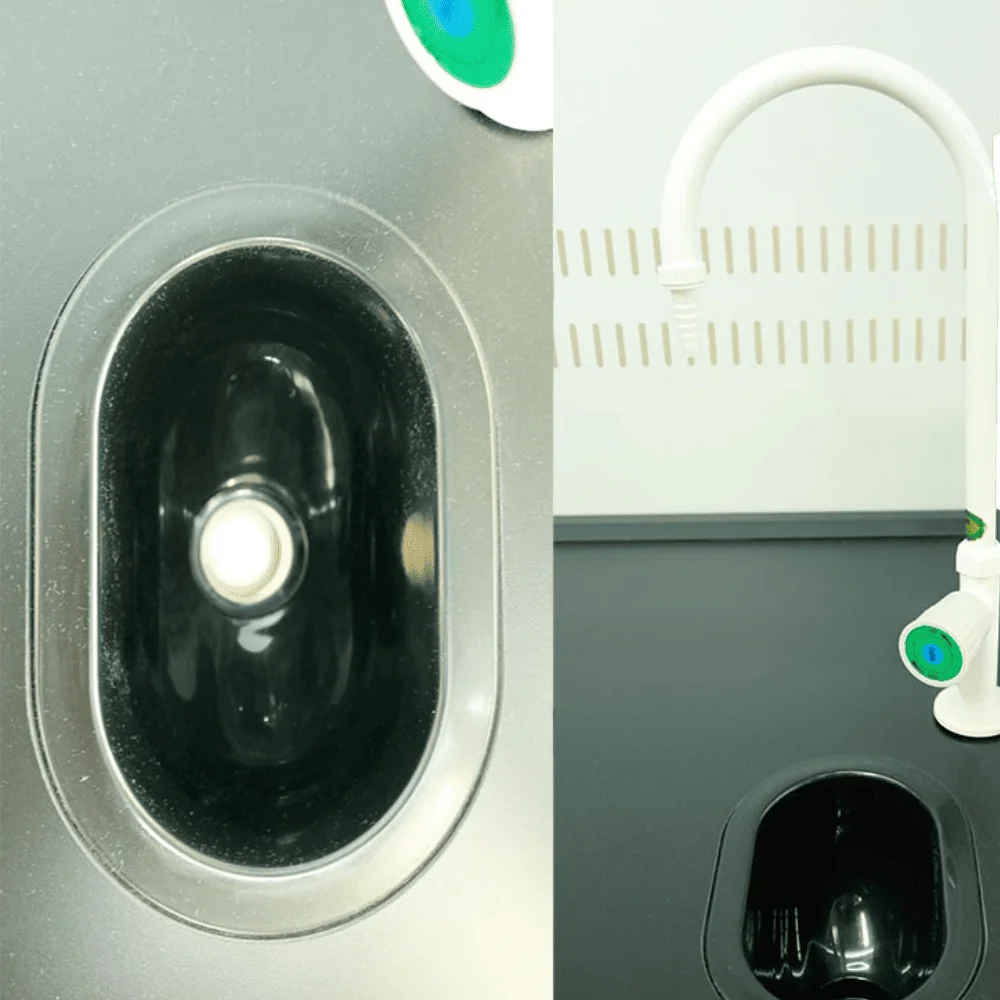

UV lamp × 2, Water tap × 1, Water sink × 1, LED fluorescent lamp × 1, Base cabinet × 1
2 Waterproof sockets: 500 W
4 meters PVC exhaust duct × 1
Pipe strap × 1
Gas tap × 1
Lab Expo Ductless Fumehood supports chemical handling workflows where duct-free containment and localized air filtration are required without external exhaust infrastructure. The system operates with activated carbon filtration, with optional HEPA stages, to adsorb hazardous vapors and particulates. Microprocessor-controlled airflow, motorized sash regulation, and digital monitoring maintain stable containment, while filter alarms and UV sterilization support controlled operation. This ductless chemical fume hood delivers consistent, energy-efficient protection for routine laboratory use.
