Educational microscope 43-EMS101
Product1

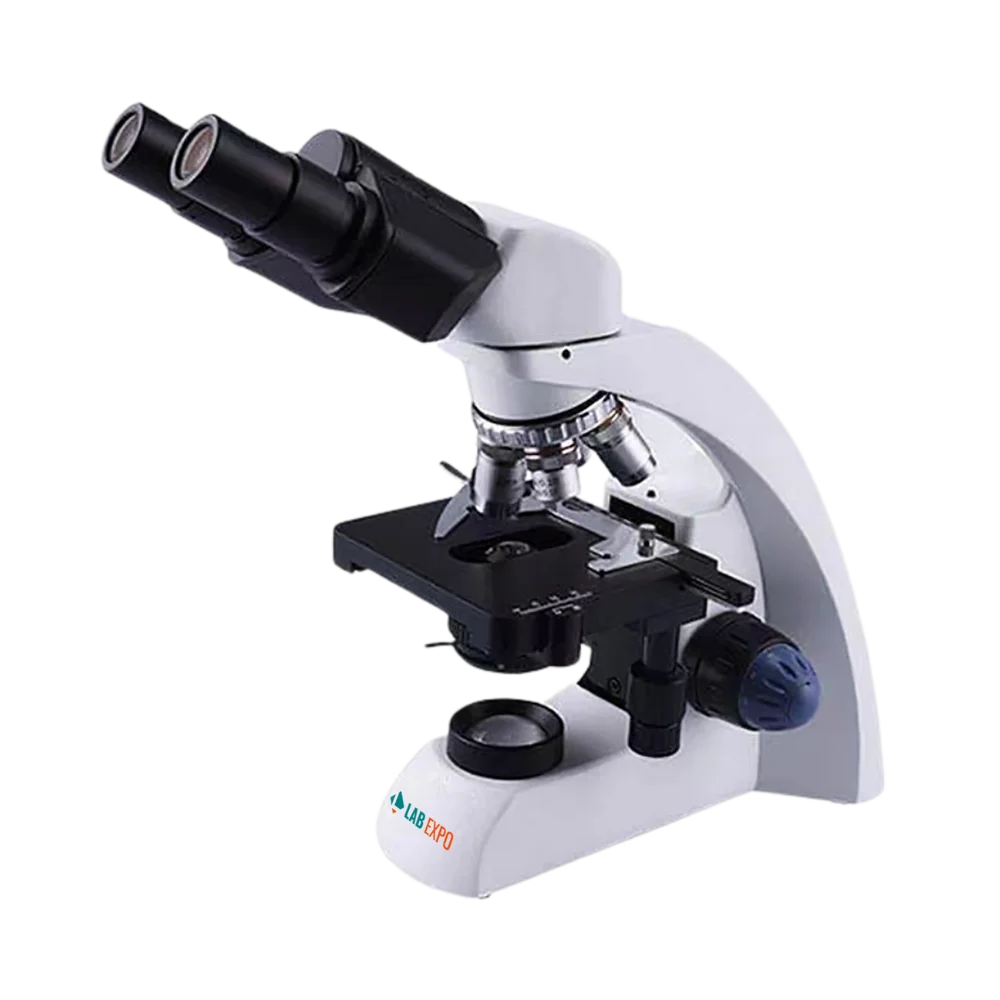

Product2

Educational microscope 43-EMS101

Educational microscope 43-EMS101 comes with siedentopf type binocular viewing head. With the help of coarse and fine focusing adjustment, LED source of illumination, it is possible to obtain clear and sharp images of the specimen. It is specially designed for examination & demonstration purpose. It can be used for advanced applications in schools and colleges.

Specifications

Optical System Finite Optical System
Viweing head Siedentopf binocular head, inclined at 30°
eyepiece tube rotation 360°
Nosepiece Quadruple nosepiece
Eyepiece Wide field eyepiece WF 10X / 18 mm
Objective Achromatic objective 4x, 10x, 40x(s), 100x(s,oil)
Stage Double layer mechanical stage: 110 × 125 mm
Focusing Coaxial coarse & fine adjustment, fine division 0.002 mm, coarse stroke 36 mm
Condenser Abbe N.A. 1.2 condenser with iris diaphragm with filter
Illumination 3 W / LED brightness adjustable
Dimension 330 × 260 × 410 mm
Net weight 4.2 kg
Gross weight 5.2 kg

Features

  • Siedentopf binocular head, inclined at 30°
  • Wide field eyepiece WF 10X
  • Quadruple nosepiece
  • Abbe N.A. 1.2 condenser with iris diaphragm with filter
  • Achromatic objective 4x, 10x, 40x(s), 100x(s,oil)
  • 3 W / LED as source of illumination

Applications

Educational microscope has applications in bacteriology, biology, research industries, school and colleges.

Optional Accessories

Monocular head, inclined at 30º eyepiece tube rotation 360º
Wide field eyepiece WF 16X / 13 mm
Wide field eyepiece WF 20X / 11 mm
3W/LED adjustment, rechargeable battery
Semi-Plan achromatic objectives 4x, 10x, 40x(s), 100x(s,oil)

Catalog

Educational microscope 43-EMS101 Catalog

Related Models Of Educational microscope

Lab Expo educational microscopes use a Siedentop binocular head for comfortable viewing. They have coarse and fine focusing and a wide field eyepiece. They have LED lighting for improved visibility. They include a triple turning nosepiece for flexible magnification. They employ achromatic objectives to ensure correct image quality. They are perfect for exams and demonstrations in schools and colleges. Our educational microscopes are reliable and user-friendly equipment for successful teaching and advanced uses.
