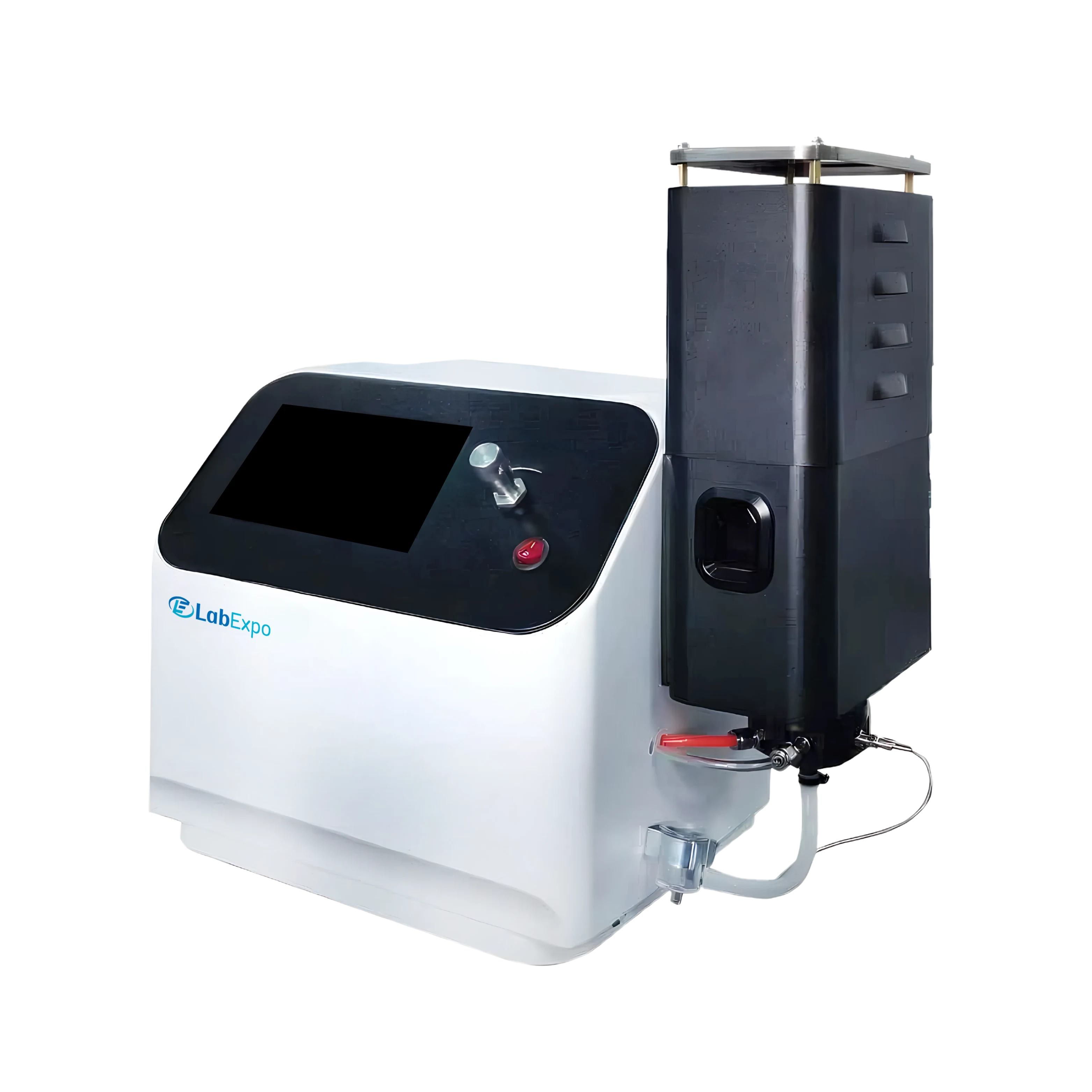

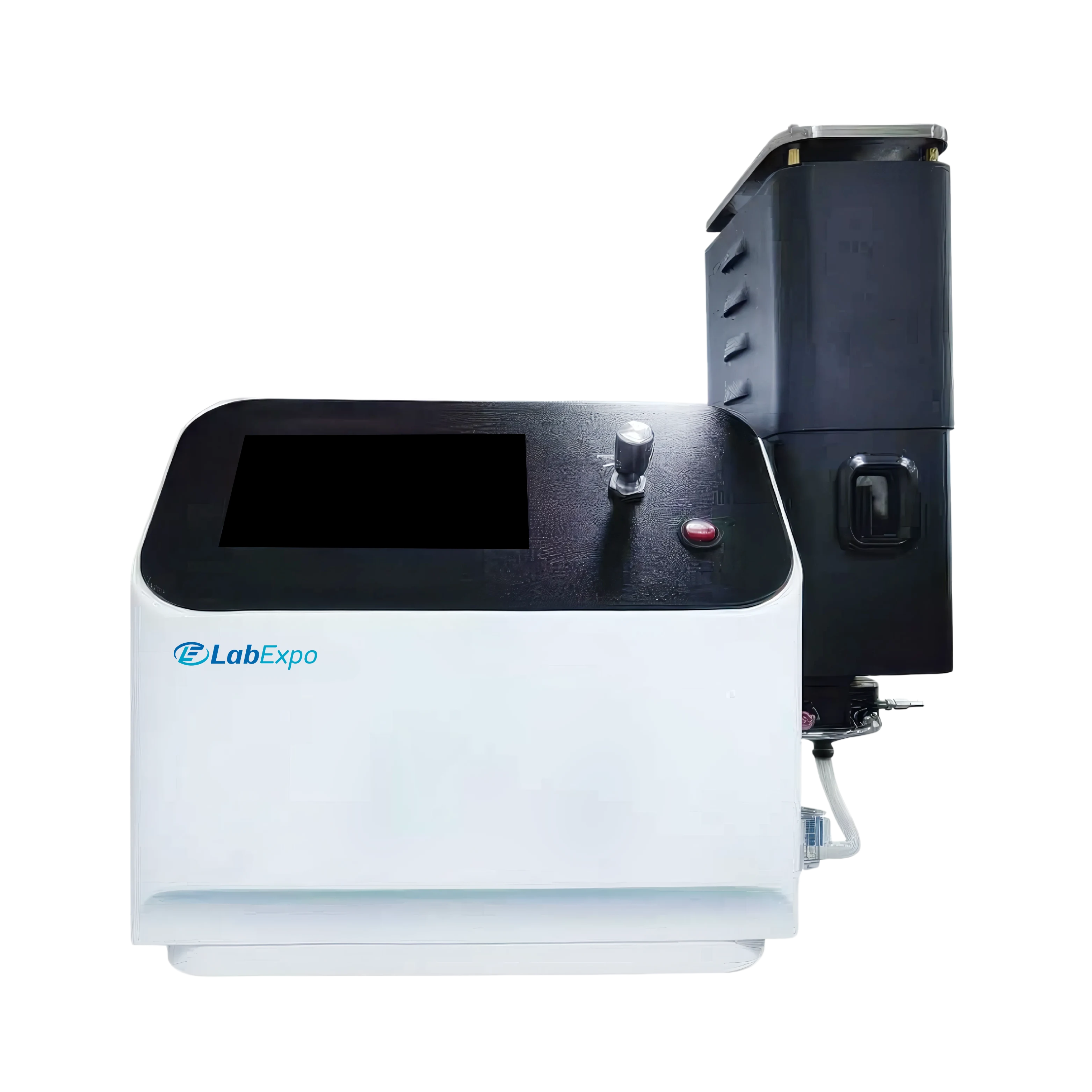

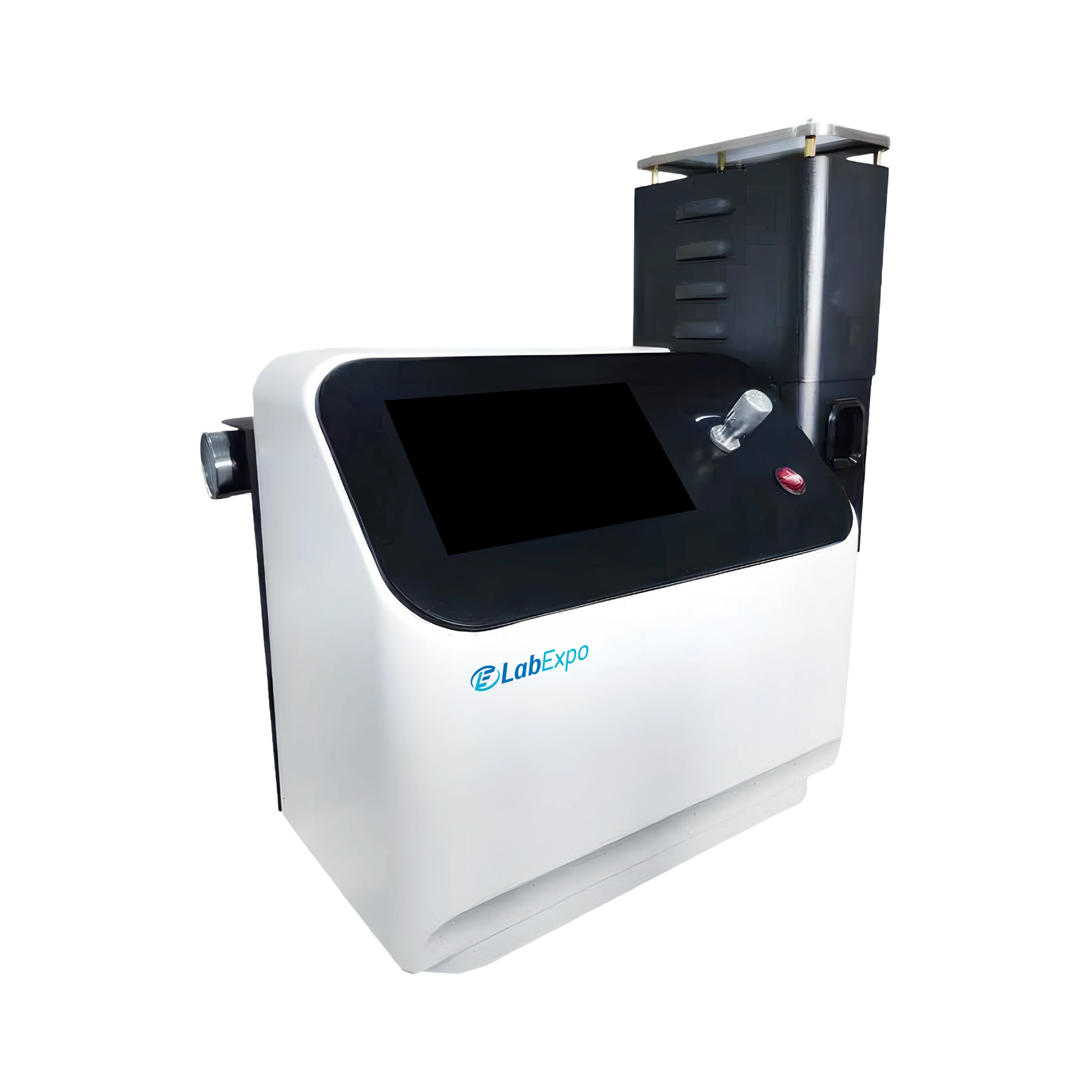

Flame Photometer LE-FPM102 is designed to measure lithium concentrations while supporting simultaneous detection of three elements. It offers a rapid response time, streamlining elemental testing for routine tasks. Equipped with stability control, it minimizes drift during measurements to ensure reliable results. Designed with LPG burner and a built-in air filter, it maintains consistent flame quality and safe operation. Our Flame Photometer is ideal for analytical applications in environmental, industrial, and agricultural laboratories.
Specifications
| Testing Elements | K, Na, Li |
| Channels | 3 |
| Display Value | Concentration value / Energy |
| Measuring Range | K: 0 to 100 ppm Na: 0 to 160 ppm Li: 0 to 100 ppm |
| Detection Limit | K: ≤ 0.004 mmol/L Na: ≤ 0.008 mmol/L Li: ≤ 0.015 mmol/L |
| Linearity Error | K: ≤ 0.005 mmol/L Na: ≤ 0.003 mmol/L Li: ≤ 0.021 mmol/L |
| Display | 7-inch capacitive touchscreen |
| Response Time | ≤ 8 s |
| Aspiration Rate | ≤ 6 ml/min |
| Stability | ≤ 3% drift within 15 s |
| Reproducibility | ≤ 3% |
| Calibration Curve | Yes |
| Printer | Yes |
| Fuel Supply | LPG |
| Output | USB port |
| Power Supply | AC 220V/50Hz or AC 110V/60Hz |
| Dimensions | 710 × 380 × 520 mm |
| Net Weight | 20 kg |
Features
Applications
Flame Photometer LE-FPM102 delivers accurate detection of K, Na, and Li, making it a reliable choice for laboratories conducting alkali metal analysis. It is particularly suited for biochemical research and lithium-based pharmaceutical studies.
Lab Expo Flame Photometers are high-performance instruments designed for precise detection. They utilize advanced flame emission technology to provide rapid, accurate analysis with real-time concentration readings displayed on a clear LCD. We provide models equipped with customizable flame settings, auto-ignition and liquid level detection assures precision. Our Flame Photometers feature advanced technology to ensure accuracy and safety.
