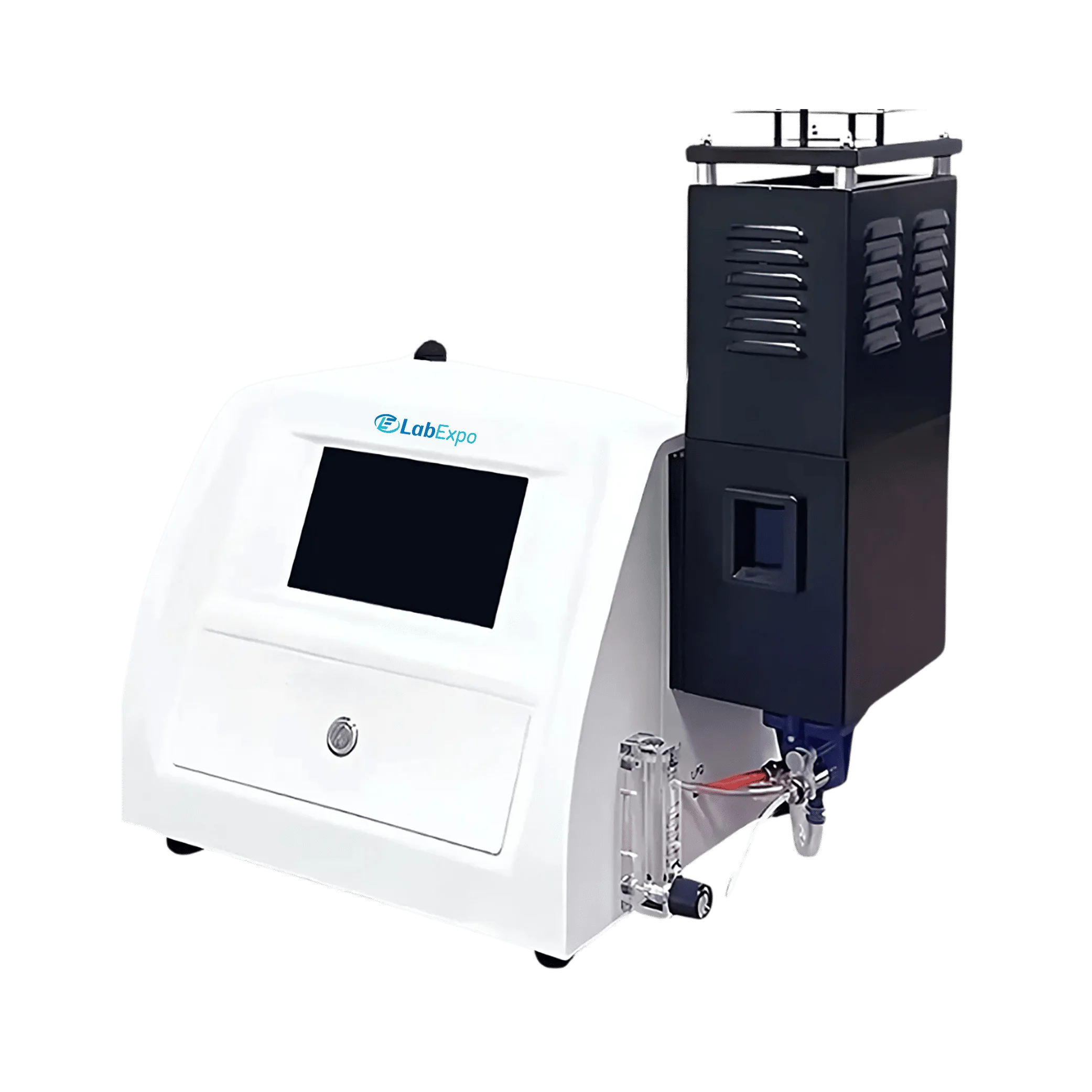

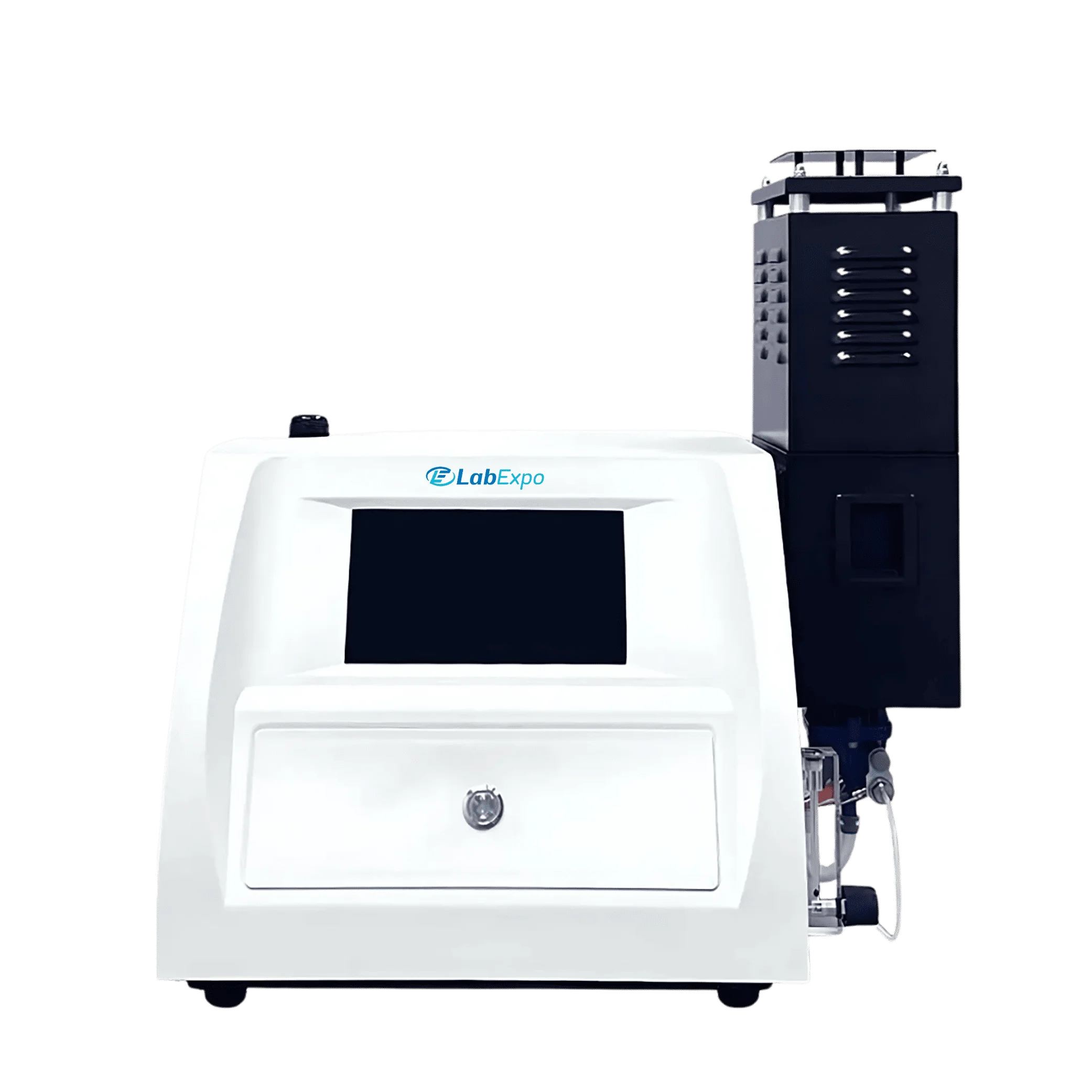

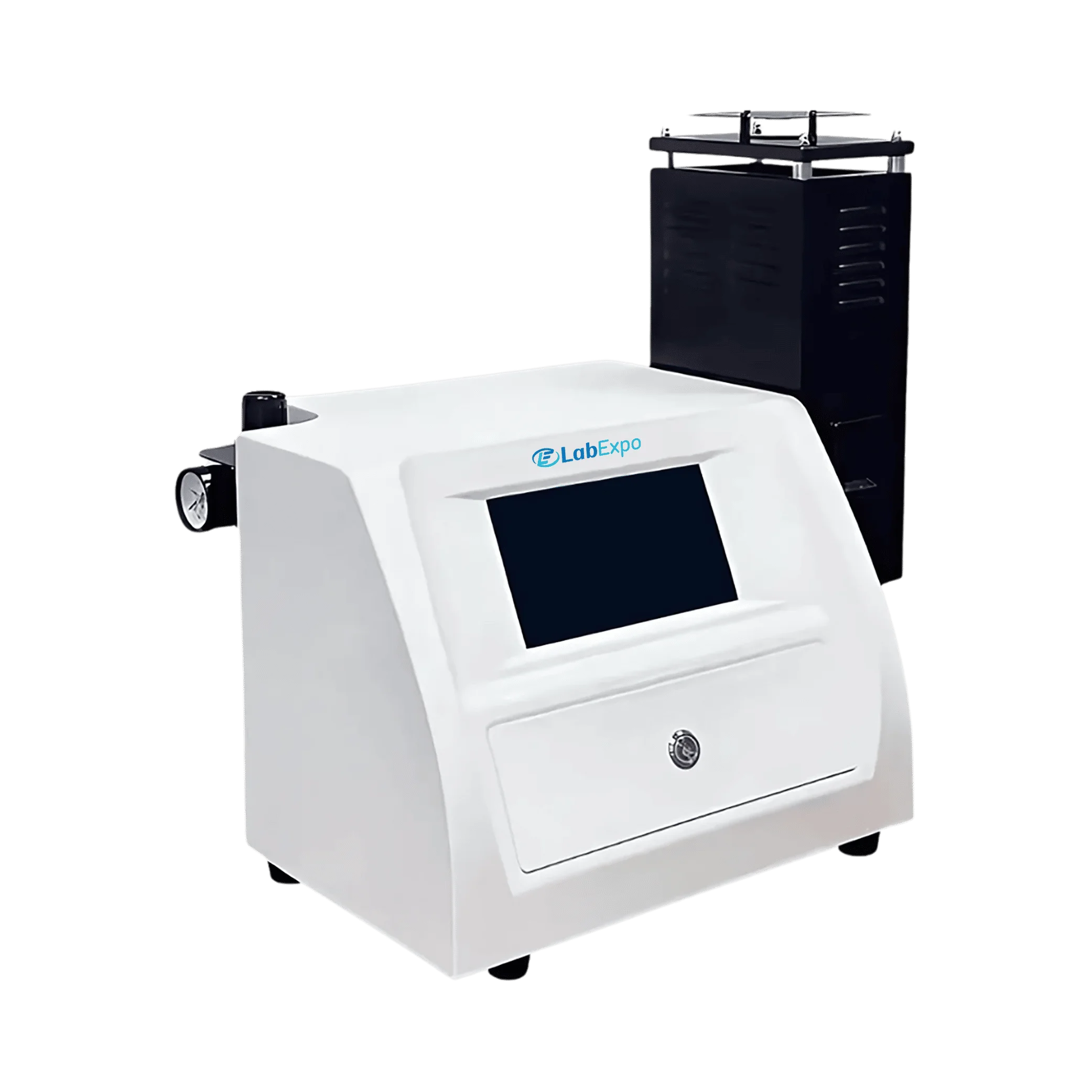

Flame Photometer LE-FPM202 delivers precise multi-element detection of K, Na, Li, and Ca through a four-channel system. It features an automatic gas cut-off function that prevents gas leakage during operation. Intgrated with push-button ignition and element concentration reading functionality. Built-in gas leakage alarm enhances operational safety for the user. Our Flame Photometer is well-suited for application in scientific research, health, education and other fields.
Specifications
| Testing Elements | K, Na, Li, Ca |
| No. of Channels | 4 |
| Test Range | K: 0.15 to 100 ppm |
| LOD | K: ≤0.156 ppm |
| Linear Error | K: ≤0.195 ppm |
| Response Time | Less Than 8s |
| Sample Uptake | Less Than 3ml/min |
| Stability | ≤3% drift (15S), ≤15% drift (6S) |
| Reproducibility | ≤2% |
| Air Compressor | External |
| Printer | Build-in Thermal Printer (Optional) |
| COM | USB |
| Fuel | LPG |
| Power Consumption | 250 W |
| Power Supply | AC 220V±22V |
| Frequency | 50Hz±1Hz |
| Packing Dimension | 570 × 530 × 400mm |
| Weight | 18 Kg |
Features
Applications
Flame Photometer LE-FPM202 is essential for analyzing cement, glass, ceramics, refractory materials, construction materials, fertilizers, soil, mining products, petroleum, metallurgy, chemicals, pharmaceuticals, beverages, food, municipal solid waste, and various laboratory samples in scientific research.
Standard Accessories
LPG reducing Valve - 1 Pc
Stainless steel bellows for LPG - 1 Pc
Silica gel tubing for waste liquid - 1 Pc
PU tubing for air - 1 Pc
Air Compressor - 1 Pc
Optional Accessories
Atomizer
Built-in thermal printer
Software
Lab Expo Flame Photometers are high-performance instruments designed for precise detection. They utilize advanced flame emission technology to provide rapid, accurate analysis with real-time concentration readings displayed on a clear LCD. We provide models equipped with customizable flame settings, auto-ignition and liquid level detection assures precision. Our Flame Photometers feature advanced technology to ensure accuracy and safety.
