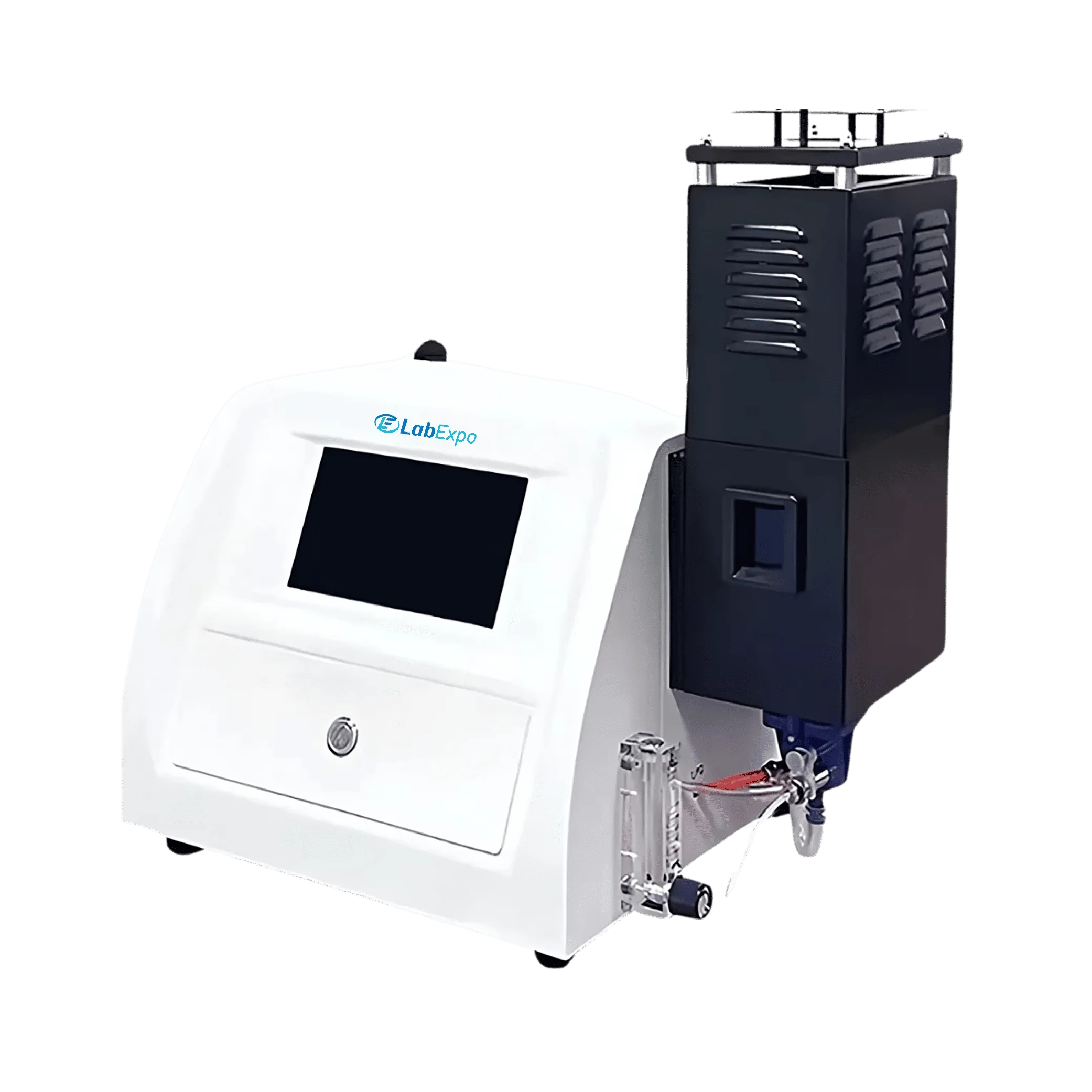

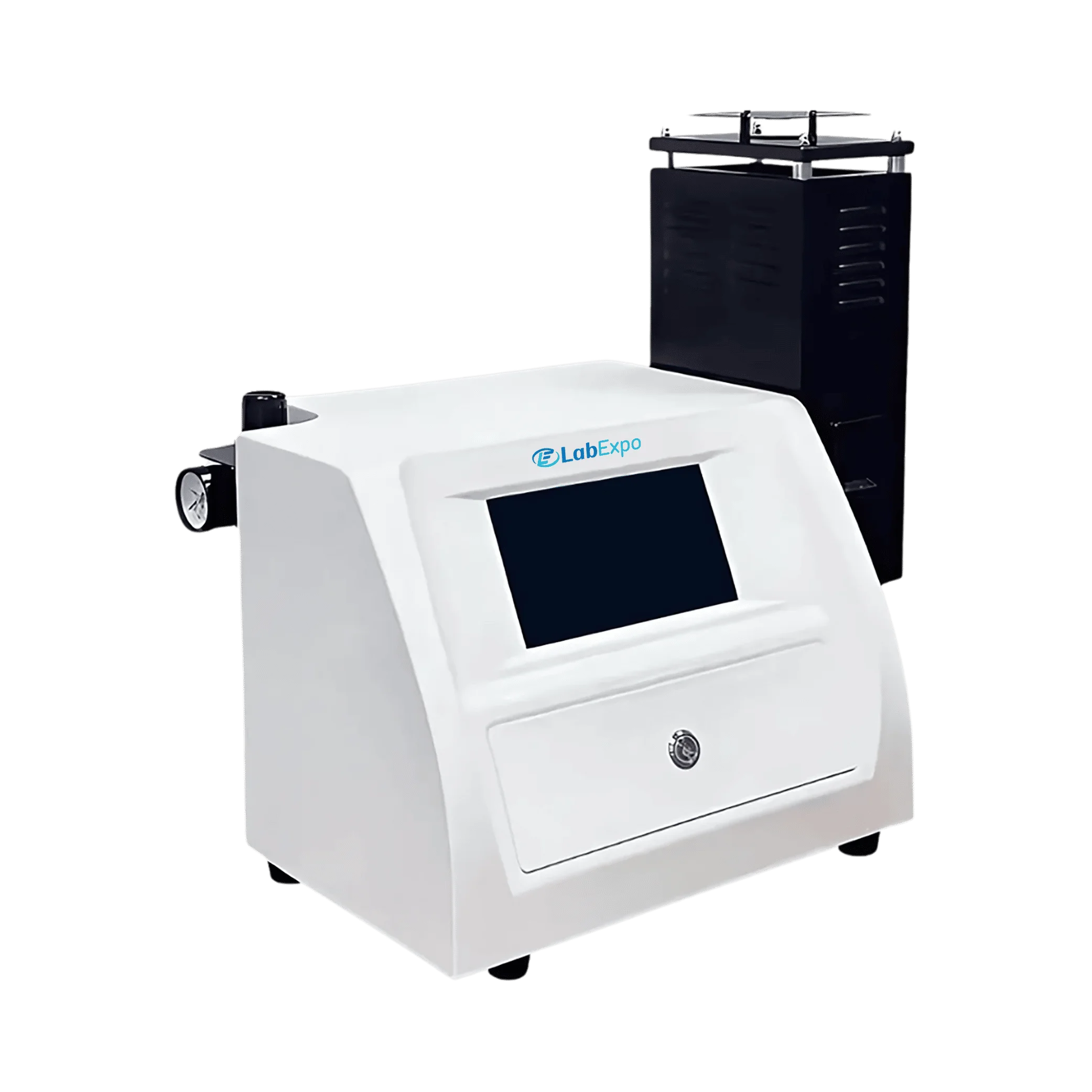

Flame Photometer LE-FPM203

Name: Flame Photometer LE-FPM203
Brand: Labexpo
SKU: LE-FPM203
Rating: 4.4 (837 reviews)

Flame Photometer LE-FPM203 is designed with three-channel detection for accurate analysis of elements such as K, Na, and Ca. It features an automatic flame-out shut down to enhance safety during operation. Equipped with element concentration reading function for precise analysis. Incorporated automatic correlation coefficient calculation enhances measurement accuracy. Our Flame Photometer is perfect for application in scientific research, health, education and other fields.

Specifications

Testing Elements	K, Na, Li, Ca
No. of Channels	4
Test Range	K: 0.15 to 100 ppm Na: 0.18 to 100 ppm Li: 0.1 to 30 ppm Ca: 0.1 to 1000 ppm
LOD	K: ≤0.156 ppm Na: ≤0.184 ppm Li: ≤0.1035 ppm Ca: ≤2 ppm
Linear Error	K: ≤0.195 ppm Na: ≤0.69 ppm Li: ≤0.1449 ppm Ca: ≤3 ppm
Response Time	Less Than 8s
Sample Uptake	Less Than 3ml/min
Stability	≤3% drift (15S), ≤15% drift (6S)
Reproducibility	≤2%
Air Compressor	External
Printer	Build-in Thermal Printer (Optional)
COM	USB
Fuel	LPG
Power Consumption	250 W
Power Supply	AC220V±22V
Frequency	50Hz±1Hz
Packing Dimension	570 × 530 × 400mm
Weight	18 Kg

Features

Multiple language support
USB communication port
Optional built-in printer
Detection range screen switching function
Automatic flame-out shut down
Push-button ignition
Automatic gas cut-off function

Applications

Flame Photometer LE-FPM203 is used for analyzing cement, glass, ceramics, mining products, chemicals, pharmaceuticals, beverages, food, and various laboratory samples in scientific research and healthcare.

Standard Accessories

LPG reducing Valve - 1 Pc

Stainless steel bellows for LPG - 1 Pc

Silica gel tubing for waste liquid - 1 Pc

PU tubing for air - 1 Pc

Air Compressor - 1 Pc

Optional Accessories

Atomizer

Built-in thermal printer

Software

Catalog

Flame Photometer LE-FPM203 Catalog
