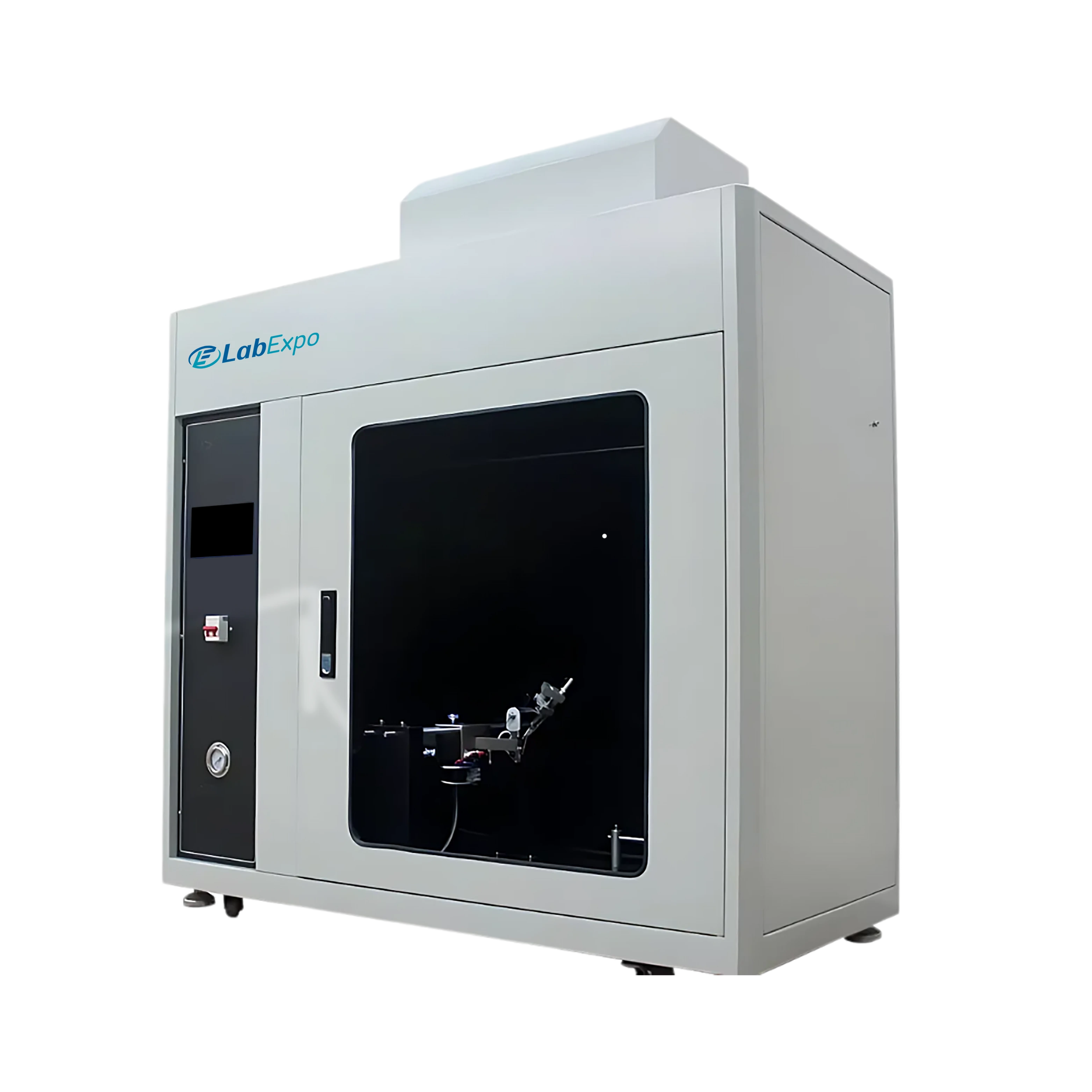

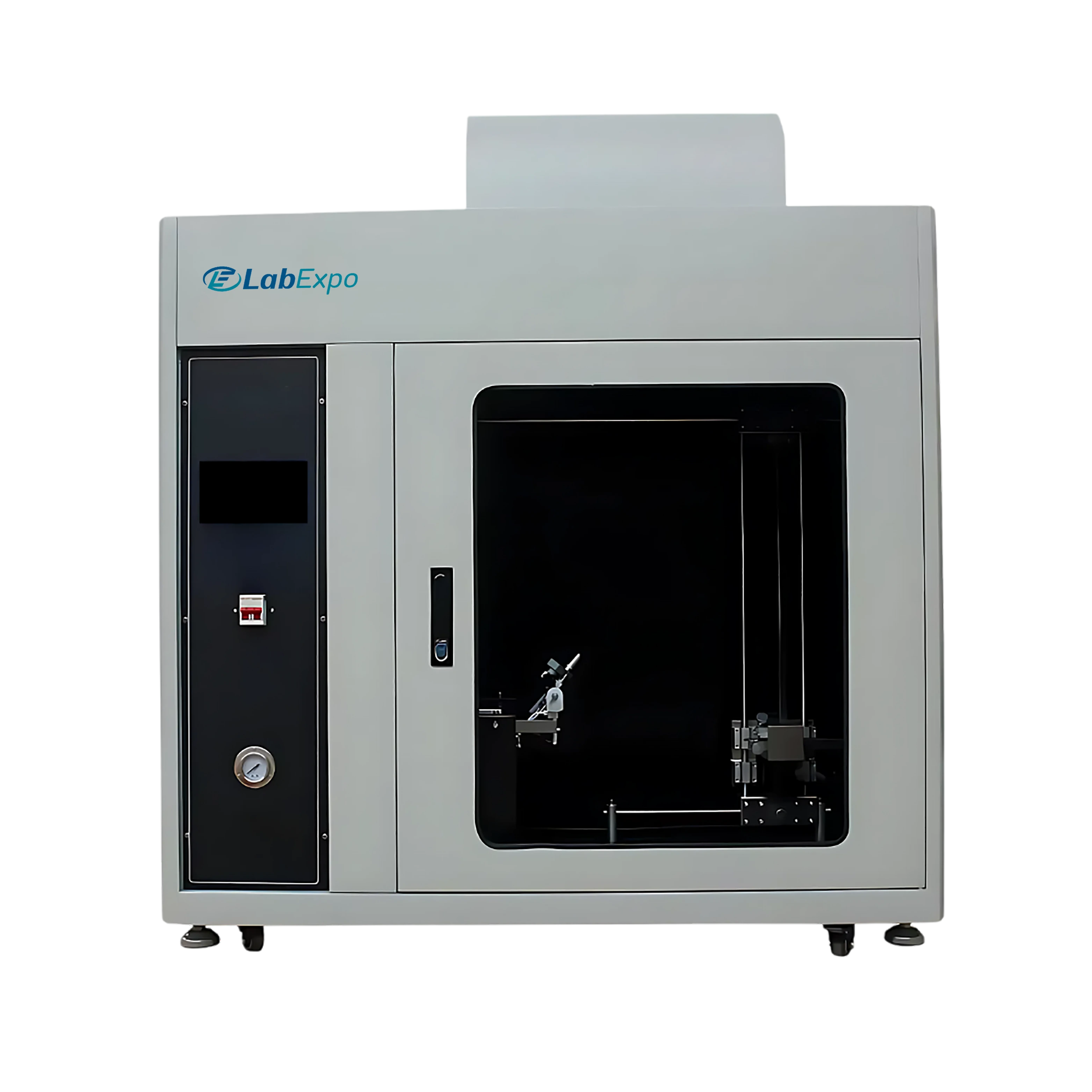

Flammability Tester LE-FTT101 provides chamber volume of 1 m³ for optimal airflow and flame stability. It uses high-purity methane gas as the fuel source to ensure stable performance. Equipped with a sensitive Type K thermocouple for reliable monitoring of flame temperature. Supports horizontal and vertical flame testing to enable comprehensive evaluation. Our Flammability Tester combines precision, reliability, and compliance with international standards.
Specifications
| Chamber Volume | 1 m³ |
| Flame Height | Adjustable 20 ± 2 mm to 180 ± 10 mm |
| Gas Supply | Methane, minimum 98% purity |
| Gas Flow | 965 ± 32 ml/min |
| Burner Tube | Internal diameter: 9.5 ± 0.3 mm |
| Burning Angles | 0°, 20°, 45° Adjustable |
| Temperature Range | 0 to 1000 °C |
| Temperature Rise Time | 100°C ± 5°C → 700°C ± 3°C |
| Thermocouple | Type K (Ni/Cr and Ni/Al), 0.5 mm diameter |
| Standard Copper Block | Ø9 mm ± 0.01 mm, 10 g ± 0.05 g |
| Timer | 0 to 999.9 s ± 0.1 s (Adjustable) |
| Flame Height Indicator | 40 ± 1 mm |
| Water Column Pressure | 125 ± 5 mm |
| Power Consumption | 500W |
| External Dimension | 1100 × 700 × 1300 mm |
| Weight | 128 kg |
Features
Applications
Flammability Tester LE-FTT101 is widely applied for evaluating the flammability of plastic materials used in consumer electronics, household appliances, and electrical devices.
Lab Expo Flammability Tester can accurately evaluate the fire resistance of materials under controlled conditions. They feature adjustable flame height and exposure time to simulate different testing scenarios. Their chamber is constructed with durable, heat-resistant materials to ensure safe operation. They support both vertical and horizontal sample positioning for versatile applications. Our Flammability Tester provides consistent, standardized, and dependable performance.
