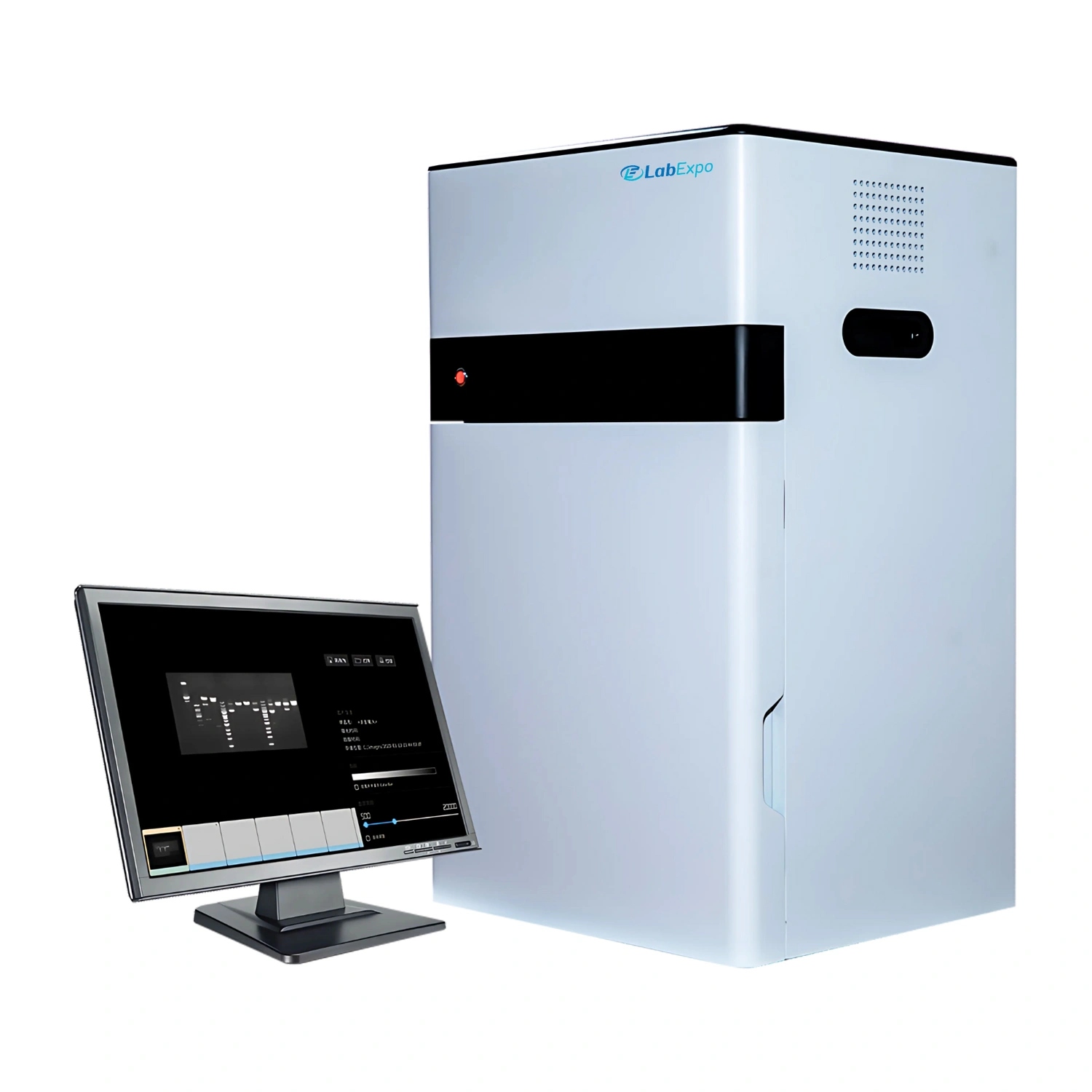

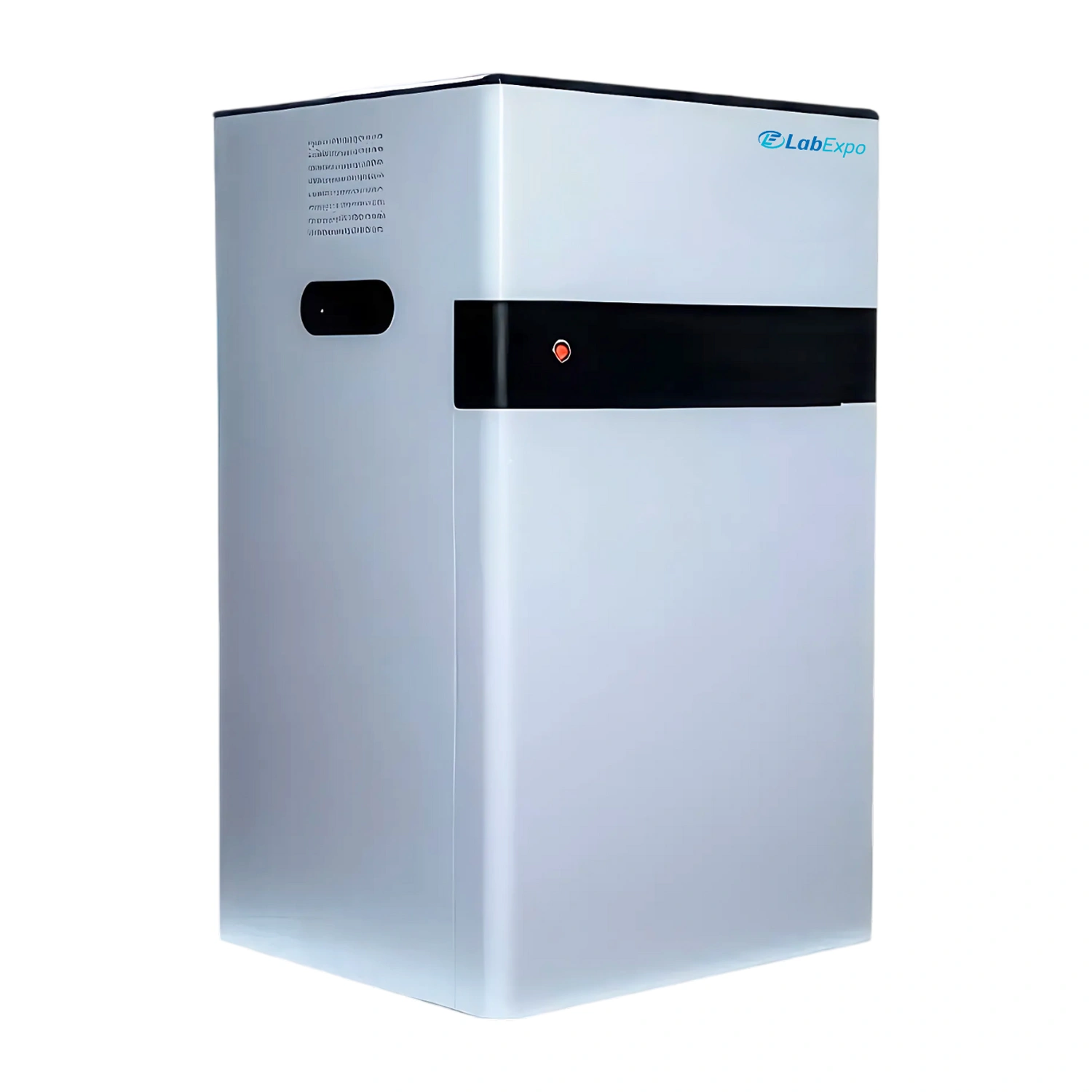

Gel Documentation System LE-GDS202 is designed with a 20 MP scientific grade digital camera for high-resolution imaging. Integrated real white LED transmission and autofocus ensures optimal sample visibility. Built-in automatic greyscale adjustment and real-time temperature display provide effortless operation. Incorporated with advanced calculation functions for molecular weight, band concentration, and density. Our Gel Documentation System is suitable for protein quantitative analysis and gel electrophoresis documentation.
Specifications
| Camera Type | Monochrome Scientific Digital Camera |
| Digital Camera Resolution | 20 Megapixels, 4800 × 4440 |
| Dynamic Range | 4.8OD |
| Pixel Density | 16bit（65536 Grey Scales） |
| Motorized Lens | F1.2 Motorized Lens |
| Lens Resolution | 20 Megapixels |
| Control | Numeric Focus Controlled via Software |
| UV Transmission | 302nm as Standard，Image Area：21x26cm （Optional 254nm, 365nm） |
| White LED Transmission | Real White LED Transmission, Image Area:19x26cm |
| Optional Blue LED Transmission | Optional Blue LED Transmission, Image Area:19x26cm |
| Filter | Standard Filter for UV Application Optional for Blue Transmission |
| Sensitivity | ≤5pg EtBr Stained DNA Samples |
| PC or Touch Screen | Standard Connection to PC External Touch Screen is Optional |
| Dimension | 430 × 360 × 700mm |
| Packing Dimension | 500 × 550 × 880mm |
| Net Weight | 19 Kg |
| Gross Weight | 26 Kg |
Features
Applications
Gel Documentation System LE-GDS2012 is suitable for protein quantitative analysis and electrophoresis gel documentation.
Optional Accessories
Our advanced Gel Documentation System features a high-resolution camera for sharp, precise image capture and analysis. They offer UV transillumination for nucleic acid detection and LED illumination for non-UV imaging, ensuring versatility. These have a wide dynamic range, allowing the detection of both faint bands and intense signals for accurate gel analysis. They allow easy integration with computers for quick data transfer and report generation. Our system allows users to adjust settings like brightness, contrast, and exposure for the best image quality.
