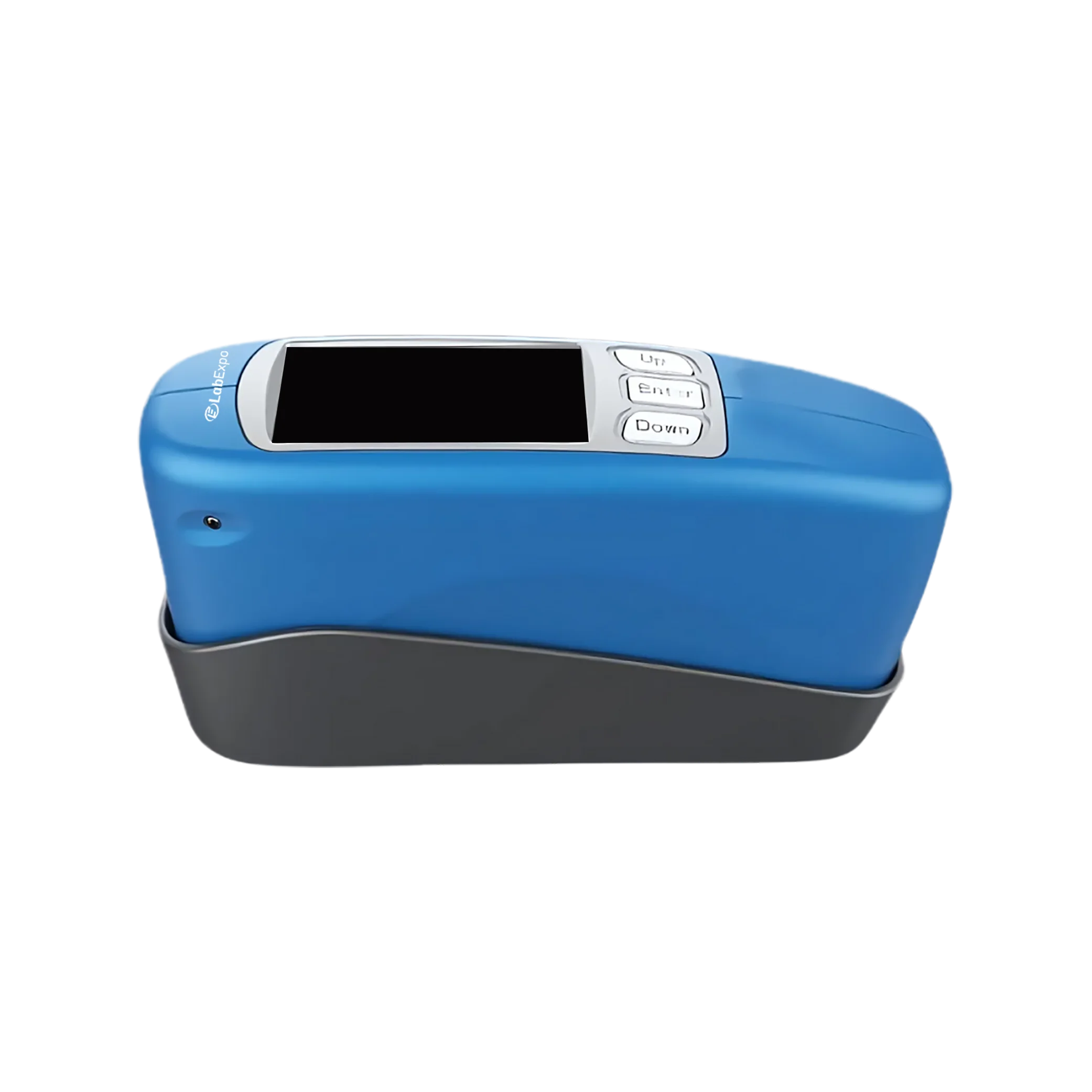

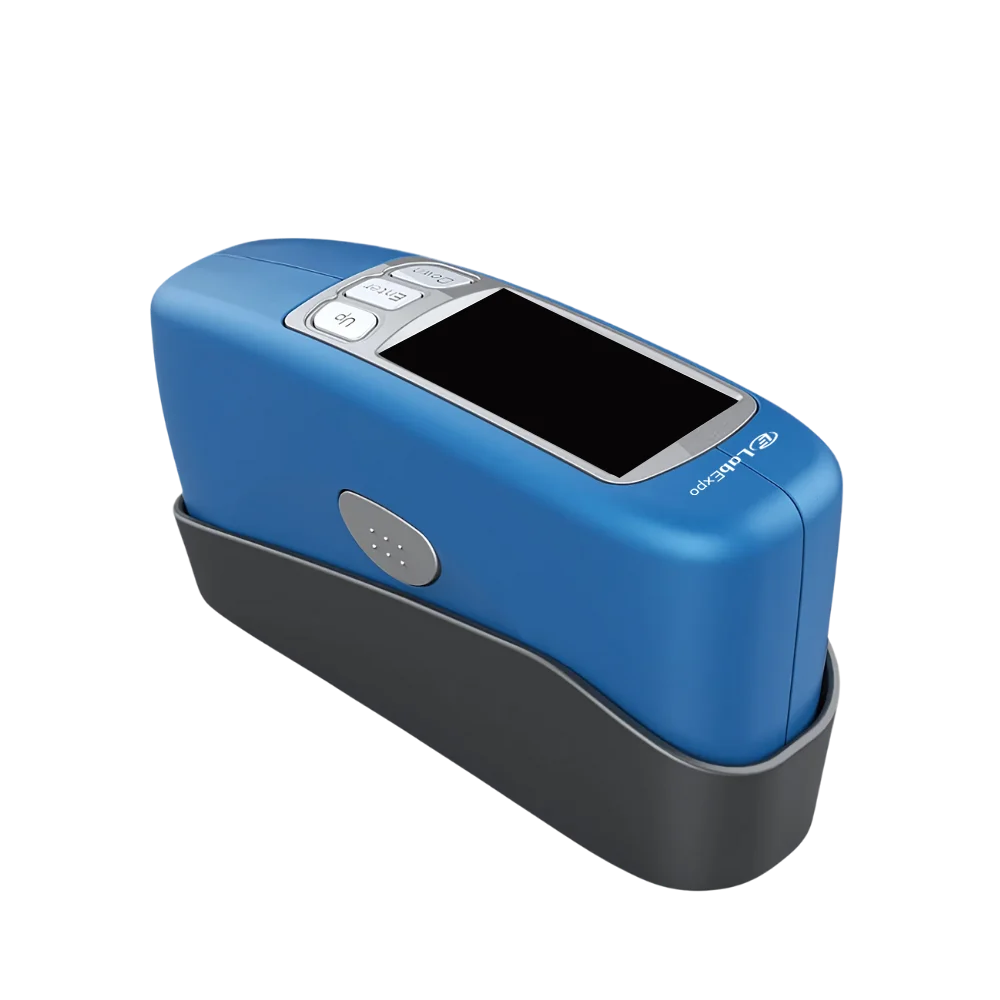

Gloss Meter 61-OTI100 offers a 60° measuring angle and measures the mid-range gloss area and gloss texture of plastics, glass, ceramic coating, packaging material, paper, paint, rubber, wood, leather, and flooring parts. It is equipped with a large lithium battery with a 3000 mAh capacity, which ensures continuous testing for 54300 times. All the tests taken from this gloss meter are confirmed to international standards.
Specifications
| Test angle | 60° |
| Test light spot | 60°, 9×15 mm |
| Measurement range | 60°, 0 to 1000 GU |
| Resolution | 0.1 GU |
| Tet modes | Simple mode, standard mode, sample testing mode |
| Repeatability | 0 to 100 GU: 0.2 GU, 100 to 2000 GU:0.2% GU |
| Test time | 0.5 S |
| Working temperature | 0 to 40°C |
| Working humidity | < 85%, no condensation |
| Port | USB, Bluetooth (optional) |
| Data storage | 100 standard samples, 1000 test samples |
| Size (L*W*H) | 165 × 51 × 77 mm |
| Weight | About 400 g |
| Battery capacity | 3000 mAh lithium battery |
Features
Applications
Gloss Meter 61-OTI100 is used for quality analysis, and research purposes across production units and laboratories.
Catalog
Lab Expo offers Gloss Meter designed for precise gloss measurements across various surfaces. They provide customizable angle selection and advanced functions for efficient data management and analysis. Our meter's compact design ensures easy handling and a long-life light source. They offer massive data storage and provide reliable performance in diverse environments. They offer USB connectivity making them an ideal tool for detailed gloss measurement in various industries. Our gloss meter features PC software for effective data management, accurate measurements, and in-depth analysis.
