Graphite Kjeldahl Digester 40-GKD100
Product1
Product2
Product3

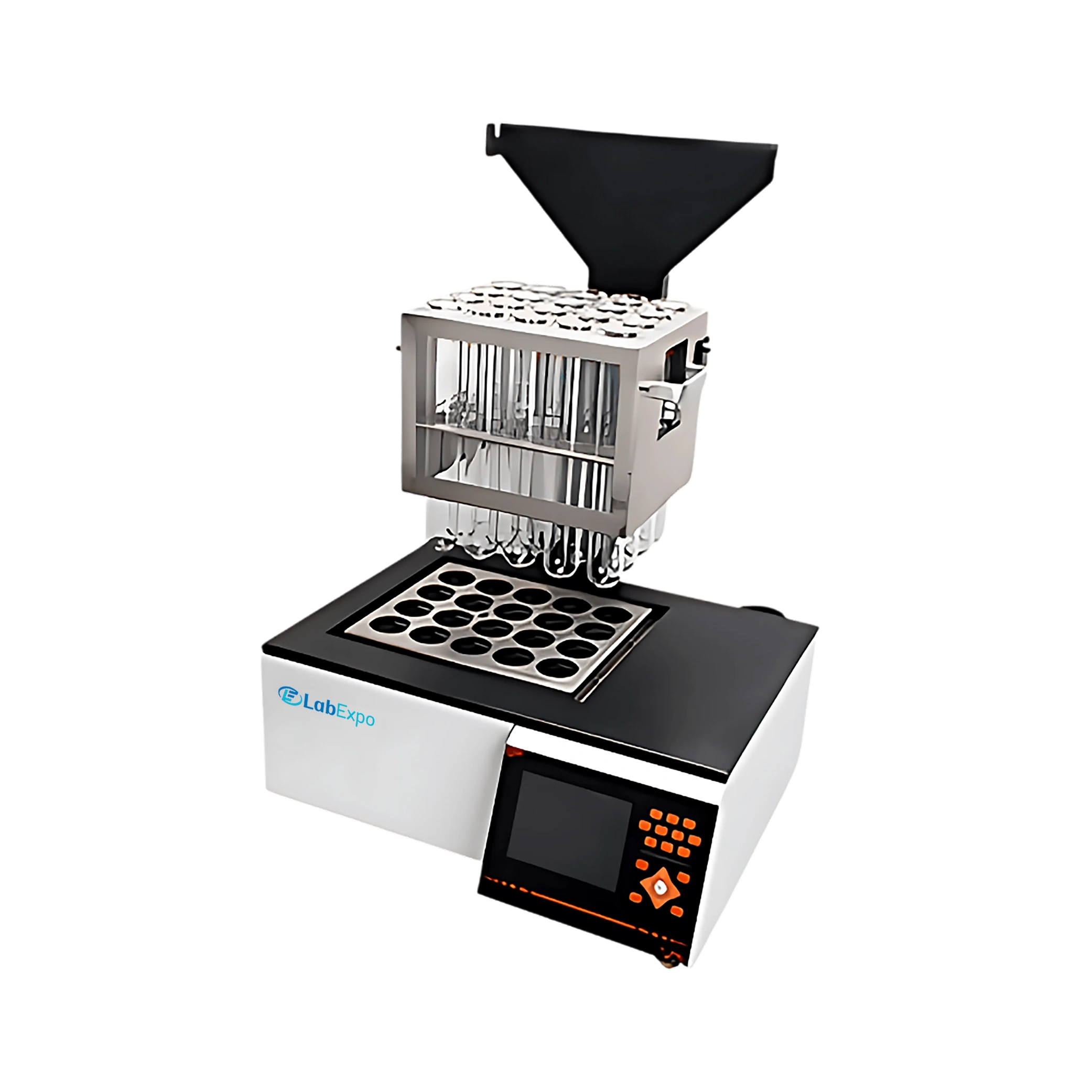

Graphite Kjeldahl Digester 40-GKD100

Graphite Kjeldahl Digester is an eco-friendly graphite digester system that has an anti-corrosive design and uses high temperature infrared radiation heating technology. It offers 20 digestion programs and is equipped with 5.7" colour screen for easy use. With features such as advanced PID temperature control technology and advanced insulation technology, provides over-current protection, high temperature warning and over load protection.

$8,664.00 $ 7220

Specifications

Temperature Range 5 °C - 450 °C
Digestion Tube Capacity 280 ml
Capacity Per Batch 20 pcs / batch
Heating Method Infrared heating and high-purity graphite conduction
Heating Insulation Method Unique air duct insulation technology
Temperature Accuracy ± 1 °C (450 °C)
Power Supply AC 220 V ± 10 % / 50 Hz
Power 3.6 kW
Dimension 474 x 509 x 636 mm
Net Weight 25 kg

Features

  • 5.7" colour screen
  • Corrosion-resistant design with waste gas collection hood attached to it
  • Heating method used is Infrared heating and high-purity graphite conduction
  • Offers 20 digestion programs
  • Advanced insulation technology
  • Advanced PID temperature control technology
  • Linear and curve temperature rise mode available
  • Ensures anti-oxidation processing and uniform heating
  • Provides over-current protection, high temperature warning and overload protection
  • Can pre-treat for microwave digestion or remove acid after digestion
  • Comprises of high-quality anticorrosive pumps
  • Easy-to-use

Applications

Graphite Kjeldahl Analyzer is used in Food & Feed, Beverage, Chemical and Pharmaceutical Industries to break down the bonds that hold the polypeptide together, to convert the polypeptides into simpler molecules before Kjeldahl distillation process and also to speed up the reaction.

Catalog

Graphite Kjeldahl Digester 40-GKD100 Catalog

Related Models Of Graphite Digester

Lab Expo offers Graphite Digesters designed for sample digestion. They are corrosion-resistant and utilize infrared heating with high-purity graphite. These digesters include advanced PID temperature control, LCD screens, and insulation technology. They can be used for microwave digestion preparation or to eliminate acid after digestion. Our graphite digesters deliver efficient, uniform heating while being environmentally friendly. Our digesters provide safety by protecting against overcurrent, excessive temperatures, and overloads.
