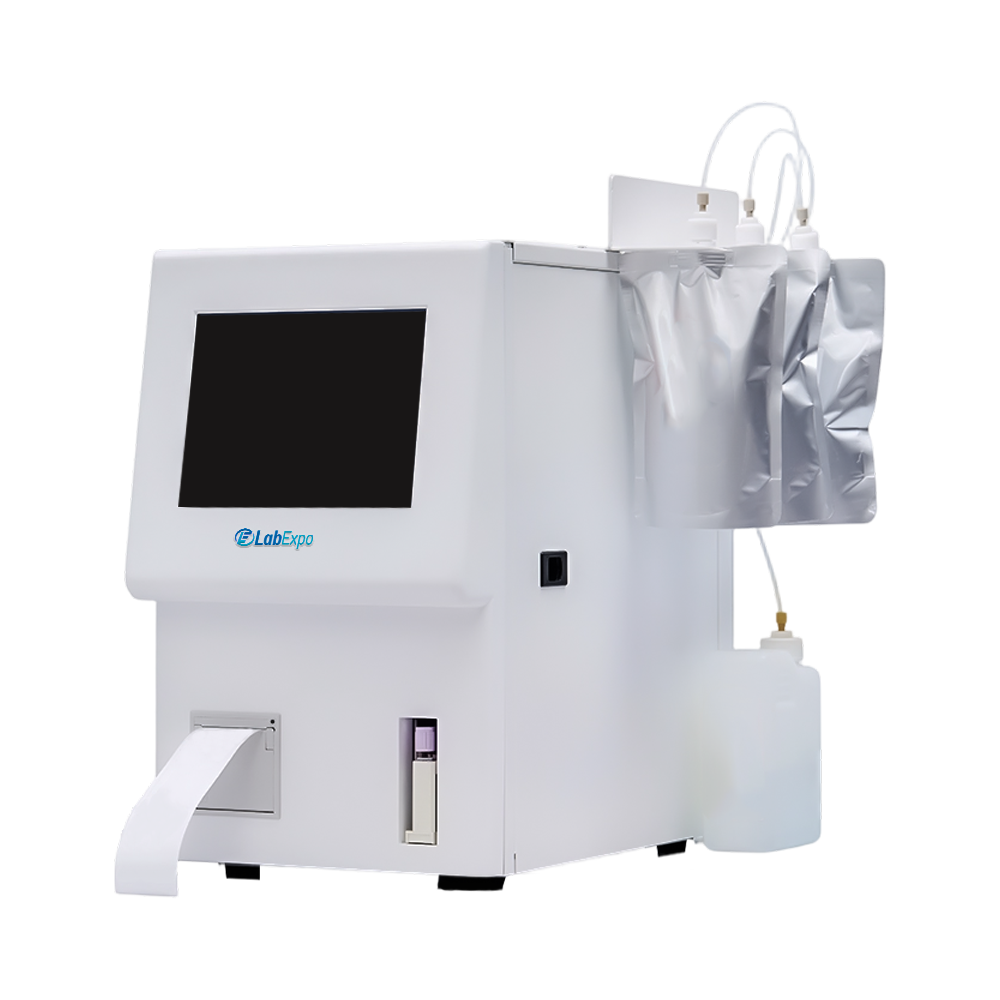

Hemoglobin Analyzer LE-HA100 offers accurate testing with just 5 µL of whole blood (5 µL: 1000 µL ratio). It features a wide operating temperature range of 5 to 38°C for reliable performance. Built In column capacity supports 4,000 tests, expandable up to 10,000 tests for high-throughput use. Our Hemoglobin Analyzer provides easy information input through a built-in barcode scanner or touch keyboard.
$7,008.00 $ 5840
Specifications
| Sample Volume | 5 µl whole blood (ratio 5 µl : 1000 µl) |
| Working Temperature | 5 to 38°C |
| Humidity | 30 to 75% |
| Column Capacity | 4,000 tests (up to 10,000 tests) |
| Measurement Range | HbA1c: 3 to 25 % HbF: 0 to 3.45 % HbA2: 0 to 15 % |
| Precision | CV ≤ 1.5% |
| Sample Rack | 10 positions |
| Pre-sieve | 300 to 400 tests |
| Test Mode & Speed | Fast mode: 90 seconds/test Variant mode: 145 seconds/test β-Thalassemia (A2/F) mode: 300 seconds/test |
| Photometer | 415 nm LED, 20,000 hours lifespan |
| Parameter | HbA1a, A1b, HbF, LA1c, Alc (stable Alc), A0, HbA2, Hb variants, S, C, D, E, J |
| Storage | 50,000 test results |
| Data Transfer | USB port; LIS/HIS; independent PC software |
| Power Supply | 110V to 220V, 50 to 60 Hz |
| Product Dimensions | 310 × 470 × 500 mm |
| Packing Dimensions | 480 × 350 × 550 mm |
| Net Weight | 20 kg |
| Gross Weight | 46 kg |
Features
Applications
Hemoglobin Analyzer LE-HA100 is widely used as a reliable diagnostic tool in hospitals, clinics, laboratories, blood banks, and health screening centers for rapid hemoglobin testing and anemia screening.
Optional Accessories
Chromatography Column
1000 Test Kits
Labexpo Hemoglobin Analyzer is a compact, high-precision diagnostic device designed for fast and reliable hemoglobin measurement. It supports rapid testing for anemia screening and routine clinical use, delivers consistent results across a wide operating temperature range. With built-in barcode scanning or touch keyboard input, it streamlines workflow in hospitals, clinics, laboratories and blood banks.
