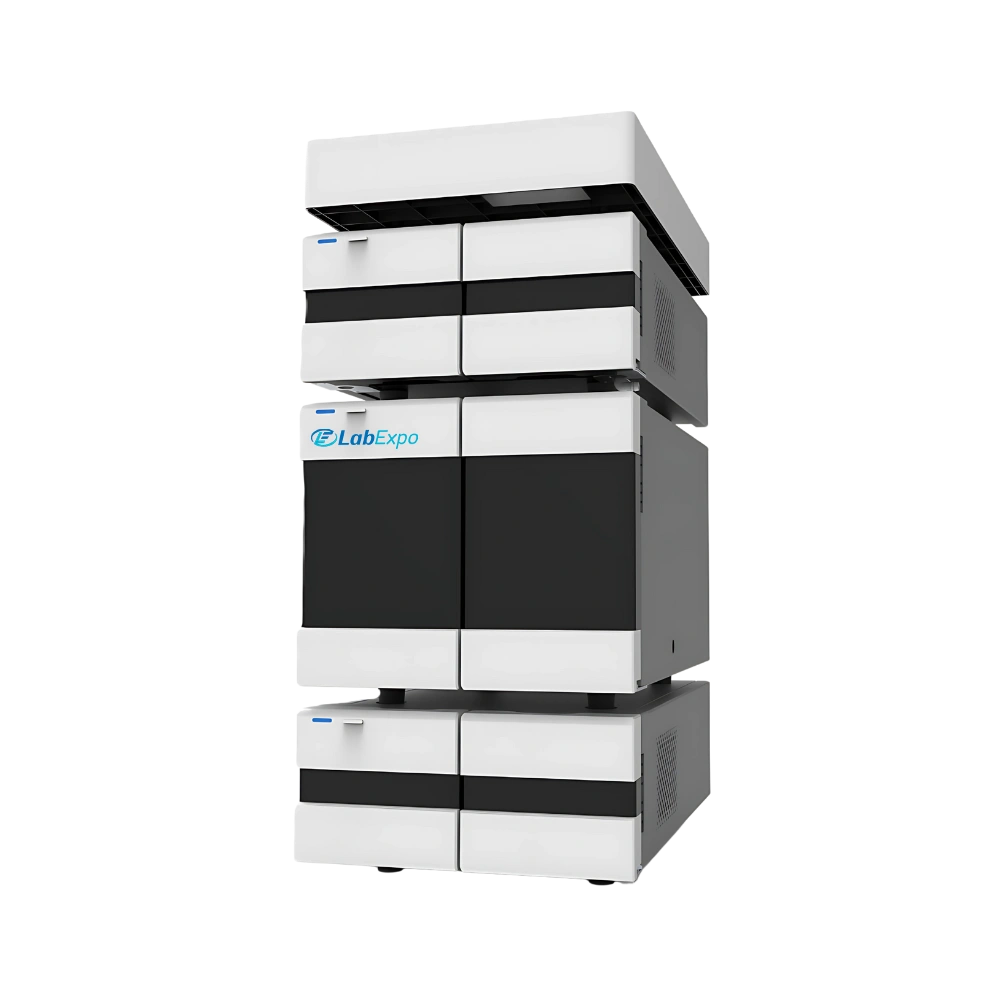

High Performance Liquid Chromatograph LE-HPLC101

High Performance Liquid Chromatograph LE-HPLC101

Name: High Performance Liquid Chromatograph LE-HPLC101
Brand: Labexpo
SKU: LE-HPLC101
Rating: 5.0 (605 reviews)

High Performance Liquid Chromatograph LE-HPLC101 operates at a flow rate of 0.001 to 10.000 mL/min. It offers a wavelength range of 190 to 900 nm for broad-spectrum detection. Equipped with deuterium and tungsten lamp to provide accurate and sensitive analysis. Built-in injection system ensures precise, repeatable sample delivery with multiple injection modes. Our HPLC enables stage-wise temperature control with interval heating and cooling.

Specifications

Pump Type	Four Element Infusion Pump with Double Plunger Reciprocating System
Flow Rate	0.001 to 10.000 mL/min (increment 0.001 mL/min)
Flow Accuracy	±0.5% (at 1 mL/min, water)
Flow Precision	≤0.06% RSD
Pressure Range	0 to 10500 psi (72 MPa)
Gradient Accuracy	±0.5%
Gradient Repeatability	≤0.2% SD
Pressure Pulsation	≤1% (at 1 mL/min, water, >10 MPa)
UV Detector Light Source	Deuterium Lamp, Tungsten Lamp
Wavelength Range	190 to 900 nm
Wavelength Accuracy	±1 nm
Wavelength Precision	±0.1 nm
Noise	±5.0×10⁻⁶ AU (JJG) / ±3.5×10⁻⁶ AU (ASTM)
Baseline Drift	1×10⁻⁴ AU/hr
Linear Range	>5×10⁴ (JJG) / >2.5 AU (ASTM)
Spectral Bandwidth	8 nm
Fluorescence Light Source	150 W Xenon Lamp
Wavelength Range	200–650 nm (up to 900 nm optional)
Detector	PMT
Raman SNR	>1200
ELSD Light Source	650 nm Semiconductor Laser
Evaporation Temperature	Ambient to 130°C
Atomization Temperature	Ambient to 56°C
Min Detection Concentration	<1 ng
Dynamic Range	10⁴
Refractive Index Range	1.00 to 1.75
Detection Range	0.25 to 512 μRIU
Noise	≤5 nRIU
Temperature Control	Off, 30 to 50°C
Column Oven Capacity	Holds ≥4 columns (300 mm)
Temperature Control Range	Ambient +5°C to 85°C
Temperature Accuracy	±1.0°C
Temperature Stability	±0.1°C
Injection Modes	Full loop, Partial loop, μL pickup
Sample Positions	≥108 (1.5 mL vials)
Sample Accuracy	≤0.3% RSD
Sample Residue	<0.0025%
Compliance	FDA 21 CFR Part 11 / GMP / GLP
Environmental Temperature	15 to 35°C
Environmental Humidity	<85%
Power Supply	Single phase 220V ±10% 50/60Hz

Features

Flow rate 0.001 to 10.000 mL/min with ±0.5% accuracy and ≤0.06% RSD
Pressure range up to 10500 psi (72 MPa) with ≤1% pulsation
Wavelength range 190 to 900 nm with ±1 nm accuracy
Deuterium and tungsten lamps with optional fluorescence and ELSD detection
Column oven Ambient +5 C to 85 C with ±0.1 C stability and ≥108 sample positions

Applications

Function	Implementation
Pharmaceutical analysis	High pressure gradient control enables compound separation
Food and environmental testing	Broad wavelength detection supports multi-component screening
Trace compound quantification	Low noise UV detection enhances sensitivity
Complex mixture profiling	Multi-detector compatibility expands analytical capability
Regulatory compliance testing	Supports FDA 21 CFR Part 11, GMP and GLP workflows

Standard Accessories

Software

In-line Mobile phase Degasser

C18-2Pcs

Amino column 1pc

Solvent filter 1pc

Filter head 1pc

Filter membrane 1pc

Catalog

High Performance Liquid Chromatograph LE-HPLC101 Catalog
