High Speed Centrifuge 02A-HSC206
Product1
Product2
Product3

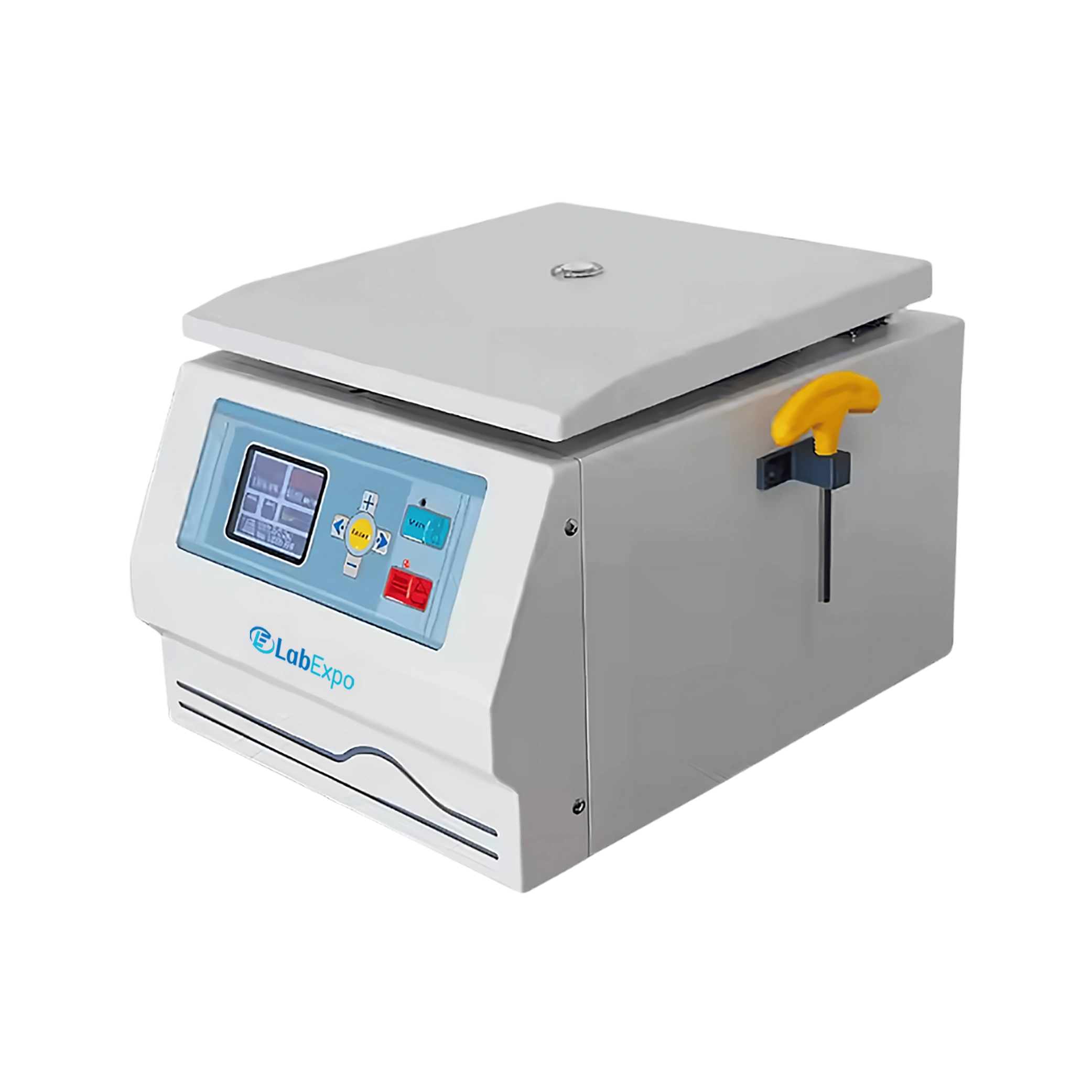

High Speed Centrifuge 02A-HSC206

High Speed Centrifuge 02A-HSC206 offers a maximum speed of 16,500 RPM, allowing for efficient separation of samples. It can accommodate up to 12 tubes of 5 ml each, providing versatility for various applications. Its linear drive centrifuge system ensures precise speed control and enhanced acceleration/deceleration performance for optimal sample processing. Our centrifuge is powered by an AC frequency conversion brushless motor, providing smooth, efficient, and stable operation.

Specifications

Max Speed 16500 rpm
Max RCF 21615 × g
Max Capacity 12× 5 ml
Timer 1 s to 99 h 59 min 59 s
Revolutions/min Accuracy ±10 r/min
Noise Level ≤ 62 dB (A)
Voltage AC 220 ± 22 V, 50 Hz, 10 A
Power 350W
Dimension (W × D × H) 270 × 390 × 240 mm
Weight 21 kg

Features

  • Maximum speed 16 500 rpm generating up to 21 615 × g centrifugal force
  • Capacity for 12 × 5 ml tubes in one run
  • Timer range 1 s to 99 h 59 min 59 s with digital display
  • Speed accuracy ± 10 r/min under microprocessor control
  • Quiet operation ≤ 62 dB with ergonomic low-lid opening design

Applications

FunctionImplementation
Small-volume separationEfficient centrifugation of multiple 5 ml samples
High-force sedimentationRCF suited to dense biological particles
Flexible timingExtended timer accommodating varied protocols
User safetyElectric lid lock with imbalance prevention
Daily lab workflowsCompact, low-noise unit for clinical and research use

Rotor Selection

Type

Capacity (ml)

Max Speed (rpm)

Max RCF (×g)

Angle Rotor 01

16×1.5/2.0ml

16500rpm

20880×g

Angle Rotor 02

12×5ml

16000rpm

17344×g

Angle Rotor 03

24×1.5/2.0ml

15000rpm

21615×g

Angle Rotor 04

4×8×0.2ml PCR Row

15000rpm

14866×g

Angle Rotor 05

8×8×0.2ml PCR Row

14000rpm

15032×g

Angle Rotor 06

Capillary rotor 24 hole

12000rpm

13845×g

Catalog

High Speed Centrifuge 02A-HSC206 Catalog

Related Models Of High Speed Centrifuge

Lab Expo High Speed Centrifuges support rapid separation workflows where high rotational force and precise speed control are required for time-critical processing. This high speed centrifuge machine operates with microprocessor-regulated control and a brushless DC motor to maintain stable RPM and smooth acceleration. Digital monitoring manages speed and time, while auto-electric lid locking, imbalance detection, and overspeed protection ensure controlled, repeatable centrifugation for demanding laboratory use.
