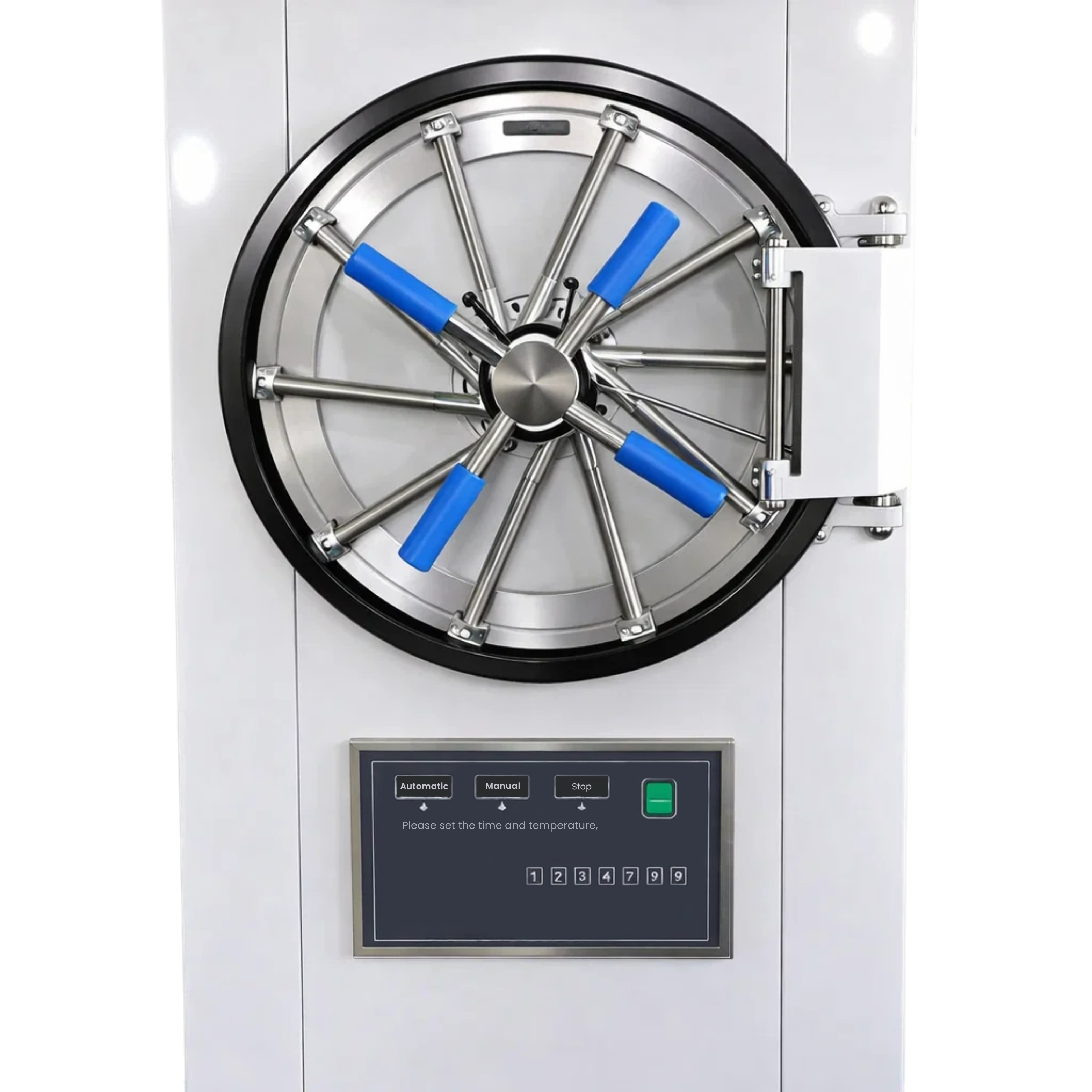

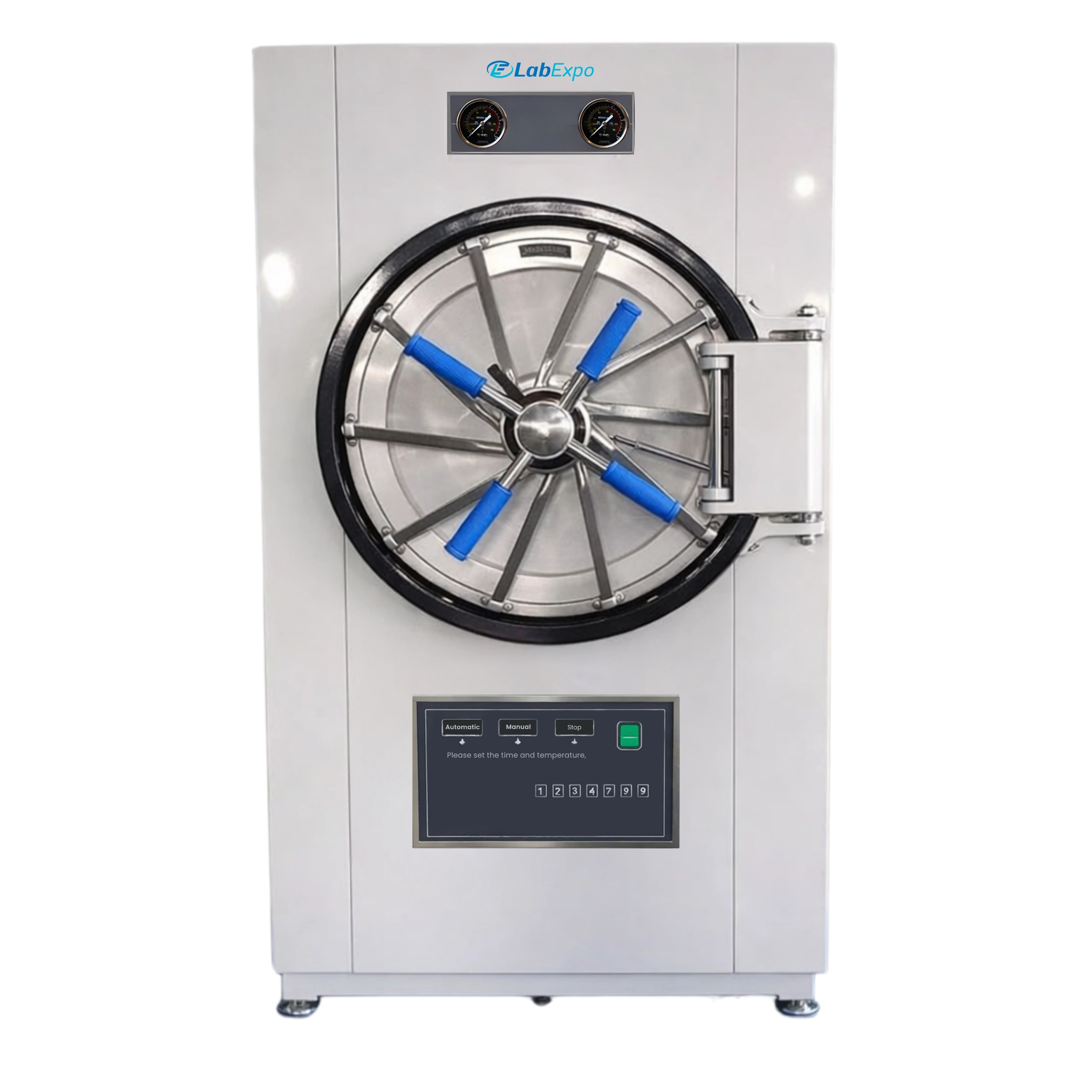

Horizontal Autoclave 26-HAC801

Horizontal Laboratory autoclave is a 200 Liters capacity easy to use front loading microprocessor controlled autoclave, with a sterilizing temperature of 134 °With 0.22 MPa of pressure, these come fitted with safety valve, steam release valve, pressure gauge and drying function. Automatic power and water cut off with an alarming indicator when there is lack of water makes this autoclave safe and reliable to use.

Specifications

Capacity 200 L
Sterilization Temperature 134 °C
Sterilization Pressure 0.22 Mpa
Timer Range 0 - 99 minutes
Heat Average ≤ ± 2 ℃
Chamber Dimensions ( Φ × D ) 515 × 1000 mm
Product Dimension ( L × W × H ) 1400×750×1650mm
Net Weight 350 kg
Gross Weight 436 kg
Power Supply 9 kW / 380 V 50 Hz

Features

  • Operator-facing LCD screen providing clear visibility of cycle progress and key operating parameters
  • Steam sterilization operation maintained at a working pressure of 0.22 MPa for consistent processing
  • High-temperature sterilization cycles reaching up to 134 C to support demanding sterilization tasks
  • Automated drying stage to reduce residual moisture on sterilized loads
  • Self-sealing, pressure-interlocked chamber that prevents door opening until internal pressure drops to 0.027 MPa

Applications

FunctionImplementation
Media SterilizationCulture media used in aseptic preparation
Instrument ProcessingSurgical and laboratory instruments tolerant to heat and pressure
Medical Material HandlingDressings and intravenous equipment
Component SterilizationRubber closures and glass equipment components

Catalog

Horizontal Autoclave 26-HAC801 Catalog

Related Models Of Horizontal Autoclave

Lab Expo Horizontal Autoclaves are applied in high-capacity sterilization workflows where large instrument loads require uniform steam distribution and controlled cycle execution. Each horizontal steam sterilizer operates using pressurized steam and is constructed from stainless steel to support continuous operation and corrosion resistance. Digital control systems regulate temperature, pressure, and cycle parameters, while integrated safety mechanisms support automated operation and controlled processing of large-volume loads.
